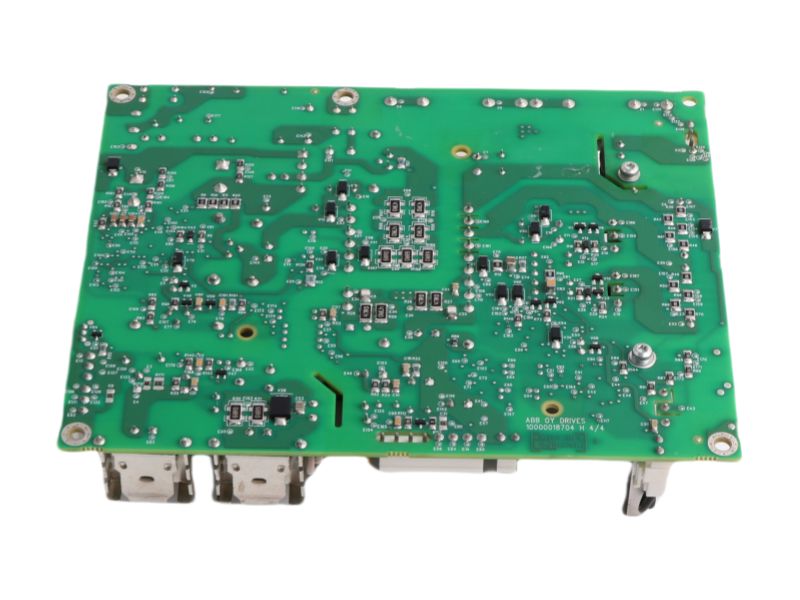

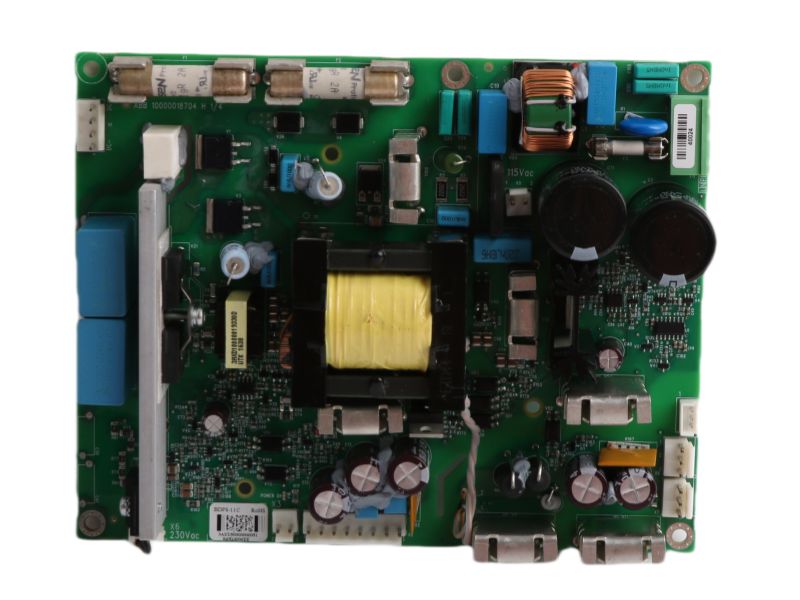

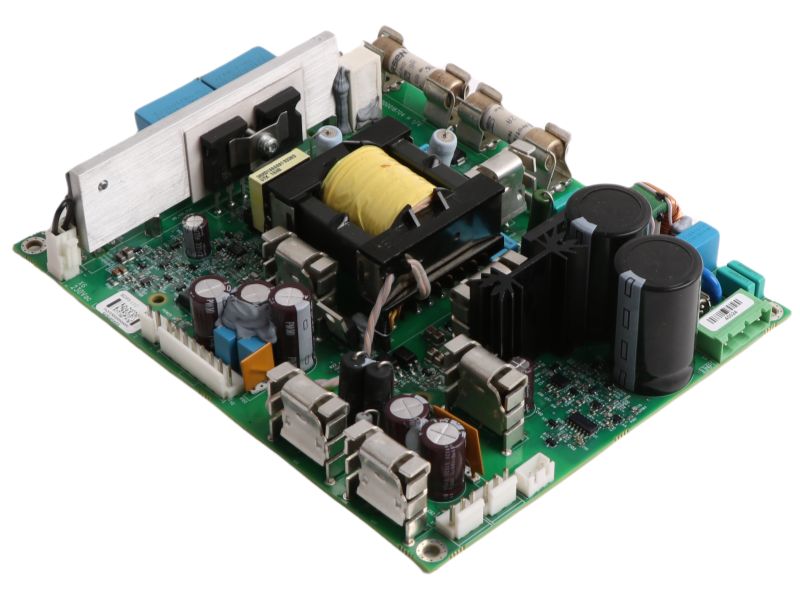

ABB BDFC-01C Fan Control Panel

Inquiry now

BDFC-01C Product datasheet

Model number:	BDFC-01C	Module Type：	Fan Control Panel
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	0.6kg	HS CODE：	8537101190
Dimension:	23.3x18.3x5.3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

BDFC-01C Functional Description

The Fan control board ABB BDFC-01C is a versatile digital frequency converter program used with the ACS880 (frame R8i) converter module hardware. ABB BDFC-01C Fan Control Panel offers high flexibility by allowing several modules to be connected in parallel for increased braking power. The program operates on a type UCU-x2 control unit, ensuring precise and efficient braking control within the drive system.

The DC side of the converter module connects directly to the DC link of the drive, while the AC side phases are connected to a brake resistor. The Frequency Converter Spare Part ABB BDFC-01C control program regulates the pulse length of the upper-leg IGBTs, thereby managing how long the resistors are connected to the DC link. The modulation frequency typically operates at 1 kHz, and the phase shift is maintained at 120 degrees to minimize DC voltage ripple.

The ABB BDFC-01C inverter spare part fan control board continually monitors critical parameters such as phase currents, DC voltage, module temperature, and ambient temperature. This allows the program to efficiently protect the brake unit against various faults, including IGBT short circuits, overcurrent, phase loss, and current asymmetry.

Moreover, the BDFC-01C Electrical Equipment Frequency Converter ABB ensures that the brake system remains reliable and safe by providing protection against DC overvoltage, IGBT overtemperature, module overtemperature, and resistor overtemperature.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	P-HC-BRC-30000000	ABB	CT302A GJR2167200R0001	ABB	CMA35 GVT3605799
ABB	P-HB-IOR-8000N200	ABB	CS513 3BSE000435R1	ABB	CMA137 3DDE300417
ABB	PHARPSPEP11013	ABB	CS31 ICSO08R1 FPR3312101R0024	ABB	BX5001 GNT0156100R1
ABB	NTRO02-A NTRO02	ABB	CS31 FPR3315101R1032	ABB	BSTC176 SE98424140
ABB	NTRO02-A	ABB	CPU86-NDP	ABB	BSM80C-275AFX
ABB	NTRO02 NTRO02-A	ABB	CPM810	ABB	BSFC-02C 3AXD50000011461
ABB	DP820 3BSE013228R1	ABB	CP-A CM 1SVR427075R0000	ABB	BRC300 P-HC-BRC-30000000
ABB	DP620 3BHT300016R1	ABB	CP651 1SAP551100R0001	ABB	BRC300 PHCBRC30000000
ABB	DP620 3BHE300016R1	ABB	CP502 1SBP260190R1001-A	ABB	BP910S 3KDE175831L9100
ABB	DO890 3BSC690074R1	ABB	CP420B 1SBP260182R1001	ABB	BCU-22 3AUA0000110431

Fan Control Panel

A Fan Control Panel is an essential component in industrial and commercial applications, used to regulate and monitor the operation of fans within ventilation, cooling, and air circulation systems. These panels are designed to control the speed, direction, and operation of the fan motors, ensuring optimal airflow and energy efficiency. Fan Control Panels are equipped with features such as variable frequency drives (VFDs) to adjust fan speed based on system requirements, helping to reduce power consumption and minimize wear on the equipment.

In addition to fan speed control, Fan Control Panels often include overload protection, fault detection, and system status indicators, ensuring the safe operation of the fan system. They are widely used in HVAC systems, power plants, data centers, and manufacturing facilities, providing reliable fan control for maintaining proper environmental conditions. The panels are designed for ease of use, often featuring user-friendly interfaces and real-time monitoring for seamless operation.
