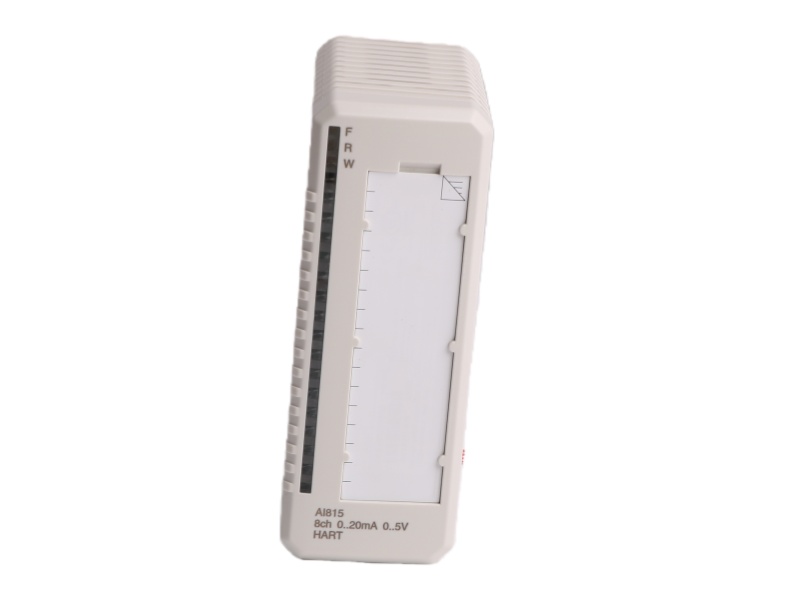

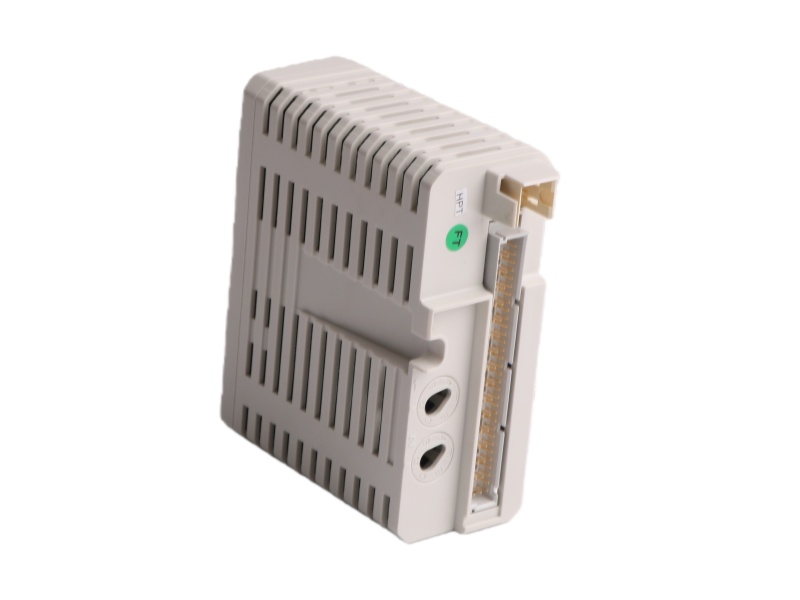

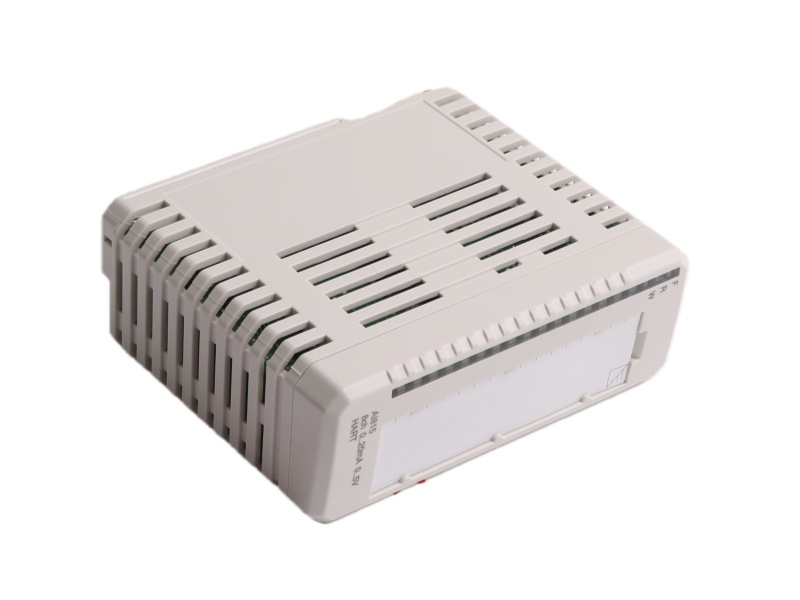

ABB AI815 3BSE052604R1 Analog Input Unit

Inquiry now

AI815 3BSE052604R1 Product datasheet

Model number:	AI815 3BSE052604R1	Module Type：	Analog Input Unit
Manufacture:	ABB	Condition：	Brand New
Range of Product:	Advant OCS and Advant-800xA	Lead time：	In Stock
Weight:	1.22 kg	HS CODE：	8537101190
Dimension:	24x19x5.3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

AI815 3BSE052604R1 Functional Description

The S800 I/o Analog Input Module ABB AI815 3BSE052604R1 is an advanced analog input module designed for industrial automation systems. This versatile module provides eight independent channels for precise signal acquisition, making the module essential for various process monitoring applications. Its technical specifications demonstrate why the module delivers superior performance in demanding industrial environments.

A key feature of the Analog Input Unit ABB AI815 3BSE052604R1 is its flexible input capability, supporting both current and voltage signals including 0-20 mA, 4-20 mA, 0-5V, and 1-5V ranges. The module offers 12-bit resolution, ensuring high measurement accuracy for each channel. The ABB AI815 3BSE052604R1 also incorporates current-limited transmitter power supply on every channel, providing built-in protection for connected field devices.

The ABB Advant OCS and Advant-800xA AI815 3BSE052604R1 supports HART communication protocol pass-through, enabling advanced device configuration and diagnostics while maintaining analog signal integrity. This functionality makes the AI815 3BSE052604R1 ABB particularly valuable in modern industrial plants utilizing smart instrumentation. All eight channels are configured as a single group that is electrically isolated from ground, enhancing noise immunity and measurement reliability.

For proper installation, the ABB AI815 Analog Input Unit requires compatible module termination units such as TU810, TU812, or TU814 series. This modular approach ensures the module can be seamlessly integrated into existing S800 I/O systems, providing a reliable solution for analog signal conditioning in distributed control applications across various industries including oil and gas, chemical processing, and power generation.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	07PS62R2	ABB	086351-004	ABB	086387-001
ABB	07SK90R1	ABB	086362-001	ABB	08644-005
ABB	07ZE61R302 GJV3074321R302	ABB	086363-001	ABB	086444-005
ABB	07ZE63R302	ABB	086363-002	ABB	087629-001
ABB	086329-003	ABB	086363-002 OSPS2	ABB	0G0010.00-090
ABB	086329-004	ABB	086364-001	ABB	170M6467 3AUA0000062487
ABB	086339-001	ABB	086369-001	ABB	1948013A1
ABB	086348-001	ABB	086370-001	ABB	1948021A1
ABB	086349-002	ABB	086372-001	ABB	1948022A1
ABB	086351-001	ABB	086384-003	ABB	1948024G1

AI815 Compact Product Suite hardware selector

The AI815 Analog Input Module has 8 channels. The modules can be configured for voltage or current inputs. Current and voltage signals cannot be mixed on the same I/O module. The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c.

The input resistance for voltage input is greater than 10 M ohm, and the input resistance for current input is 250 ohm. The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power issupervised and current limited. If an external power supply is used for feeding HART transmitters, the power supply must be HART compatible.
