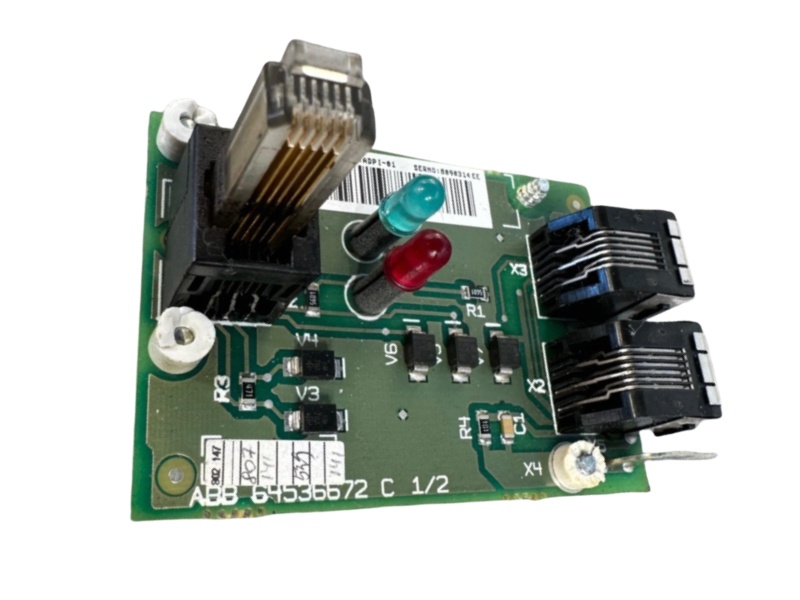

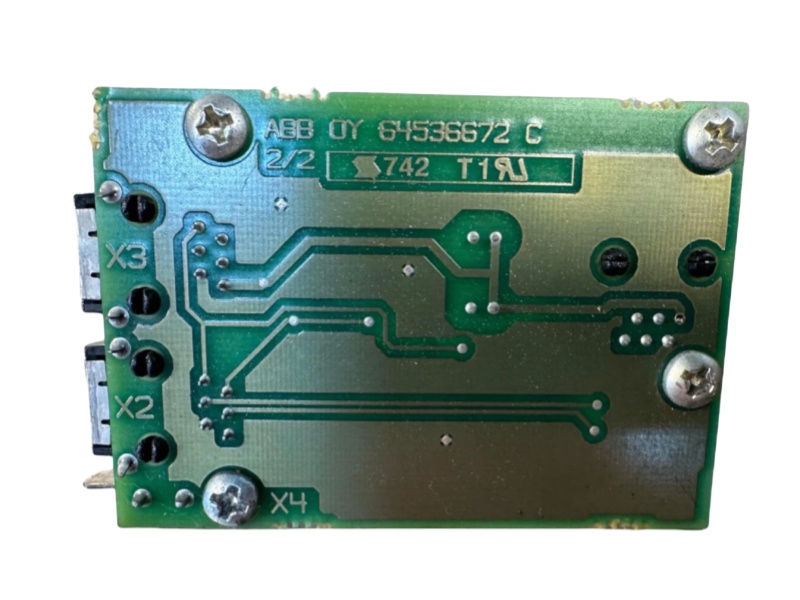

The ABB ACS800 Interface Board ADPI-01 is a robust panel interface module designed for seamless integration into demanding industrial environments. Built by ABB in Sweden and shipped from Xiamen, China, it plays a critical role in various process automation applications, including power generation, oil and gas, chemical processing, and advanced manufacturing systems. With its compact form factor and solid design, the ABB ADPI-01 Panel Interface offers a dependable solution for modern control architectures.

Engineered with practical specifications, the ADPI-01 PANEL INTERFACE BOARD operates on a 24V DC power supply, with a typical power consumption of just 15W, making it energy-efficient for continuous operation. It supports an input voltage range from 18 to 30V DC (±10%), providing flexibility in diverse installations. Isolation of 500V AC between ports and power ensures electrical safety and long-term reliability, even in harsh environments.

The Interface Board ADPI-01 ABB boasts impressive environmental capabilities, functioning reliably within an operating temperature range of 0°C to +60°C (32°F to 140°F) and tolerating relative humidity levels of 5–95% non-condensing. With dimensions of approximately 2 x 25 x 24.5 cm and a lightweight build of 0.34 kg, it is straightforward to install in tight control cabinets while maintaining excellent accessibility for maintenance.

Overall, the ABB ADPI-01 delivers a high-quality interface solution for industrial control panels. Whether paired with systems like the DeltaV™ distributed control system or integrated into standalone applications, the PANEL INTERFACE ADPI-01 ABB ensures stable communication, effective signal handling, and robust protection, meeting the rigorous demands of today’s automation landscapes.
