ACS880-01-072A-3 3AUA0000108022 Overview

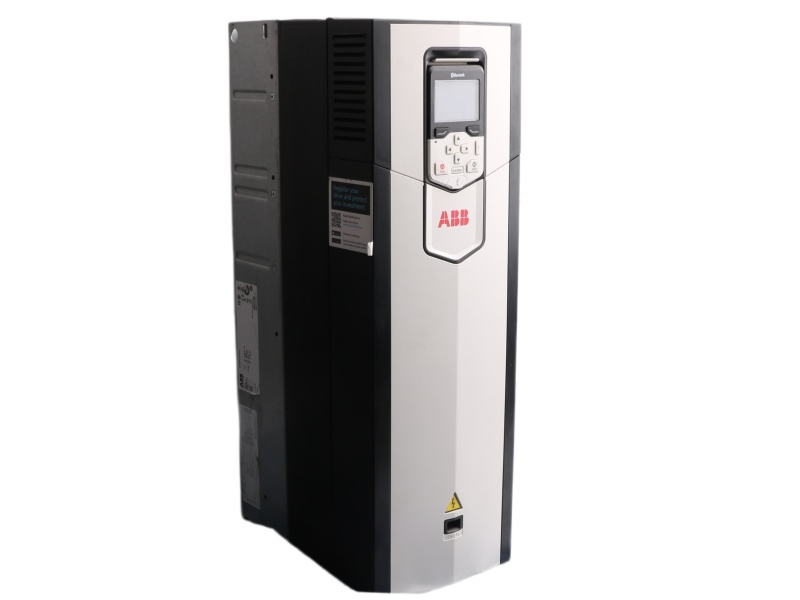

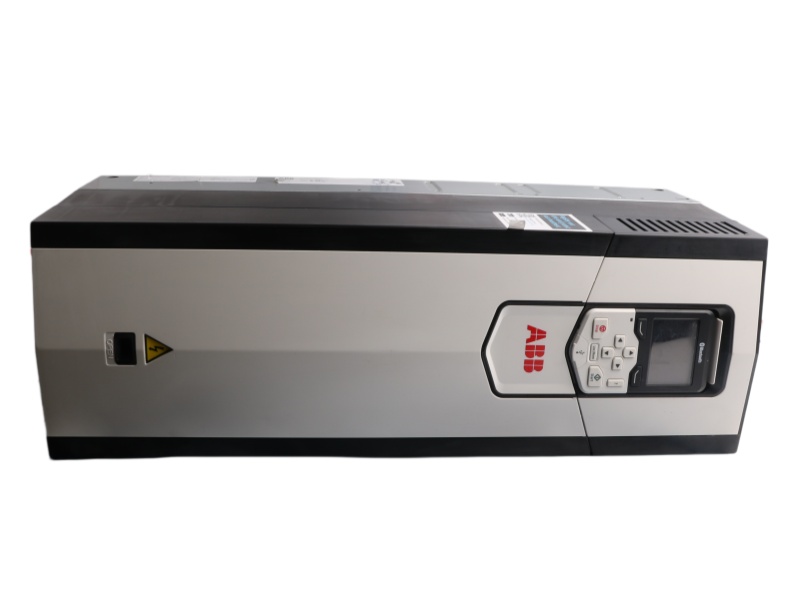

The ABB ACS880-01-072A-3 3AUA0000108022 AC Drive is a 37kW, 72A industrial wall-mounted drive for applications like pumps and fans. It features a compact design, built-in harmonic filtering, and versatile industrial application support.

Features and benefits

Power & Performance: 37 kW rated power with 72 A output current for demanding industrial applications

Compact Design: Wall-mounted installation with dimensions 732mm height, 203mm width, 274mm depth

Lightweight Construction: Net weight of 22.8 kg for easy handling and installation

Built-in Features: Standard choke for harmonic filtering plus options for brake chopper and EMC filter

Application Versatility: Controls cranes, conveyors, mixers, compressors, pumps, fans, and more

Industry Support: Suitable for oil and gas, mining, metals, water treatment, and automotive sectors

FAQ

Q1. What is the power rating and current of ACS880-01-072A-3?

A1. Pn 37 kW, 72 A, 400 V.

Q2. What is the standard mounting type?

A2. Standard wall-mounted, cabinet installation is optional.

Q3. What is the net weight of the drive?

A3. Product net weight is 22.8 kg.

Q4. What are the main applications?

A4. Used for cranes, conveyors, pumps, fans, mixers, extruders and other industrial equipment.

Q5. What built-in and optional features does it have?

A5. Standard harmonic choke; options include brake chopper, EMC filter, communication adapters and I/O extensions.
