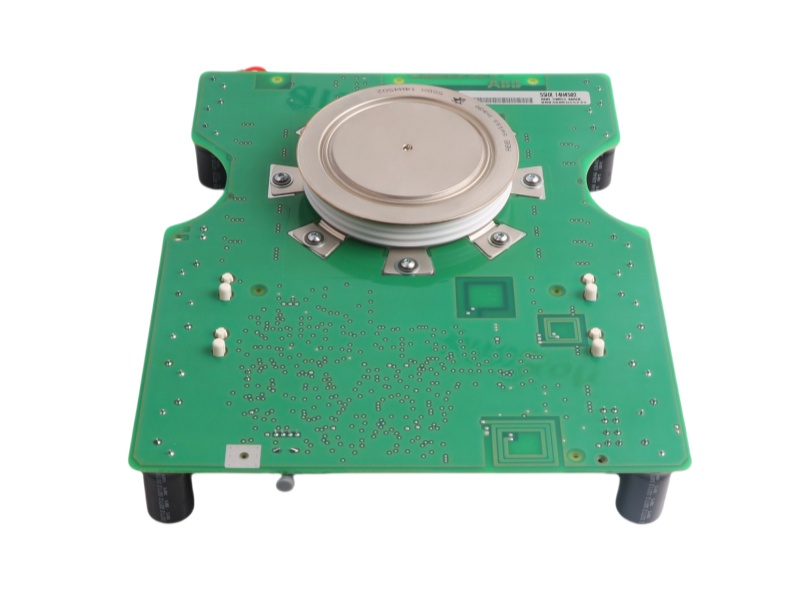

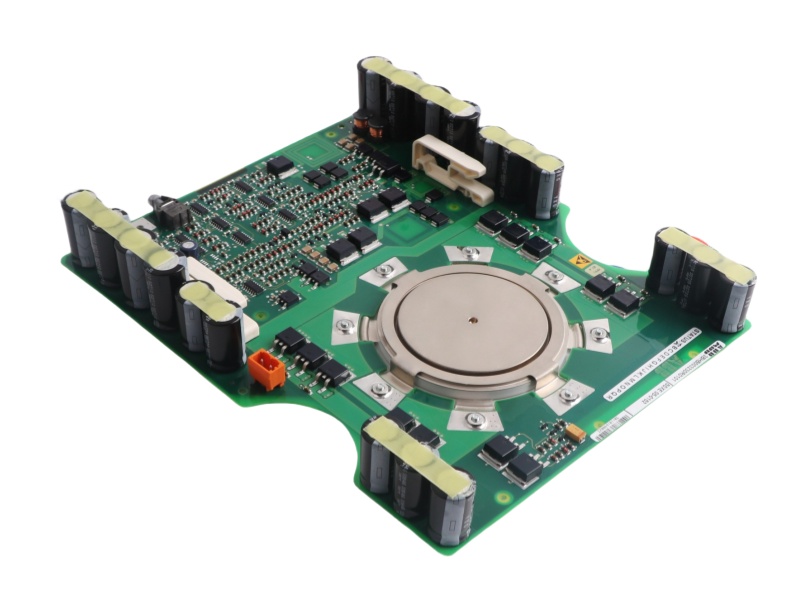

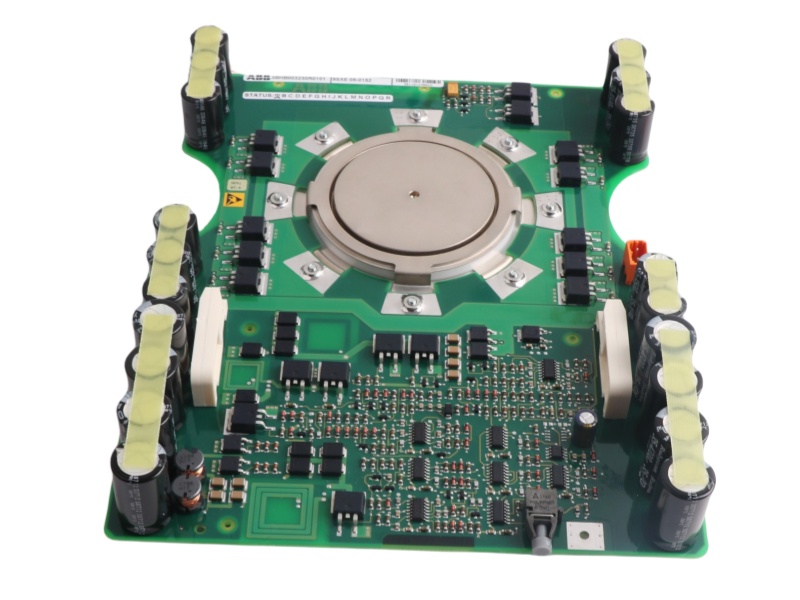

ABB 3BHL000392R0101 5SHX1060H0001 IGCT Board

Inquiry now

3BHL000392R0101 5SHX1060H0001 Product datasheet

Model number:	3BHL000392R0101 5SHX1060H0001	Module Type：	IGCT Board
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1.22 kg	HS CODE：	8537101190
Dimension:	24x19x5.3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

3BHL000392R0101 5SHX1060H0001 Functional Description

The ABB 3BHL000392R0101 5SHX1060H0001 IGCT Board is a robust industrial control module designed for demanding automation applications. Featuring impressive electrical specifications including a +20V ±5% turn-on pulse with 500A peak capacity and a -20V turn-off plateau, this module ensures reliable switching performance. With exceptional di/dt tolerance exceeding 2kA/µs during turn-off and energy efficiency below 3mJ/cycle, the ABB 3BHL000392R0101 delivers precision control for high-power industrial systems.

Engineered for extreme environments, the 3BHL000392R0101 5SHX1060H0001 ABB IGCT PLC Module operates flawlessly across a wide temperature range from -40°C to +85°C. The module incorporates sophisticated stored charge extraction (≥100µC) and maintains tight ±30ns jitter tolerance, making it ideal for time-critical automation processes. Its +24V DC logic input with 200mA current ensures stable operation in complex industrial networks where the ABB 3BHL000392R0101 serves as the central control hub.

As the "BIG BOSS" of the control system, the Module Control Card ABB 5SHX1060H0001 performs high-level decision making and motion planning. The module works in conjunction with specialized robot computers (servo and I/O control) and supports configurable memory options (4MB/6MB RAM). Built-in safety circuits including dual Run Chain protection and motor temperature monitoring make the IGBT Modules 3BHL000392R0101 5SHX1060H0001 ABB a comprehensive solution for industrial automation.

The ABB 3BHL000392R0101 5SHX1060H0001 IGBT PLC Module incorporates intelligent battery backup with dual 3.6V lithium batteries for uninterrupted operation. This redundant power solution, combined with the module's robust sensor inputs and safety circuits, ensures maximum system uptime. Whether controlling robotic systems or managing complex industrial processes, it delivers unmatched reliability and performance in demanding automation environments.
