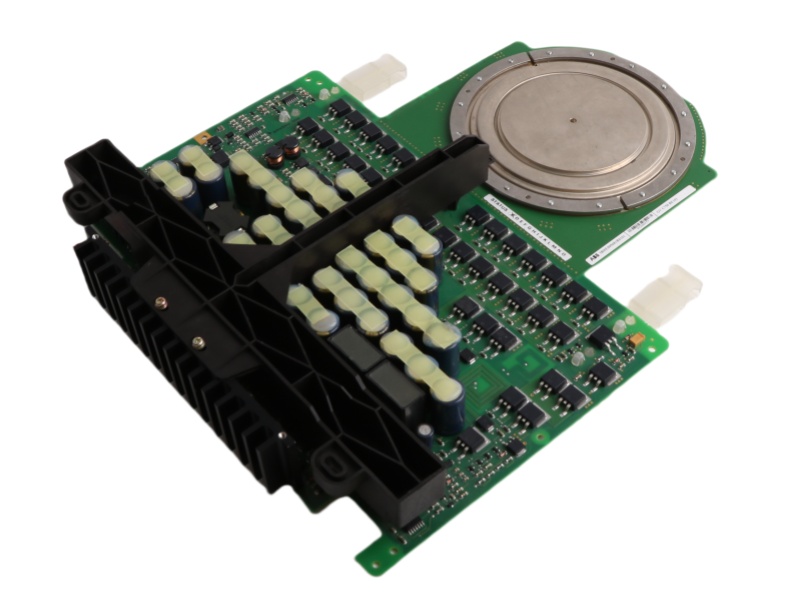

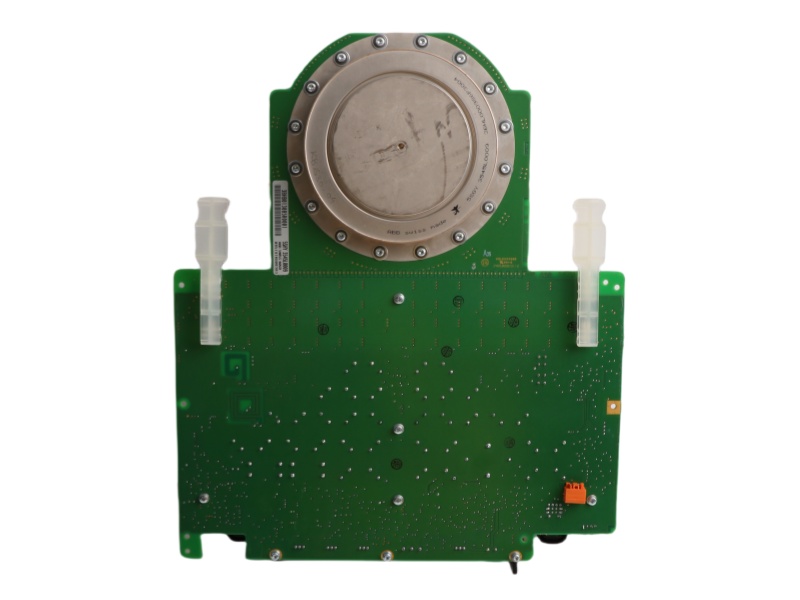

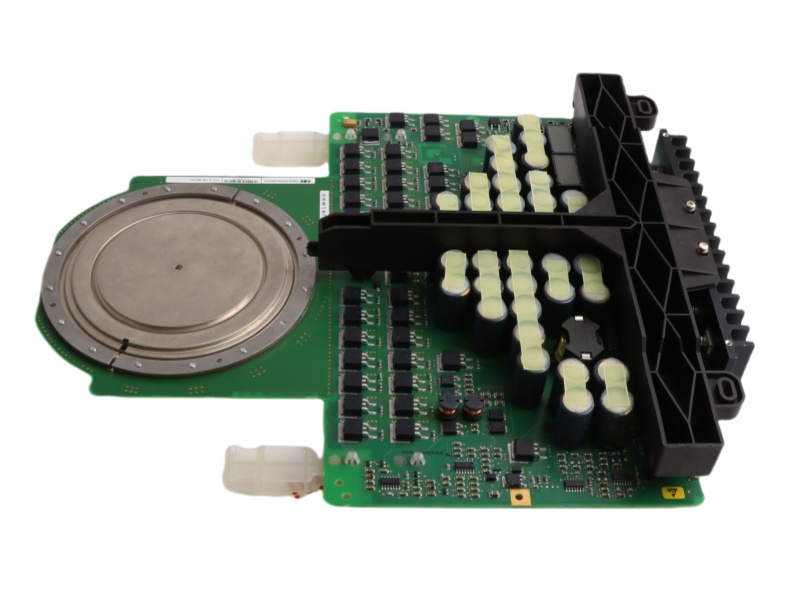

ABB 3BHB013088R0001 5SHY3545L0010 IGCT Module

Inquiry now

3BHB013088R0001 5SHY3545L0010 Product datasheet

Model number:	3BHB013088R0001 5SHY3545L0010	Module Type：	IGCT Module
Manufacture:	ABB	Condition：	Brand New
Range of Product:	Advant OCS/800xA	Lead time：	In Stock
Weight:	2.66 kg	HS CODE：	8537101190
Dimension:	35x29x6cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

3BHB013088R0001 5SHY3545L0010 Functional Description

The high-power integrated gate-commutated thyristor module 3BHB013088R0001 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial applications. With a nominal voltage of 4500V and a current rating of 3500A, it is widely used in HVDC transmission, variable frequency drives (VFDs), static var compensators (SVCs), and soft-start systems. Its fast switching capability (turn-on/off times of 1.5μs) and low switching losses make it ideal for high-efficiency power conversion.

The 3BHB013088R0001 5SHY3545L0010 in stock features a low on-state voltage drop (2.5V) and minimal off-state leakage current (10mA), ensuring energy efficiency. The ABB 3BHB013088R0001 5SHY3545L0010 IGCT Module supports a peak surge current of 30kA (1ms) and a critical di/dt of 1000A/μs, providing robust performance under transient conditions. The integrated gate driver simplifies system design while maintaining high reliability.

Engineered for high-power applications, the ABB 5SHY3545L0010 Controller Module operates at a maximum junction temperature of 125°C, ensuring stability in harsh environments. Its non-repetitive blocking voltage (4500V) and high surge current capability enhance durability in fault conditions. The gate trigger voltage (1.5-2.5V) and peak gate current (50A) ensure precise control during switching.

The IGCT Module 3BHB013088R0001 5SHY3545L0010 is optimized for medium-voltage drives, FACTS (Flexible AC Transmission Systems), and industrial power electronics. Its compact design, integrated gate driver, and high power density reduce system complexity while improving efficiency. This IGCT module is a reliable solution for modern power systems requiring high switching speeds, low losses, and long-term stability.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	YPP109A YT204001-HS	ABB	YPC104B YT204001-BT	ABB	GDC806B01 3BHE036290R0001
ABB	YPN107A YT204001-DM	ABB	FENA-21 3AUA0000089108	ABB	HAC807B102 3BHE039221R0102
ABB	IDS-DTU51	ABB	XZC827A102 3BHE038368R0102	ABB	GDC806C4002 3BHE044249R4002
ABB	YPP109A YT204001-DL/YPN106A YT204001-BD	ABB	XVC772A102 3BHE032285R0102	ABB	3BHB003386R0101 5SXE05-0153
ABB	3BHE044481R0101	ABB	GCC960C103 3BHE033067R0103	ABB	IMASI02
ABB	FENA-21	ABB	GCC960C102 3BHE033067R0102	ABB	IIMSM01
ABB	216NG62A HESG441634R1	ABB	XZC825A102 3BHE036346R0102	ABB	IIMCL01
ABB	YPQ101E YT204001-FS	ABB	GDC806C0003 3BHE044249R0003	ABB	IEPAF02
ABB	YPK107E 3ASD489301A410	ABB	XZC826A102 3BHE036348R0102	ABB	IEMMU11
ABB	YPK107E YT204001-FY	ABB	GDC806A2002 3BHE028761R2002	ABB	086351-004

Thermal Characteristics of IGCT During Turn-Off

The IGCT efficiently dissipates heat during turn-off by distributing thermal energy uniformly across the entire device, eliminating localized hotspots and preventing thermal memory effects. This means its performance is solely constrained by the virtual junction temperature and overall thermal budget, rather than residual heat accumulation. Due to the lower effective thermal capacitance under short-duration pulses, the IGCT can handle high-frequency switching bursts without significant temperature spikes. For instance, it can reliably manage a 10-pulse sequence at 25 kHz with a 25% duty cycle (10 µs on, 30 µs off), demonstrating its capability for transient high-frequency operation while maintaining thermal stability. This characteristic makes the IGCT particularly suitable for applications requiring intermittent high-power switching without the risk of overheating.
