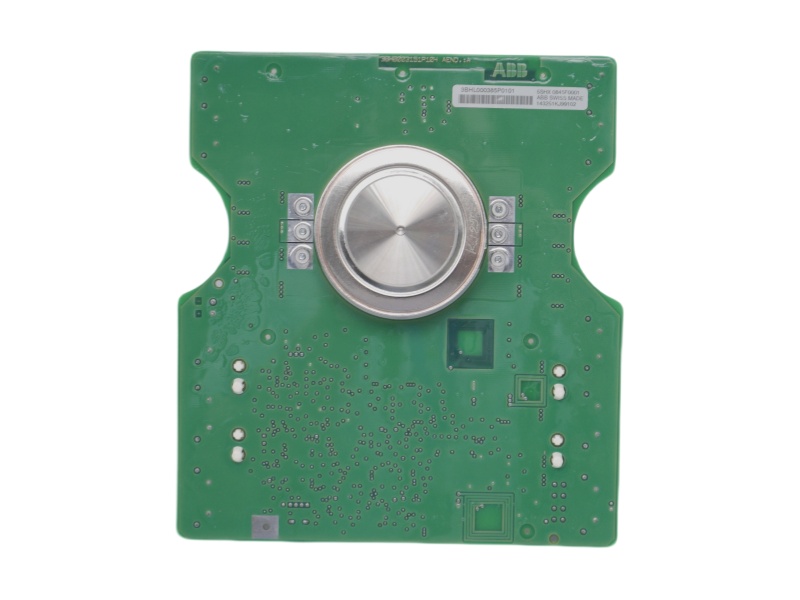

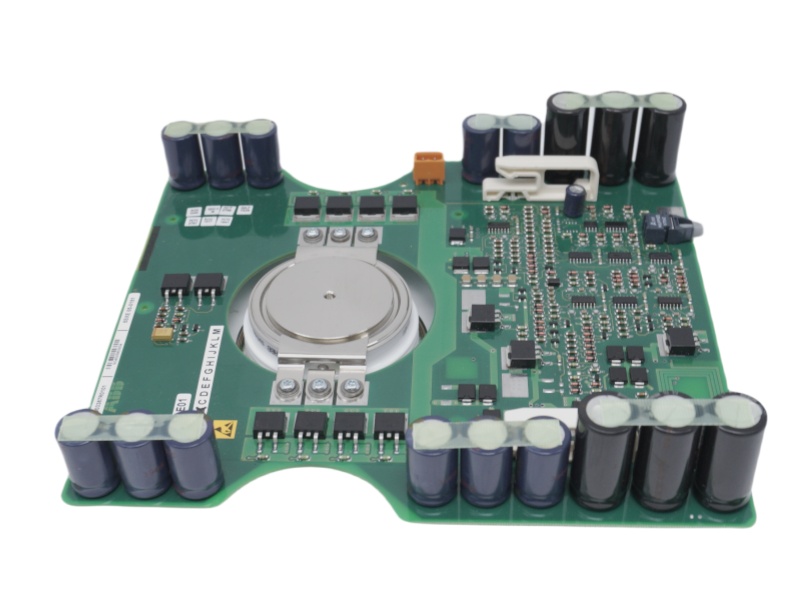

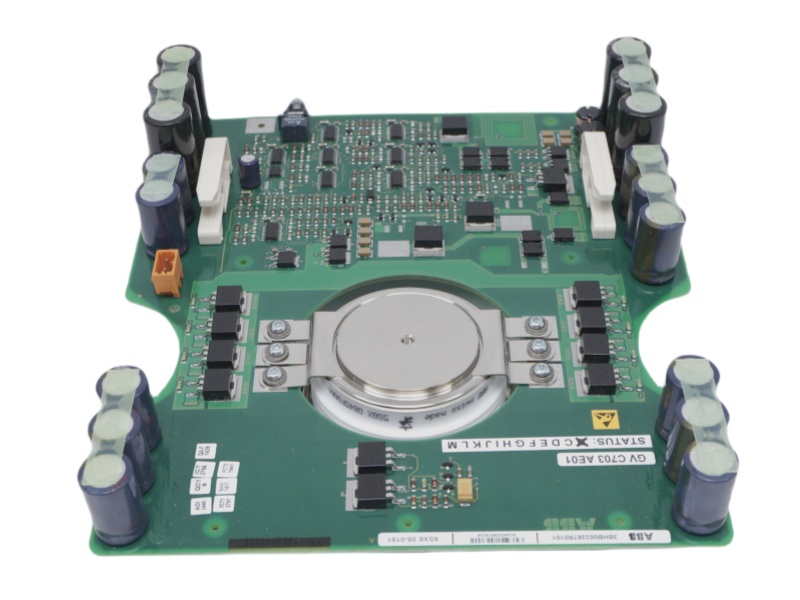

The ABB 3BHB003386R0101 5SXE05-0153 IGCT Module is a high-power semiconductor module designed for demanding industrial applications, featuring a 6.5kV AC/DC voltage class and exceptional 5,150 A RMS continuous anode current capacity. This robust module delivers superior performance in high-voltage power conversion systems, with an impressive surge current handling of 45 kA peak (10ms pulse), making it ideal for critical power infrastructure and heavy industrial drives.

The Power Module 3BHB003386R0101 5SXE05-0153 achieves turn-off times under 4.5 μs, ensuring efficient power control in dynamic applications. Its advanced gate drive system operates within a wide -18V to +22V range with ±200A capacity, providing precise control over switching characteristics. The module's sophisticated design minimizes energy losses while maintaining stability under extreme electrical stresses.

The Advant OCS/800xA 3BHB003386R0101 5SXE05-0153 demonstrates remarkable environmental resilience, with an operational storage temperature range from -40℃ to +100℃. This thermal performance, combined with its rugged construction, ensures reliable operation in harsh industrial environments where temperature fluctuations and mechanical stresses are common challenges.

The Controller Modules 3BHB003386R0101 5SXE05-0153 ABB represents ABB's commitment to pushing the boundaries of power semiconductor technology, delivering both performance and reliability in mission-critical applications where power quality and system uptime are paramount.
