Exact order-code retention with official board-family compatibility context

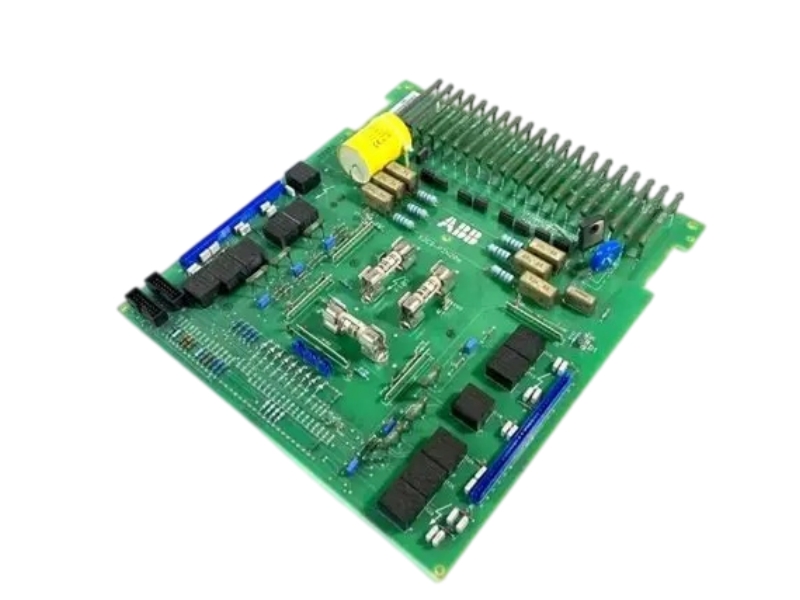

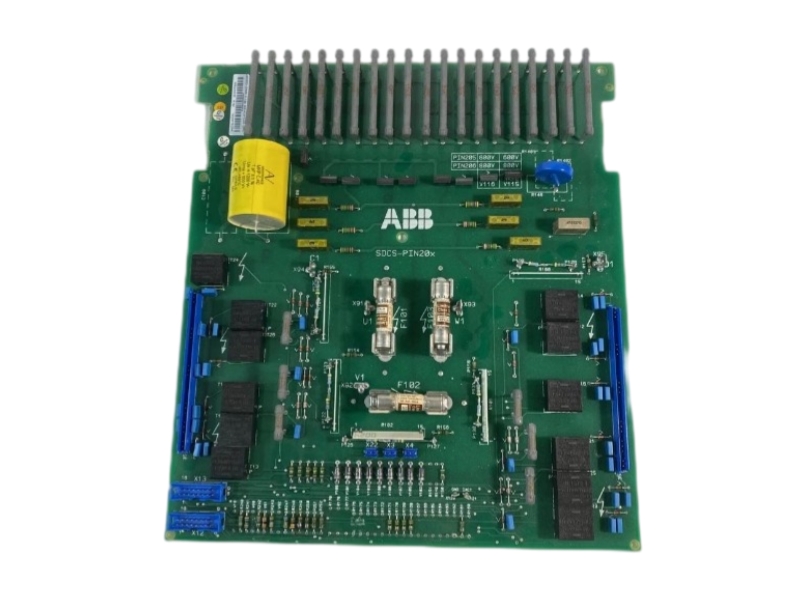

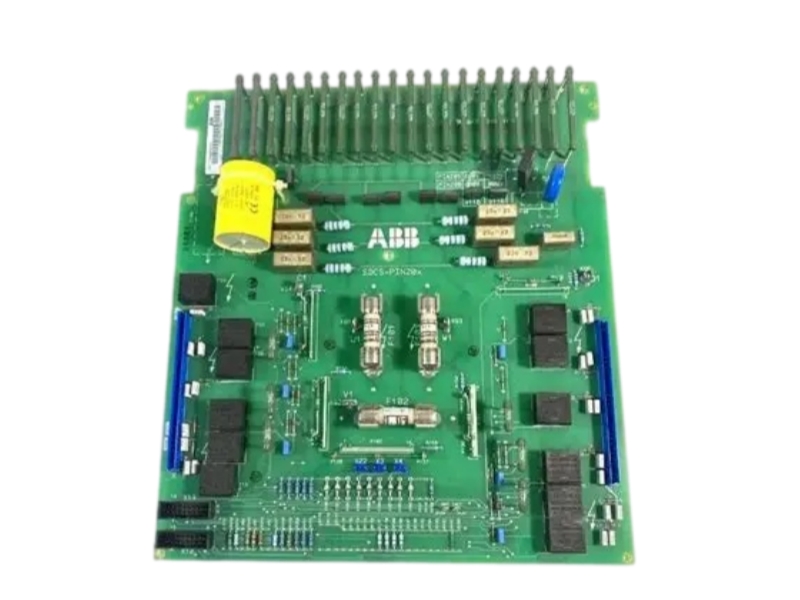

ABB 3ADT310500R0102 is retained exactly as supplied for drive-board identification and procurement review. ABB official DCS 500 and DCS 600 service documentation confirms the SDCS-PIN-205A and SDCS-PIN-205 board family and documents defined converter-current and replacement conditions, but the exact mapping of this complete order code to that board family was not located in the official material reviewed. For that reason, this page does not assign unverified electrical ratings or lifecycle status. Before ordering, compare the complete label, board designation, converter type, current and voltage class, serial conditions, RC network, connector arrangement, installed revision, cabinet position and packaging photographs.
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Use the complete supplied order code together with the installed board label and converter data. Family-level compatibility does not establish exact-code interchangeability.
| Manufacturer | ABB |
| Complete Part Number | 3ADT310500R0102 |
| Product Type | DCS drive board |
| Closest Officially Confirmed Board Family | SDCS-PIN-205A / SDCS-PIN-205 |
| Official Document Scope | DCS 500 / DCS 600 service manual |
| Verified Family Compatibility | 100-350 A and 405-520 A at 400/500 V |
| Conditional Family Use | Selected 700 A, 400/500 V, type C2 with documented conditions |
| Documented Exclusion | 610-1000 A type C2b requires SDCS-PIN-205B |
| Replacement Hierarchy | 205B replaces 205A and 205; 205A replaces 205, not vice versa |
| Exact Code Mapping | Not confirmed in the reviewed ABB official material |
| Country of Origin | SWEDEN |
| Official Family Context | SDCS-PIN-205A/205 in ABB DCS 500 and DCS 600 service documentation. |
| Typical Use | Drive maintenance and board replacement review using converter and label evidence. |
| Engineering Check | Confirm exact board designation, converter type, current class, voltage class, serial conditions and RC network. |
No official lifecycle designation for the exact order code 3ADT310500R0102 was located in the reviewed ABB material. The official manual provides board-family service context only, so this page does not assign a lifecycle status or claim exact interchangeability.
It is the supplied ABB order code retained for exact label and procurement matching.
The exact mapping was not located in the reviewed ABB documentation; the stated compatibility belongs to the confirmed board family.
The official manual includes 100-350 A and 405-520 A converters at 400/500 V, with separate conditions for selected 700 A units.
No. The documented hierarchy allows 205B to replace earlier versions; 205A does not replace 205B.
No lifecycle status is assigned without exact-code evidence from ABB.
Photograph the complete order code, board designation, revision, converter label, connectors, installed position and packaging.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Documentation, inspection and logistics support for ABB DCS drive boards.
Our review begins with the complete order code, suffix, hardware label and the installed-system context. Official product documentation is used to separate confirmed specifications from assumptions.
Project files, connector details and replacement objectives should be supplied whenever configuration-sensitive hardware is involved.
Requested inspection evidence can include full-product views, readable nameplates, connector close-ups, revision markings and packaging condition.
These records support identity and visible-condition checks but do not replace an engineering compatibility assessment.
After order review, the team coordinates protective packaging, accessories, shipping documents and tracking information for the selected destination.
Quantity, delivery address and any inspection-document requirements should be confirmed before dispatch arrangements are prepared.
The following checks are especially important for ABB DCS drive-board identification support:
| Identity Review | Complete supplied order code, ABB board designation, revision and serial label. |
| Converter Review | Installed converter type, current class, voltage class and cabinet position. |
| Board Review | Connector arrangement, RC network, visible components and replacement hierarchy. |
| Evidence Boundary | Exact-code mapping must be supported by matching product-label and installed-system evidence. |
Send the exact part number, required quantity, destination country and clear label photos.
Compare hardware revision, connectors, supply, project parameters and mounting details.
Review inspection evidence, included accessories, packaging method and delivery information.
Provide the full part number, quantity, destination country, installed-system details, replacement objective and clear product-label photos. This information helps the team review availability, visible condition, compatibility requirements and shipping options.
