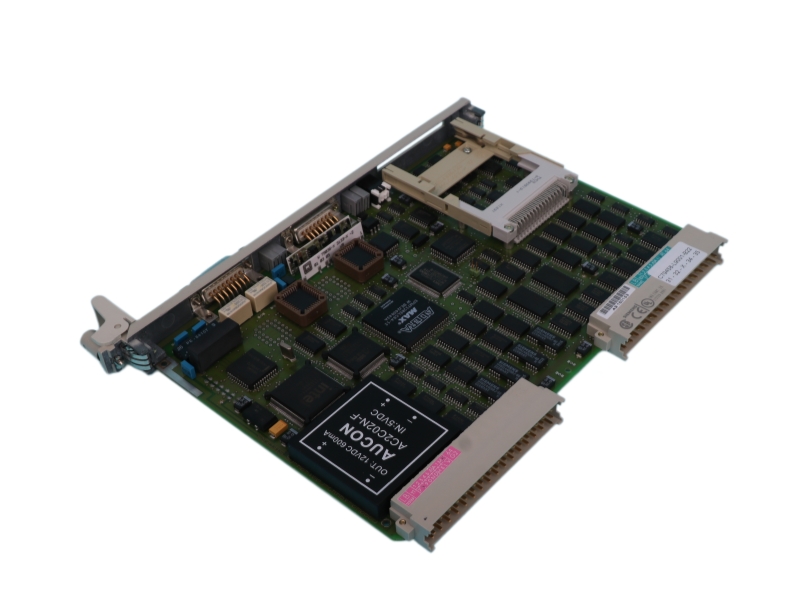

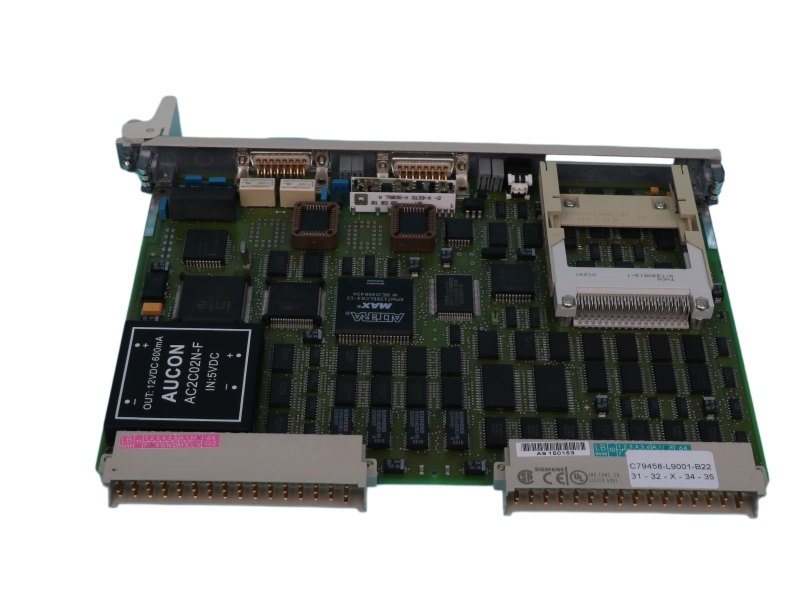

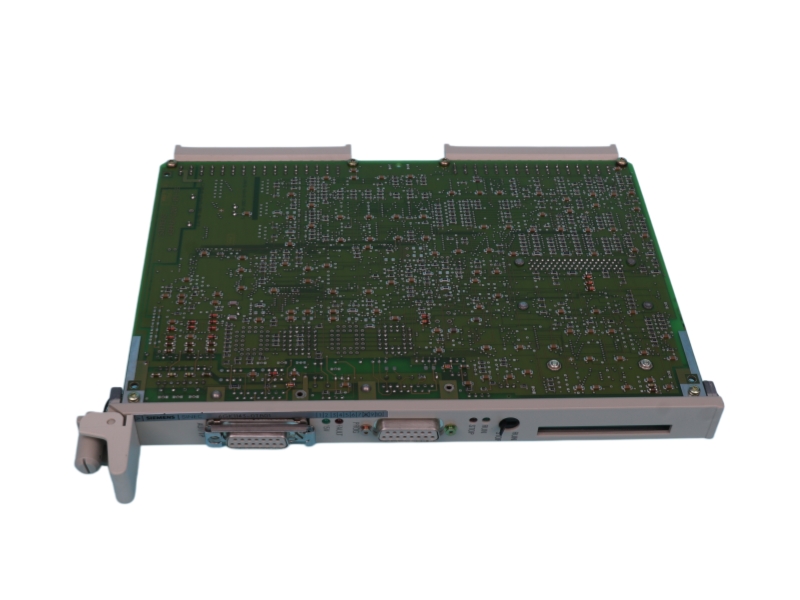

Features and Benefits

• Full Industrial Services: Supports Variable, Domain, and Program Invocation (PI) services identical to legacy systems for total plant floor monitoring.
• NCM Shell Integration: Configured easily via the standard NCM COM 1430 TF interface tool to streamline database creation and path testing.
• Large Connection Capability: The EXTENDED variant handles high volume industrial connections stably without the connection drops seen in base models.
• Standard-Compliant Handshaking: Sends immediate standard credit parameters in connect confirmation frames to allow instant data throughput.
• Rugged Cabinet Protection: Meets stringent European industrial EMC emission and immunity criteria when mounted in grounded metal enclosures.

System Compatibility and Alternatives

• System Compatibility:
  Fully compatible with SIMATIC S5-115U (using CPU 942 to 944), S5-135U (using CPU 922/928), and S5-155U (using CPU 946 to 948) programmable logic controllers. Integrates natively with industrial transceiver units via the AUI/V.24 interface using appropriate adapter cables.
• Alternative Model:
  6GK1143-0TA00, 6GK1143-0TA01, 6GK1143-0TA02 (CP 1430 BASIC variants), or legacy CP 143 models.
• Difference from Alternative Model:
  The 6GK1143-0TB01 is an EXTENDED variant running advanced firmware (such as FW V3.04E/V3.06E) that supports complex layer 7 services. Unlike early BASIC hardware iterations which cap reliability or face sporadic connection aborts when running over 25 heavy transport connections, this EXTENDED model handles large data frames and high traffic volumes smoothly without requiring immediate program retries.

Theory of Operation

The 6GK1143-0TB01 functions as an intelligent interface processor that offloads network management tasks from the central S5 CPU. It manages industrial data transport layers by executing standardized protocol stacks directly on the board. When an association is established, the module transmits definitive flow control credits to prepare the channel for instant, bidirectional frame delivery. It interfaces with the controller via dual-port RAM networks, isolating timing-critical transmission pulses from the cyclic logic processing of the host automation system.

Installation & Troubleshooting FAQ

Q1: Why is my fast S5 CPU reporting a PAFE = 81 fault right after turning on the system?
A: This occurs during a warm restart if a fast CPU (like CPU 946/947/948) sends a job to the CP 1430 interface while the processor is still executing its internal initialization sequence. To resolve this issue permanently, program a counter loop inside your startup organization blocks (OB 20, OB 21, or OB 22) to delay initial CPU jobs until the module is fully ready.

Q2: Why does the programming package halt or trigger a timeout when uploading large data files?
A: When running over long multi-hop paths (such as AS511 to H1 bridges), large blocks can cause tool timeouts if using older STEP 5 platforms. Upgrade your workstation to STEP 5 V6.6 which has no communication cutoff timer, or alter your diagnostic layout to connect the programming device directly via an H1 network card.

Q3: What causes an ANZW 0bx8 or 0Bx9 code, and how should the application handle it?
A: These codes indicate a temporary communication overload resulting from heavy simultaneous bus traffic on the SINEC H1 cable or a high concentration of concurrent connection requests. This is a transient condition, so you must configure your S5 user program logic to automatically repeat the communication job when these specific statuses appear.
