Theory of Operation

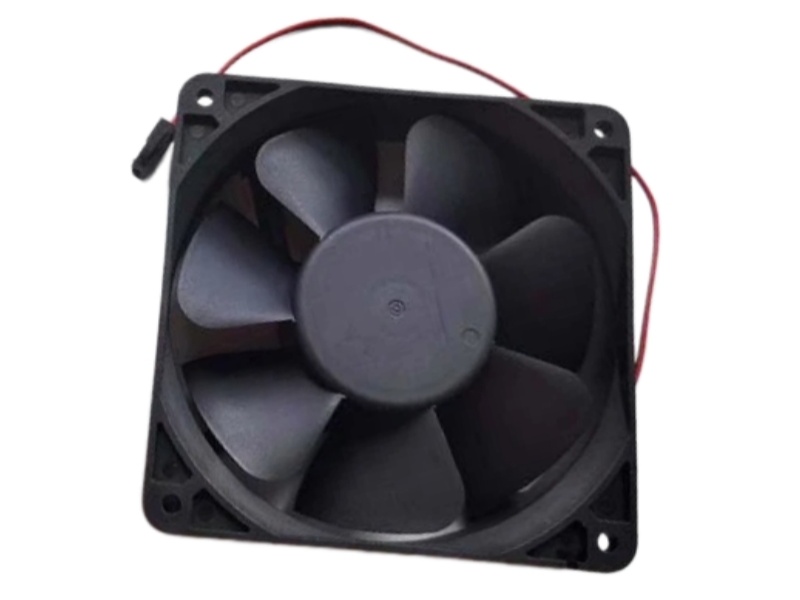

The 3HAC029105-002 serves as a high-velocity axial ventilation module optimized for the specific spatial layout of ABB IRC5 industrial robot cabinets. Operating on a regulated 24V DC bus line, the precision-engineered internal motor spins the multi-blade rotor to forcefully push dense air pockets past high-power semiconductors and transformer modules. By combining high static pressure with maximized CFM displacement, it eliminates stagnant thermal zones inside dense circuitry configurations, ensuring uninterrupted robotic trajectory calculation and preventing emergency shutdowns due to drive-overtemperature logic triggers.

System Compatibility & Alternatives

System Compatibility:
Fully integrated into ABB IRC5 series industrial controller systems, specialized robot drive modules, and localized cabinet cooling structures.

Alternative Model & Differences:

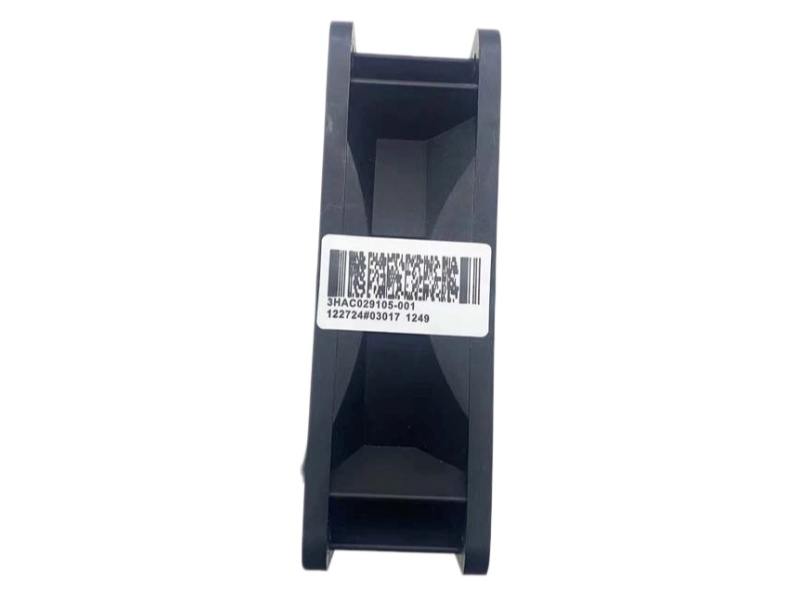

The alternative model variation is the standard component variant 3HAC029105-001.

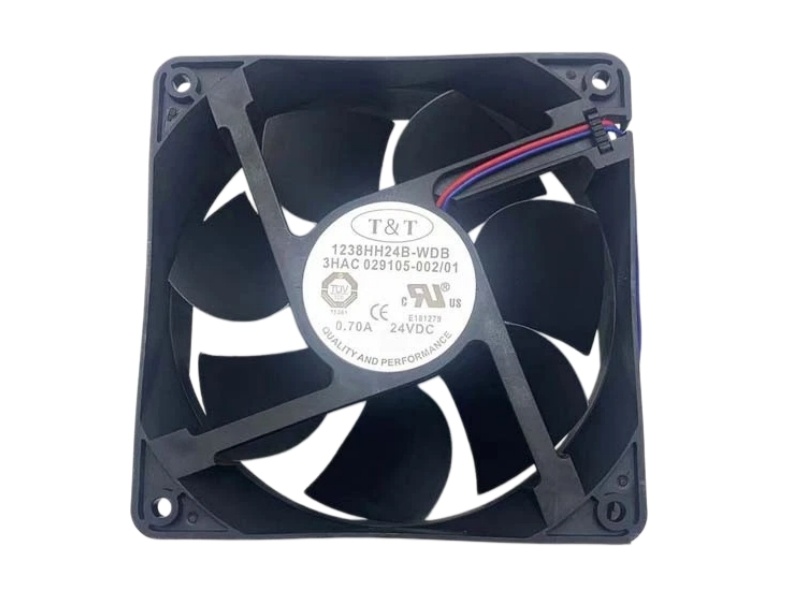

The Difference: While sharing similar dimensional frame sizes and baseline voltage protocols, the 3HAC029105-002 utilizes an upgraded high-RPM heavy-duty motor design (equivalent to manufacturer specifications like the 1238HH24B-WDB) that draws slightly higher current to maximize static pressure under restrictive internal cabinet resistance, whereas the -001 model is typically deployment-rated for basic exhaust paths.

Ordering Information

Product ID: 3HAC029105-002

Description: Fan (120x120x38mm)

Condition: New, Spare Part

Customs/Origin: 84145925 / Sweden (SE) or China (CN)

Weight/Packaging: 0.22 kg / 1 Piece Minimum

Installation & Troubleshooting FAQ

Q1: How do I ensure correct terminal polarization when clipping in the 3HAC029105-002 power lead?

A: The unit features a keyways-matched proprietary locking wire harness adapter plug. Align the plastic orientation tracks on the plug directly with the corresponding mating slot on the IRC5 distribution board before pressing down. Forcing a misaligned plug can damage the pin assignments and cause a short-circuit across the 24V supply line.

Q2: What is indicated by a systemic 'Drive Section Overheating' warning if the 3HAC029105-002 is physically turning?

A: This state suggests internal ventilation resistance or blade loading. In environments with heavy oil aerosols or grit, particles aggregate along the leading edges of the blade configuration, disrupting aerodynamics and lowering the effective CFM output. Clean the assembly with non-conductive solvent cleaners or replace the mechanical part if internal bearings exhibit high friction.

Q3: Can this cooling fan run continuously, or must it follow an intermittent duty-cycle logic?

A: The 3HAC029105-002 is rated for continuous, 24/7 duty cycles under peak operating temperatures inside hot plant floor automation enclosures. The integrated brushless dual-ball bearing assembly minimizes friction wear over long durations, meaning it does not require system-enforced rest periods during standard shifts.

Q4: How do I isolate a persistent vibration sound coming from the newly installed fan assembly?

A: Check the seating torque of the four mounting screws pinning the housing to the controller frame matrix. Industrial robot vibrations can back loose mounting hardware out over time. If the screws are sound, inspect the internal blades for chipped plastic edges caused by loose debris; uneven weight distributions across blades cause unbalanced rotation, requiring immediate replacement.
