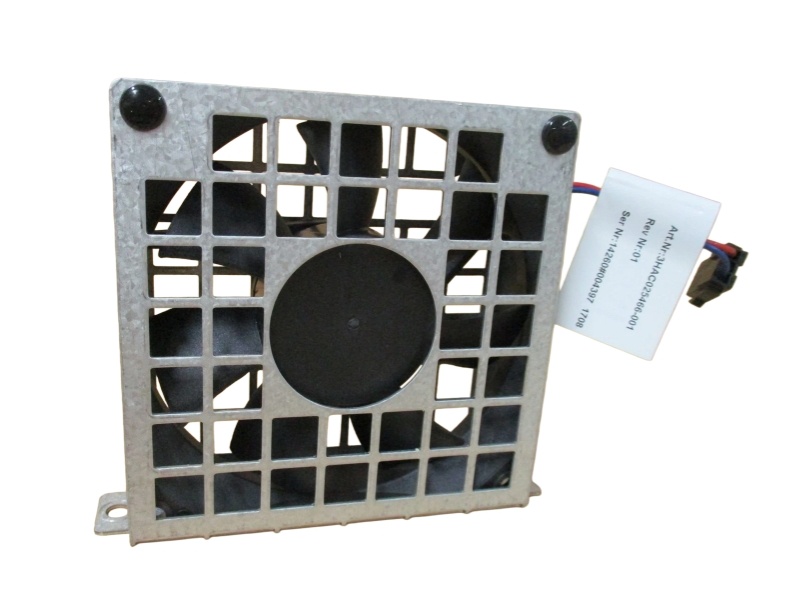

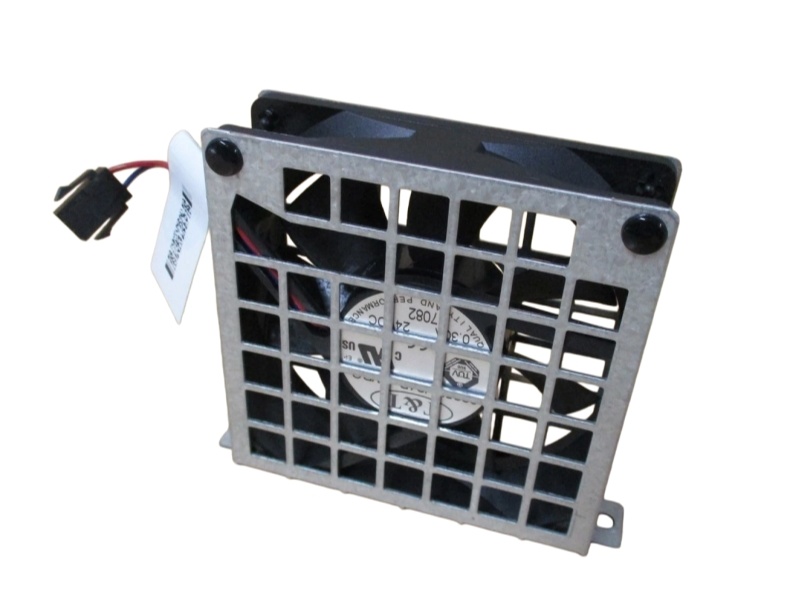

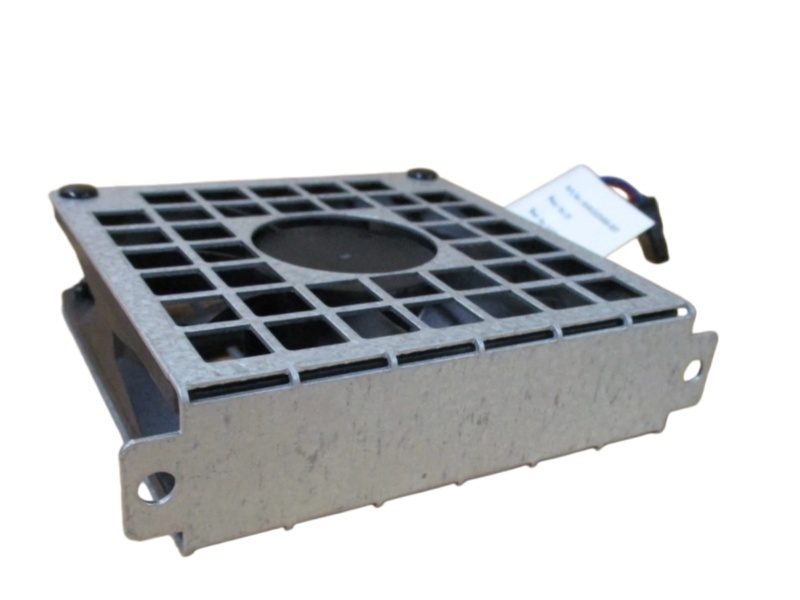

3HAC025466-001 is an ABB high-performance industrial cooling fan featuring compact 92mm dimensions. Fully compatible with IRC5 M2004 controller modules, this spare part works seamlessly within the robotics cabinet to prevent overheating, delivering optimal thermal management and stable industrial robotic system communication.
Theory of Operation
The 3HAC025466-001 operates as a brushless axial cooling fan designed to maintain thermal equilibrium inside the ABB robot controller cabinet. Driven by the controller's internal power supply, the motor spins the integrated blades to draw cooler ambient air into the electronic enclosure and exhaust accumulated heat. By creating a continuous, high-volume airflow through vital circuitry, it effectively prevents thermal throttling and component damage in sensitive control boards and drive units, ensuring uninterrupted robotic arm automation performance.
System Compatibility & Alternatives
System Compatibility:
Fully compatible with ABB IRC5 M2004 robot controller modules and RC5 Single robotics controllers.
Alternative Model & Differences:
The explicit alternative model is the host-level assembly 3HAC020536-014 (Controller Module).
The Difference: The 3HAC025466-001 is a standalone component (the physical cooling fan itself) categorized as a "New" spare part weighing 0.08 kg. The 3HAC020536-014 represents the entire system or sub-assembly module that houses the fan as its internal spare component.
Ordering Information
|
Parameter |
Product Details |
|
Product ID |
3HAC025466-001 |
|
Invoice Description |
Fan |
|
Product Type |
Spare_Parts |
|
Part Type |
New |
|
Minimum Order Quantity |
1 piece |
|
Made To Order |
No |
|
Gross Weight |
0.08 kg |
|
Dimensions (W x H x L/D) |
92 mm x 25 mm x 92 mm |
Installation & Troubleshooting FAQ
Q1: What is the correct airflow direction when installing the 3HAC025466-001 fan?
A: Look for the directional arrows stamped onto the outer plastic frame of the fan housing. One arrow indicates the blade rotation direction, and the other shows the airflow path. Ensure the airflow points outward or toward heat sinks as designated by the IRC5 cabinet layout to maximize thermal efficiency.
Q2: Why does the IRC5 controller display a fan alarm even though the fan seems to spin?
A: This is usually caused by a failure in the fan's built-in speed feedback sensor wire or a loose plug connection. If the controller does not receive the correct RPM signal, it triggers a system safety alarm. Check that the connector is securely seated and clear of dust. If the error persists, the internal sensor circuitry may be damaged, requiring fan replacement.
Q3: How often should this cooling fan be inspected or cleaned?
A: In standard factory environments, inspect and clean the fan every 6 to 12 months. Heavy airborne dust, oil mist, or high ambient temperatures can restrict blade rotation and trigger overheating faults. Use compressed air to clean the blades, holding them steady to prevent over-spinning damage.
Q4: Can I use a generic 92mm computer fan to replace the ABB 3HAC025466-001?
A: No, generic consumer fans should not be used. The 3HAC025466-001 is certified for harsh industrial environments, offering specific voltage ratings, higher static pressure requirements, and long-term durability. Standard fans may fail under continuous heavy loads or lacks the correct proprietary connector pinout required by the controller board.
