Specific Application

• Differential Expansion Monitoring: Condition signals for measuring rotor expansion (RX) or differential expansion (DE) in large steam turbine generators caused by thermal growth deltas.
• High-Density Monitoring Cabinets: Slated for clean industrial instrumentation racks where standard 35mm DIN rail layouts are utilized to maximize space and condense module footprints.
• Non-Hazardous Area Processing Sites: Deployed in baseline factory machinery configurations where hazardous explosive gases are absent, removing the need for costly intrinsic safety certification layers.

System Compatibility and Replacement Models

System Compatibility:

• Bently Nevada 3300 XL 50 mm Proximity Probe (330876)
• Bently Nevada 3300 XL 50 mm Extension Cable (330877)
• Core transducer systems configured to a strict 5.0-meter matching electrical system length
• Plant monitoring instrumentation configured with an output scaling factor of 0.394 V/mm (10 mV/mil)

Alternative Replacement Models:

• 330878-50-00 (5.0-meter system length, traditional flat panel mount version)
• 330878-51-05 (5.0-meter system length, DIN rail mount with Multiple hazardous area approvals)
• 330878-91-00 (Extended 9.0-meter total system length, DIN rail mount variant)

Differences from Alternative Models:

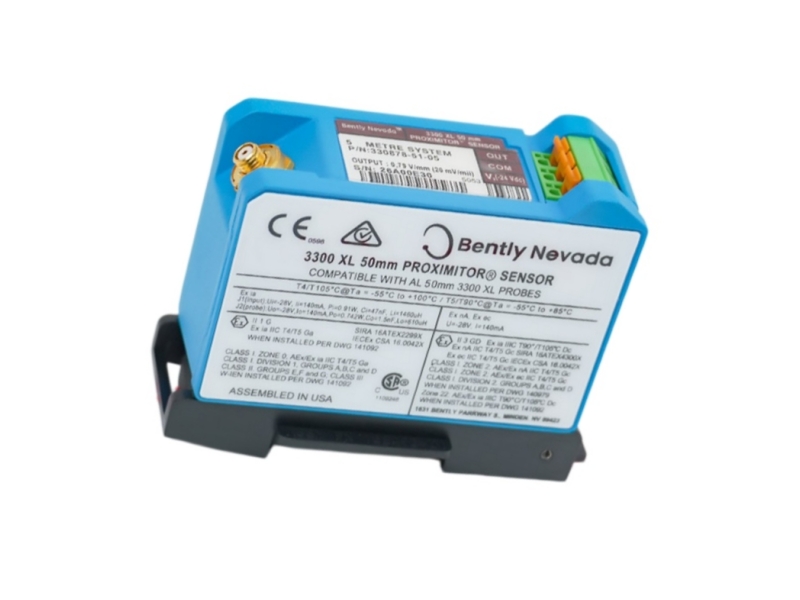

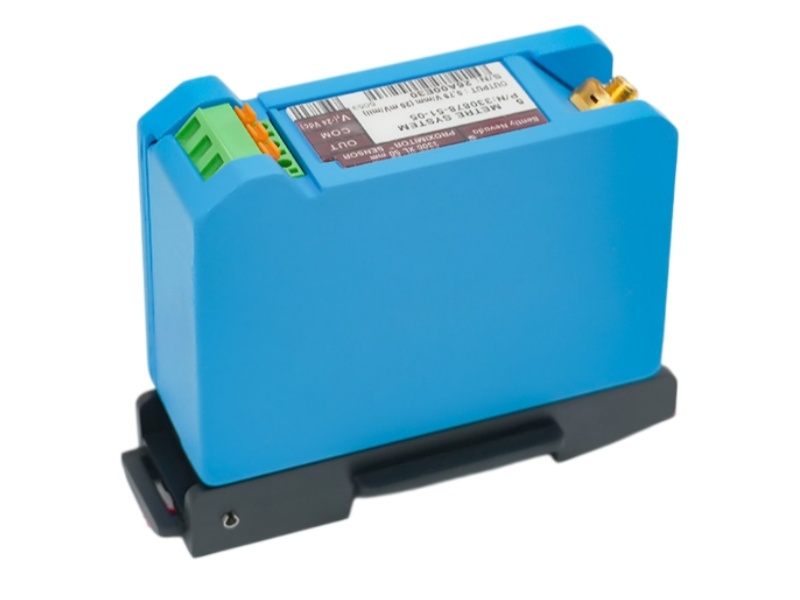

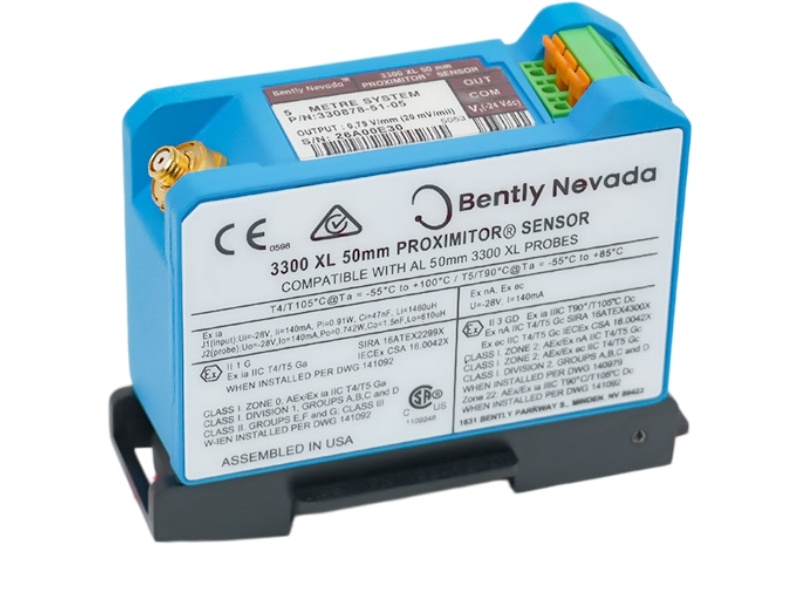

• Mounting Configuration: The 330878-51-00 integrates a specialized base clamp for direct snap-on interfacing onto 35mm DIN rail brackets. The 330878-50-00 instead features flat baseline flanges with drilled holes for screw-down structural surface configurations.
• System Matching Metrics: This model conditions an exact 5.0-meter electrical string (typically a 1.0m probe paired with a 4.0m extension lead). Substituting this for a 9.0m module (330878-91-00) requires a completely different cable layout (e.g., 1.0m probe with an 8.0m extension line) to prevent massive tuning errors and calibration failure.
• Explosion Protection Safety: The -00 suffix specifies that no hazardous location certifications are loaded into the module. In contrast, the -05 option provides official cNRTLus, ATEX, and IECEx certifications for explosive environments.

Ordering Information Table

Installation & Troubleshooting FAQ

Q1: What are the exact power supply specs and wiring requirements for the SpringLoc terminal strip?

A: This Proximitor requires an isolated continuous supply between -17.5 Vdc to -26 Vdc at a peak load current of 12 mA. Field connections should be made using 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cables routed directly into the screwless SpringLoc terminals. Note that providing operational power more positive than -23.5 Vdc will degrade the sensor’s comprehensive linear range.

Q2: Why is the monitor reporting a sudden compression or shift in the linear output voltage?

A: This system delivers a long 27.9 mm (1100 mils) linear monitoring band, beginning 1.3 mm away from the target track (-1.5 Vdc to -12.5 Vdc output range). If your readings display unexpected signal squeezing, ensure the target is fabricated from standard AISI 4140 steel and measures at least 102 mm (4.0 inches) in diameter. Targets constructed from other alloys alter the eddy current profile, leading to severe scaling deviations.

Q3: Does this module require specialized isolation shielding or enclosed panel housings to avoid signal noise?

A: No. The 3300 XL Proximitor design features upgraded internal hardware immunity to high-frequency radio frequency interference (RFI) and electromagnetic fields. It meets complete European CE mark certification criteria without requiring secondary shielding panels or specialized isolating installation frameworks.
