Competitive Advantage

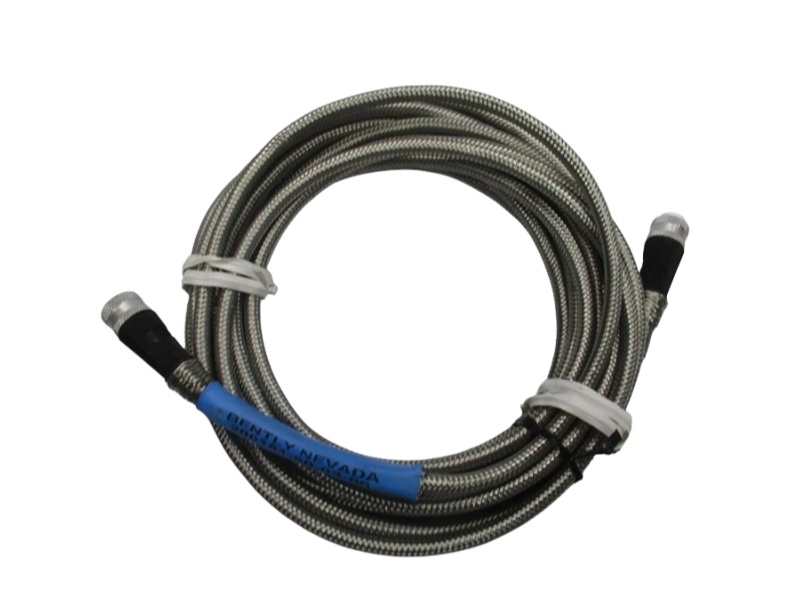

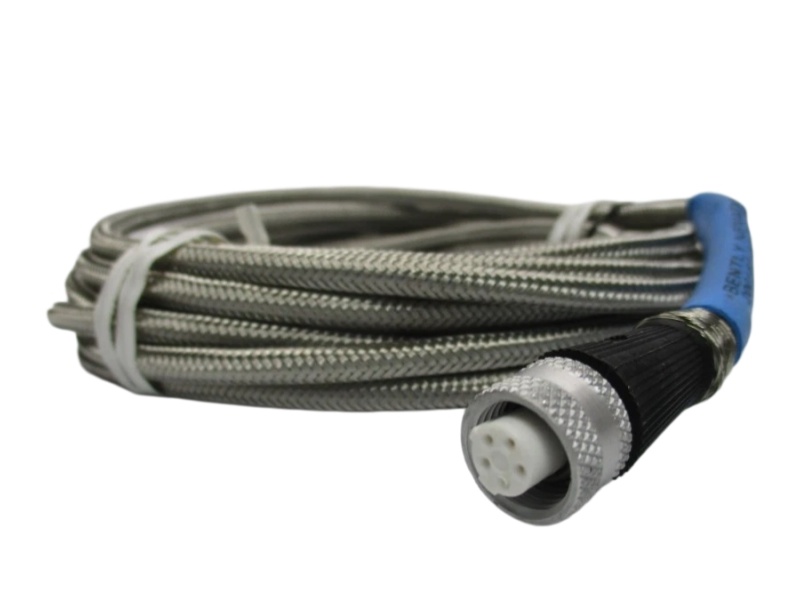

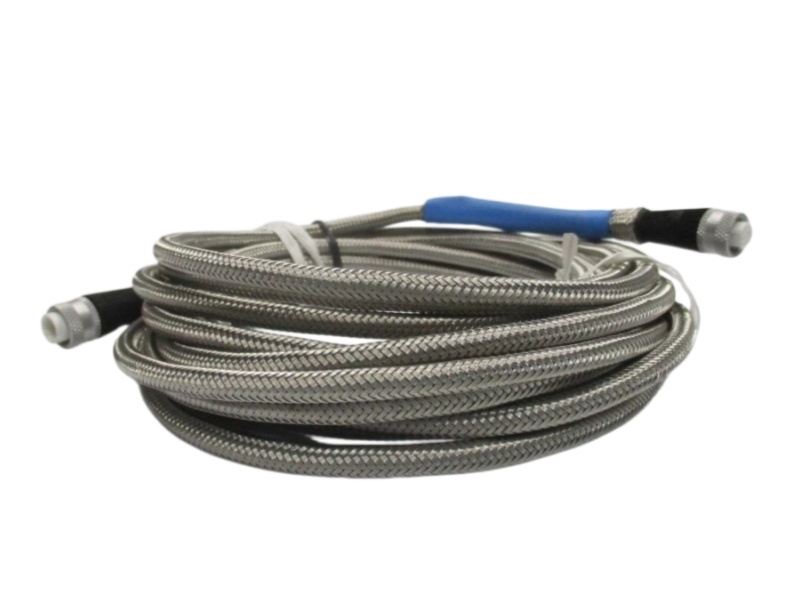

• The 200151-60-03-10 cable offers a high-performance interconnect solution tailored for heavy-duty manufacturing environments. Its integrated blue armor provides superior mechanical shielding, effectively protecting the internal 4-conductor 22 AWG wiring from sharp cuts, crush forces, and abrasive wear. Furthermore, the upgraded option 10 enhanced coupling nuts deliver a significantly better physical grip than standard nuts. This lets field technicians tighten the assembly onto case-mounted sensors securely by hand, maximizing IP67 moisture sealing and eliminating high-vibration loosening.

System Compatibility and Replacement Models

System Compatibility:

Bently Nevada 200150, 200155, and 200157 case-mounted accelerometers

Trendmaster ProTIM modules (ProTIM-R, ProTIM-C)

Trendmaster 2000 system components (such as flexiTIM and legacy Transducer Interface Modules)

Alternative Replacement Models:

200151-60-02-00 (Unarmored version with standard coupling nuts)

200152-15-10 (Single-connector style alternative with enhanced nut)

Differences from Alternative Models:

Armor Protection: The 200151-60-03-10 comes equipped with flexible metal armor (-03) which prevents mechanical damage in tight machinery gaps. In contrast, the 200151-60-02-00 uses an unarmored PVC jacket that is vulnerable to cuts and crushing.

Connector Layout: The 200151 series features molded 5-pin 1/2-20 connectors on both ends of the line to establish plug-and-play connections between sensors and localized boxes. The 200152 series contains a connector on the accelerometer end only, leaving flying leads at the other side for hardwired termination blocks.

Coupling Mechanical Grip: The -10 suffix designates an enhanced coupling nut with aggressive external ribbing. This design provides much better tactile feedback than the basic smooth metal nuts (-00) or non-metallic nylon options (-02), keeping the internal IP67 seal tightly compressed under thermal shifts.

Ordering Information Table

Installation & Troubleshooting FAQ

Q1: What is the minimum allowable bend radius during installation of this armored cable?

A: For the 200151 armored series, the minimum bend radius must be kept at or above 63.5 mm (2.5 inches). Forcing the cable into tighter bends will deform the stainless steel outer armor, compromise the braided shield layer, or snap the internal 22 AWG copper conductors, leading to signal loss.

Q2: Why am I experiencing a sudden drop in vibration amplitude or erratic open-circuit faults?

A: This behavior typically suggests that the cable was flexed or bent at temperatures below -20ºC (-4ºF). While the assembly safely handles static cold down to -40ºC, flexing or routing it during deep sub-zero conditions cracks the outer PVC jacket and insulation, allowing oil or water ingress that short-circuits the internal SIG+ and SIG- channels.

Q3: Do I need to apply any specialized compound inside the enhanced coupling nut before tightening?

A: Yes, it is highly recommended to add DC4 electrical insulating compound inside the 5-pin connector cavities before mating. When you spin the enhanced coupling nut to its final lock position, this compound fills micro-voids to form a secondary shield against moisture ingress caused by severe thermal shock washdowns.
