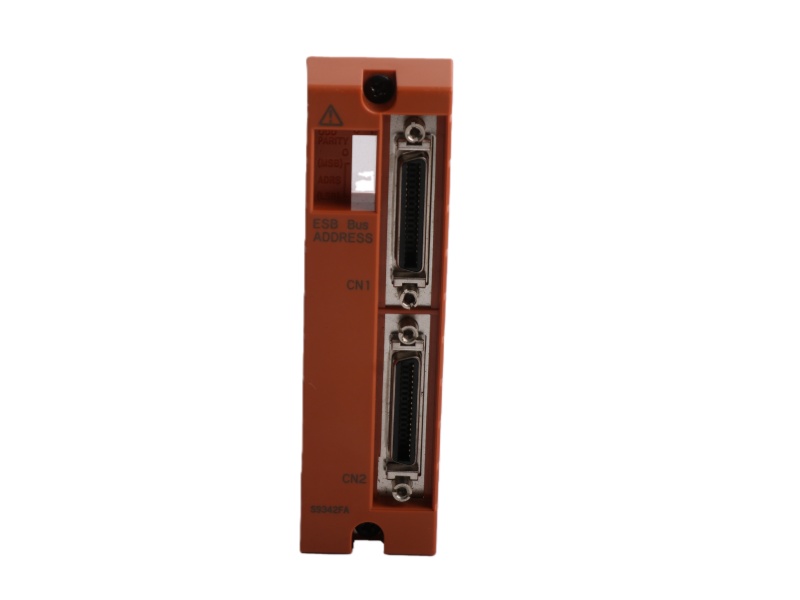

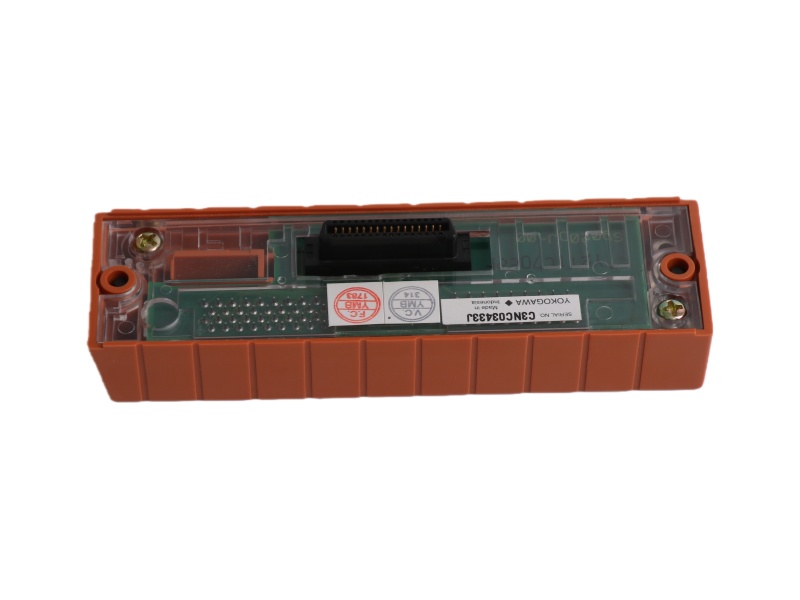

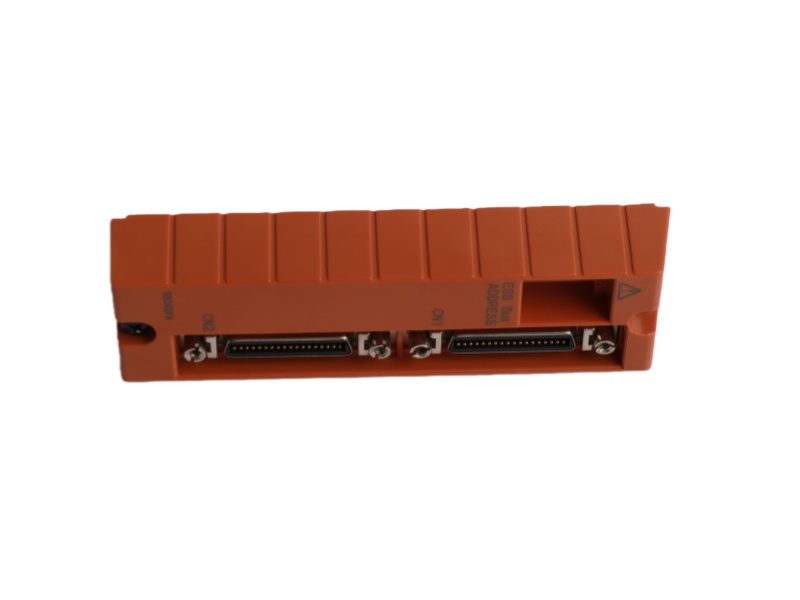

The S9342FA Safety Node Unit Yokogawa is a specialized Connector Unit designed specifically for the Enhanced System Bus (ESB) within Yokogawa's distributed control system architecture. This fundamental component serves as the physical interface that ensures secure and reliable electrical connections between the ESB backbone and various system modules. The primary role of the PLC MODULE S9342FA Yokogawa is to maintain signal integrity across the control network by providing a stable connection point with minimal electrical resistance, typically measuring below 20 mΩ to prevent voltage drops and data corruption.

Engineered for consistent performance, the YOKOGAWA S9342FA Connector Unit operates at the ESB standard voltage of 5 V DC with a current rating between 1-2 A, ensuring compatibility with the power requirements of connected devices. Its electrical insulation capabilities are exceptional, featuring an insulation resistance greater than 100 MΩ when tested at 500 V DC and a dielectric strength that withstands 1000 V AC for one minute. These specifications make the module a reliable connection point even in electrically noisy industrial environments.

The environmental durability of the S9342FA Yokogawa Connector Unit for ESB Bus is demonstrated through its operational temperature range from -10°C to +60°C and storage capabilities from -20°C to +70°C. Weighing only 0.05 kg, this compact connector unit is designed for easy installation and maintenance within control cabinet configurations. The humidity tolerance of 10-90% RH (non-condensing) ensures the module remains reliable in various climatic conditions found in industrial settings.

In system implementation, the Connector Unit for ESB Bus S9342FA plays a crucial role in establishing and maintaining the physical layer of the ESB network, which interconnects controllers, operator stations, and other critical system components. The robust design and precise engineering of the module contribute significantly to the overall stability and data transmission quality of the control system. By providing a secure and low-resistance connection pathway, the module helps ensure uninterrupted communication across the automation infrastructure, supporting continuous process operations.
