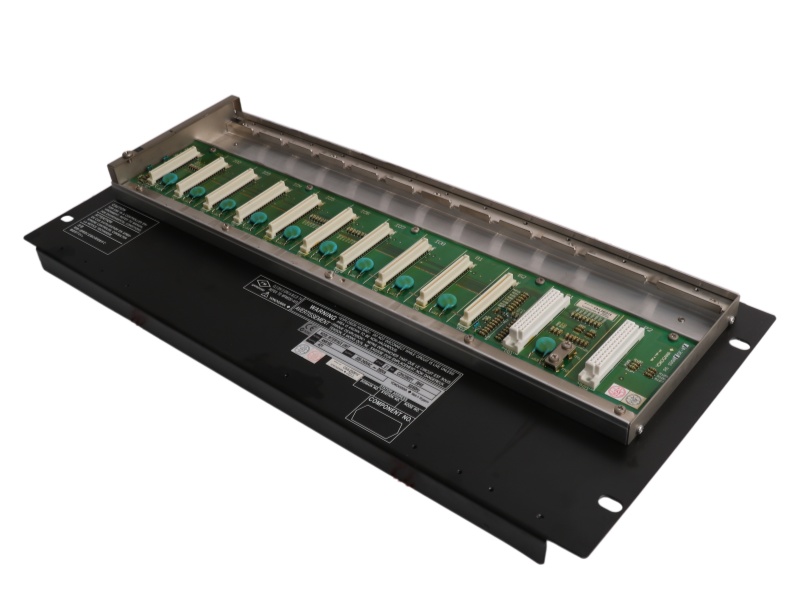

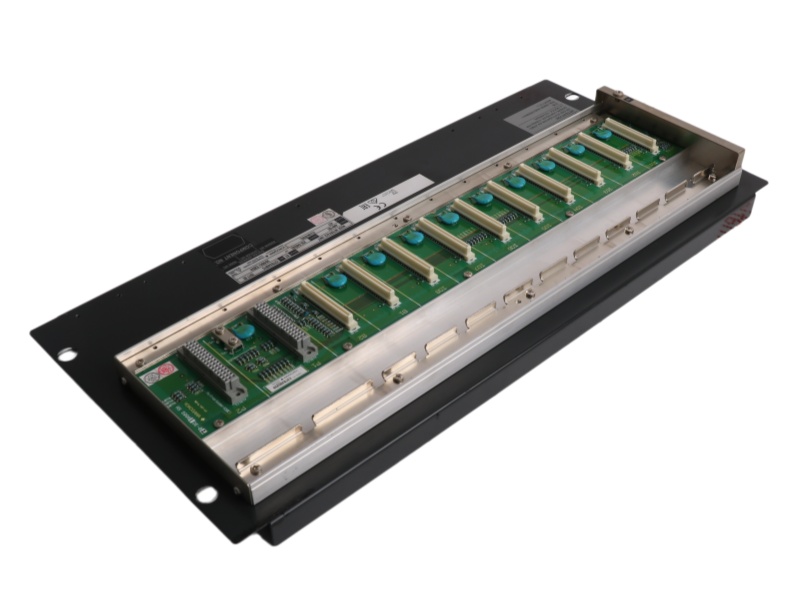

Yokogawa ANB10D-427/CU2T ESB Bus Node Units

Inquiry now

ANB10D-427/CU2t Product datasheet

Model number	ANB10D-427/CU2t
Manufacture	Yokogawa
System	PLC
Condition	Brand New
Country of Origin	Japan
HS Code	8537101190
After-Sales Support	12-months

ANB10D-427/CU2t Overview

The Yokogawa ESB Bus Node Units ANB10D-427/CU2t is a dual-redundant ESB bus node unit with 220-240V AC power, supporting up to 10 FIO modules and including two terminating connector units for bus termination.

Technical Data Summary

Node Type: ESB Bus Node Unit for dual-redundant optical communication.

I/O Capacity: Supports up to 10 FIO I/O modules per node.

Power Supply: Dual-redundant 220–240 V AC power; 120 VA consumption.

Data Rate: 128 kbit/s ESB bus transmission speed.

Termination: Includes two S9564FA Connector Units with built-in terminators.

Environmental: Operating temperature 0°C to +50°C; ISA G3 coating included.

FAQ

Q1: What is the primary function of the ANB10D-427/CU2T?

A1: It is an ESB Bus Node Unit that interfaces field I/O signals with a Field Control Unit (FCU) via the ESB bus and supplies power to I/O modules.

Q2: What power supply configuration does it feature?

A2: It features a dual-redundant 220–240 V AC power supply for high availability.

Q3: What is included with the /CU2T option?

A3: It includes two Connector Units with built-in Terminators for the ESB Bus, part number S9564FA.

Q4: How many I/O modules can it support?

A4: It can accommodate up to 10 FIO I/O modules per node unit.

Q5: How is it connected to the FCU?

A5: It connects via the ESB bus using an EC401 or EC402 Bus Coupler Module installed in slots 7 and 8 of the FCU.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Yokogawa	ATR8S-00 S2	Yokogawac	AMM52 S4	Yokogawa	AAI135-H00 S1
Yokogawa	ATK4A-00 S1	Yokogawa	AMM42 S4	Yokogawa	AAI135-H03 S1
Yokogawa	ATI3S-00 S2	Yokogawa	AMM42 S3	Yokogawa	AAI135-S00 S2
Yokogawa	ATD5A-00 S1	Yokogawa	AMM32J S1	Yokogawa	AAI135-S50 S3
Yokogawa	ATB5S-00 S2	Yokogawa	AMM32 S3	Yokogawa	AAI141-H00 S1
Yokogawa	ATA4S-00 S2	Yokogawa	AMM22 S3	Yokogawa	AAI141-H03 S1
Yokogawa	ASS9981DE-02	Yokogawa	AMM12T S2	Yokogawa	AAI141-S00 S2
Yokogawa	ASS9562DK-00	Yokogawa	ALR121-S51 S1	Yokogawa	SDV531-S23 S1
Yokogawa	ANT502-5F S1	Yokogawa	ALR121-S00 S1	Yokogawa	SDV541-S53 S3
Yokogawa	ANB10D-S1	Yokogawa	ALP121-S00 S2	Yokogawa	SPW482-13 S1

ESB Bus Node Units

ESB Bus Node Units serve as essential remote I/O interfaces within Yokogawa’s CENTUM VP and ProSafe-RS systems. These units are strategically deployed in the field to collect analog and contact input signals directly from process instrumentation. They convert this data into optical signals for transmission over the high-speed ESB bus to a central Field Control Unit (FCU) located in a control room. In addition to signal conversion, these node units provide regulated power to connected FIO modules. Designed for high reliability, they feature dual-redundant power supply options and ISA G3 environmental protection, ensuring robust performance in demanding industrial applications.
