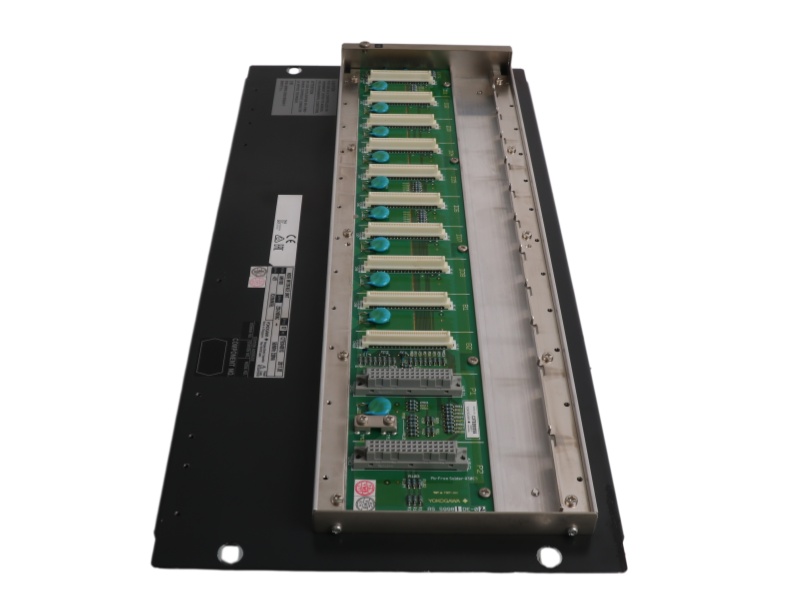

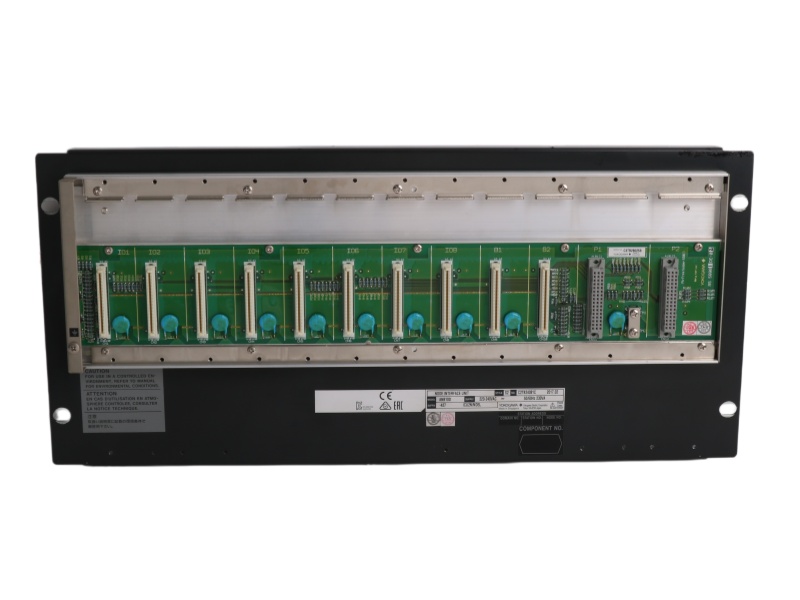

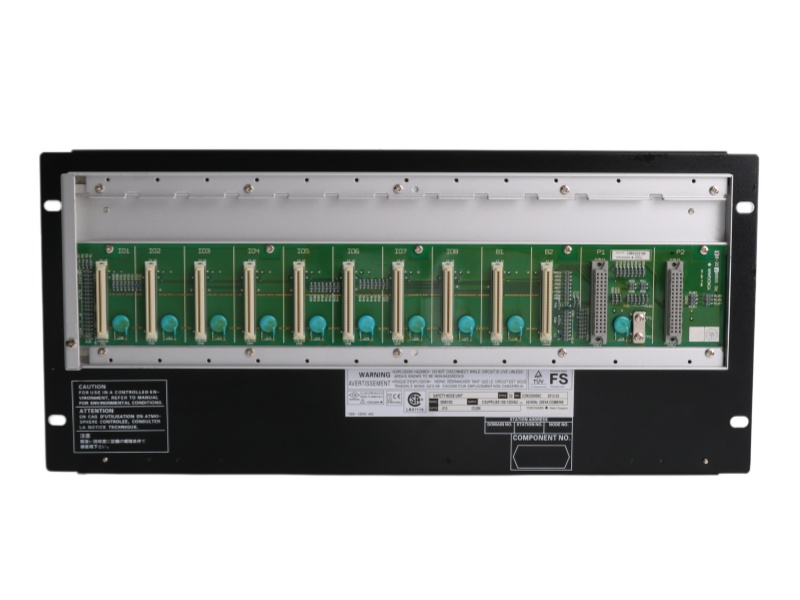

Yokogawa ANB10D-427/CU2N ESB Bus Node Units

Inquiry now

ANB10D-427/CU2N Product datasheet

Model number	ANB10D-427/CU2N
Manufacture	Yokogawa
System	PLC
Condition	Brand New
Country of Origin	Japan
HS Code	8537101190
After-Sales Support	12-months

ANB10D-427/CU2N Overview

The Yokogawa ESB Bus Node Units ANB10D-427/CU2N is a dual-redundant ESB bus node unit for FIO, providing optical signal conversion and power distribution for up to 10 I/O modules in remote applications.

Features and benefits

Node Type: ESB Bus Node Unit for dual-redundant optical communication.

I/O Capacity: Supports up to 10 FIO I/O modules per node.

Power Supply: Dual-redundant 220–240 V AC power supply; 120 VA consumption.

Data Rate: 128 kbit/s ESB bus transmission speed.

Environmental: Operating temperature 0°C to +50°C; ISA G3 coating included.

Included Options: Comes with two S9562FA Connector Units for ESB Bus.

FAQ

Q1: What is the primary function of the ANB10D-427/CU2N?

A1: It is an ESB Bus Node Unit that collects field I/O signals and transmits them optically to a remote FCU.

Q2: How many I/O modules can it support?

A2: It can accommodate up to 10 FIO I/O modules per node unit.

Q3: What power supply configuration does it use?

A3: It features a dual-redundant 220–240 V AC power supply for high reliability.

Q4: What is included with the /CU2N option?

A4: It includes two Connector Units for ESB Bus, part number S9562FA.

Q5: Does it support environmental monitoring?

A5: Yes, with an optional HKU interface, it can transmit cabinet environmental data to the FCU via the optical ESB bus.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Yokogawa	ATR8S-00 S2	Yokogawac	AMM52 S4	Yokogawa	AAI135-H00 S1
Yokogawa	ATK4A-00 S1	Yokogawa	AMM42 S4	Yokogawa	AAI135-H03 S1
Yokogawa	ATI3S-00 S2	Yokogawa	AMM42 S3	Yokogawa	AAI135-S00 S2
Yokogawa	ATD5A-00 S1	Yokogawa	AMM32J S1	Yokogawa	AAI135-S50 S3
Yokogawa	ATB5S-00 S2	Yokogawa	AMM32 S3	Yokogawa	AAI141-H00 S1
Yokogawa	ATA4S-00 S2	Yokogawa	AMM22 S3	Yokogawa	AAI141-H03 S1
Yokogawa	ASS9981DE-02	Yokogawa	AMM12T S2	Yokogawa	AAI141-S00 S2
Yokogawa	ASS9562DK-00	Yokogawa	ALR121-S51 S1	Yokogawa	SDV531-S23 S1
Yokogawa	ANT502-5F S1	Yokogawa	ALR121-S00 S1	Yokogawa	SDV541-S53 S3
Yokogawa	ANB10D-S1	Yokogawa	ALP121-S00 S2	Yokogawa	SPW482-13 S1

Optical ESB Bus Node Unit Functions

This remote node unit serves as a critical communication interface between field I/O and the central FCU.

Signal Conversion: Converts analog and contact I/O signals to optical data for transmission via the optical ESB bus.

Power Distribution: Supplies necessary power to connected I/O modules.

Environmental Monitoring: With the optional HKU interface, cabinet conditions are transmitted to the FCU via the optical ESB bus, enabling centralized monitoring of remote cabinet environments.
