8272-582 Product datasheet
|
Model number: |
8272-582 |
|
Module Type： |
Apm Motor Control |
|
Manufacture: |
Woodward |
|
Condition： |
Brand New |
|
Range of Product: |
Woodward |
|
Lead time： |
In Stock |
|
Weight: |
0.96kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
28×12×21cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |

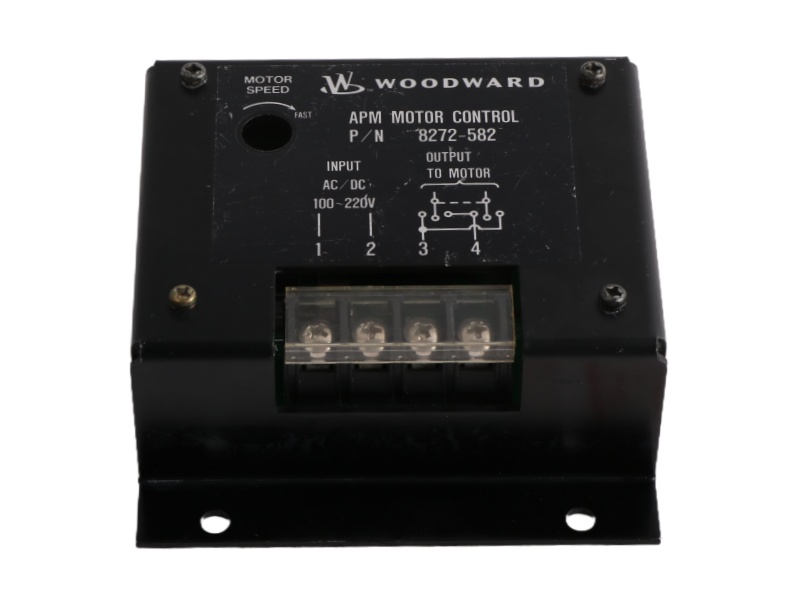

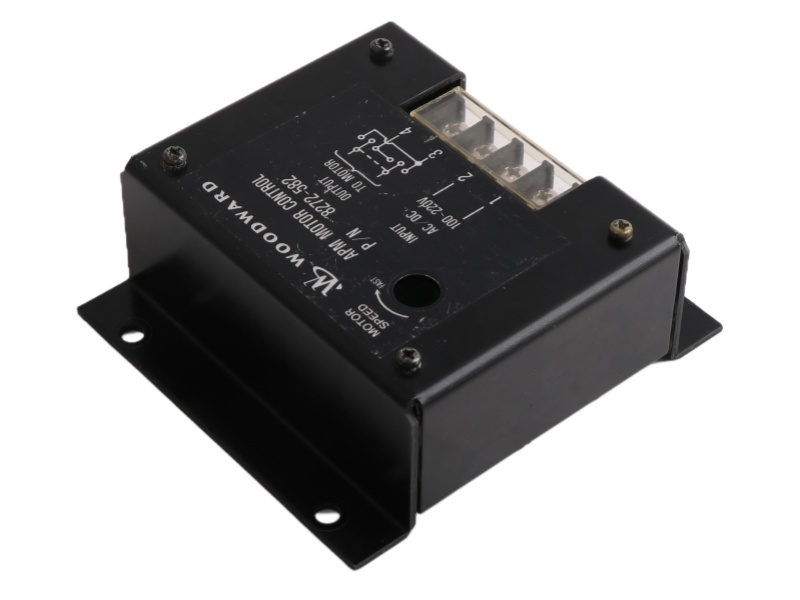

8272-582 Functional Description
The Apm Motor Control Woodward 8272-582 is specifically designed for use with Woodward 24 Vdc PM motors, converting various input voltages into a variable DC voltage, typically 24 Vdc. This variable voltage allows precise control of the PM motor’s speed for a wide range of applications.
When paired with a PM motor, the 8272-582 PLC MODULE Woodward ensures that the motor maintains a constant speed even when the load on the motor control changes. This stability is critical for applications requiring consistent performance and reliable operation under varying conditions.
The 8272-582 WOODWARD APM MOTOR CONTROL features an adjustable potentiometer that allows the user to set the rate at which the PM motor changes the speed setting of the governor. Turning the potentiometer clockwise increases the speed reference change rate, while counterclockwise adjustment slows it down.
The recommended output voltage range of the 8272-582 CONTROLLER Woodward for PM motors is 10-24 Vdc. Two types of APM Motor Control cover most voltage requirements and applications, making the Speed Control Board Woodward 8272-582 a versatile and reliable solution for industrial motor control needs.
