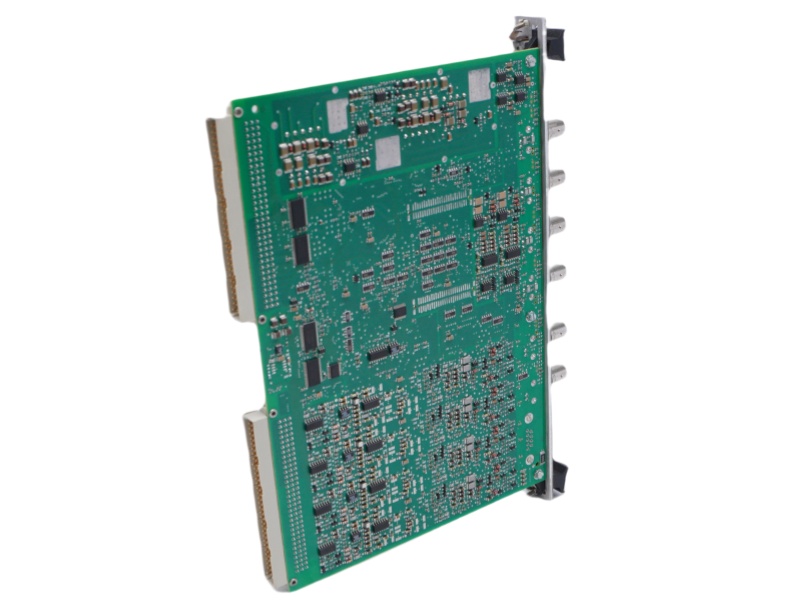

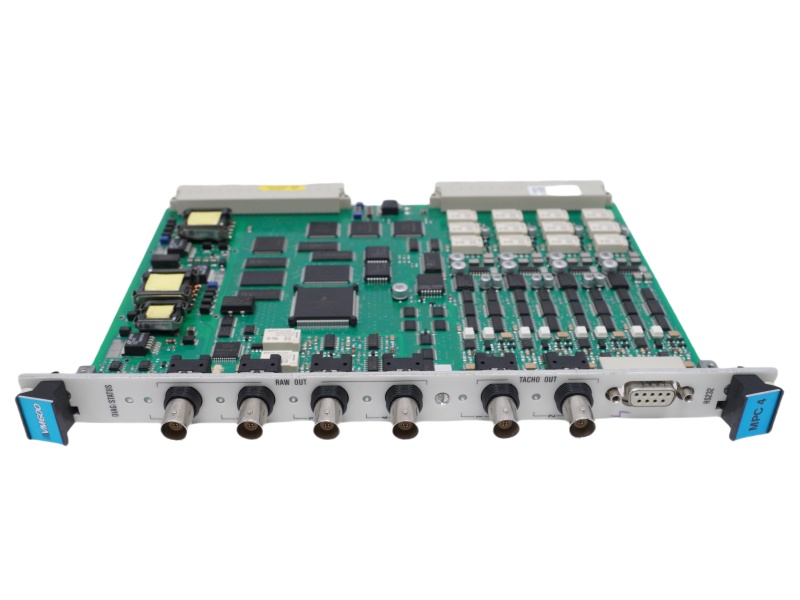

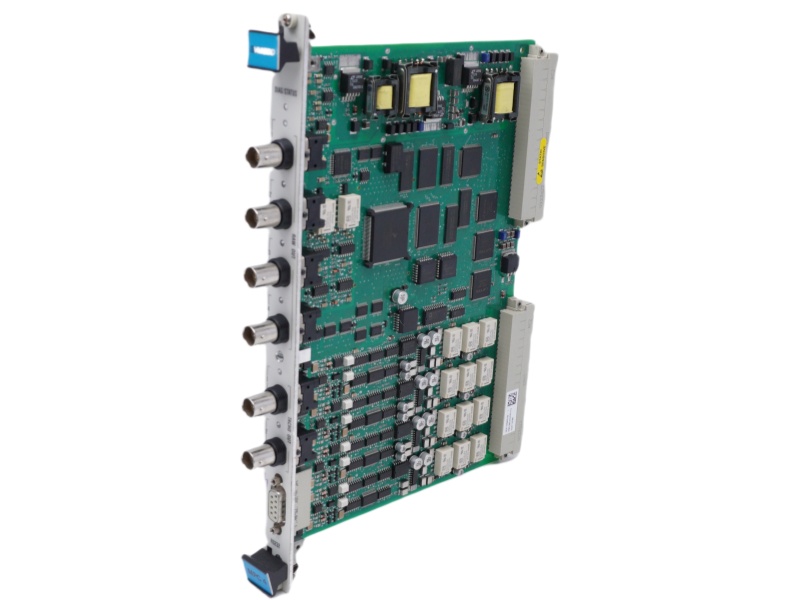

The VIBRO-METER VM600 MPC4 200-510-070-113 Machinery Protection Card is the central machinery protection card within Meggitt’s advanced VM600 series. As the heart of the system, it ensures reliable machinery protection by monitoring up to four dynamic signal inputs and two speed inputs simultaneously, making it a versatile solution for complex rotating equipment.

Designed for flexibility, the VM600 MPC4 200-510-070-113 PLC Module supports fully programmable inputs that handle acceleration, velocity, and displacement signals. It processes key measurements such as relative and absolute vibration, Smax, thrust position, eccentricity, and dynamic pressure. Integrated digital features include filtering, integration, differentiation, rectification (RMS, mean, true peak, peak-to-peak), order tracking, and precise sensor gap analysis.

The VIBRO METER VM600 MPC4 200-510-070-113 Board offers comprehensive alarm management with fully programmable Alert and Danger setpoints, adjustable for speed or external conditions. Alarm signals interface with IOC4T cards to drive local relays or connect via the system’s Raw or OC bus to optional relay modules like the RLC16. Analog outputs (0-10 V or 4-20 mA) for vibration and speed are available on the IOC4T front panel for seamless integration with plant control systems.

To maintain high system integrity, the Vm600 mpc4 200-510-070-113 in stock performs self-tests at startup and features a robust OK system that monitors the health of the entire measurement chain. LED indicators provide clear status for each channel and overall card health, ensuring that the Machinery Protection Card VM600 VIBRO-METERMPC4 delivers dependable machinery protection in critical industrial applications.
