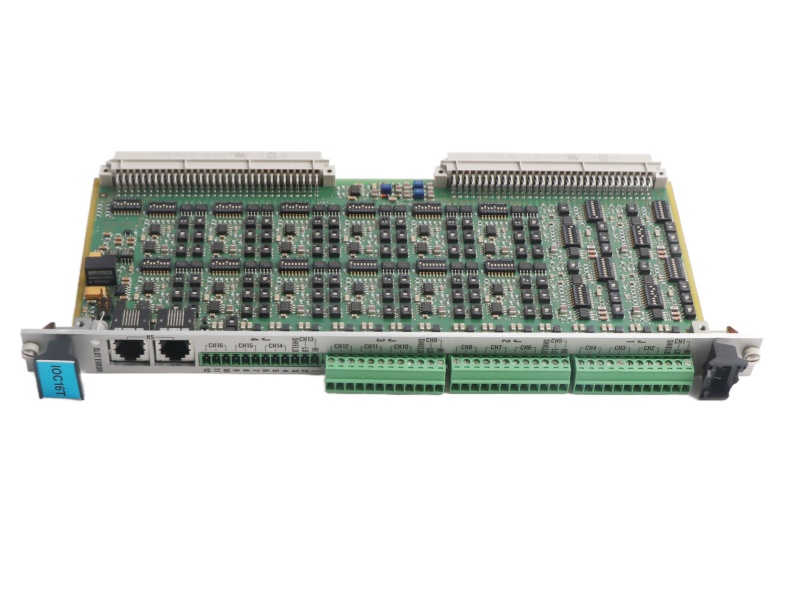

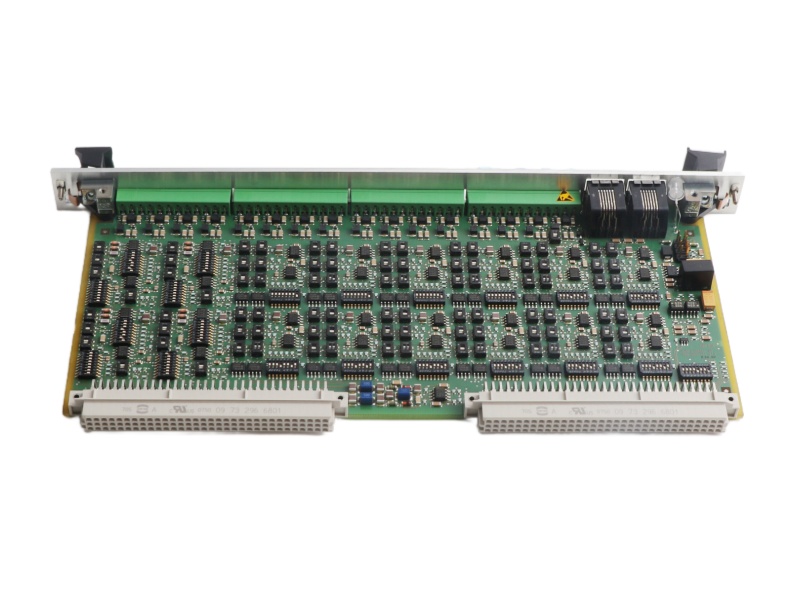

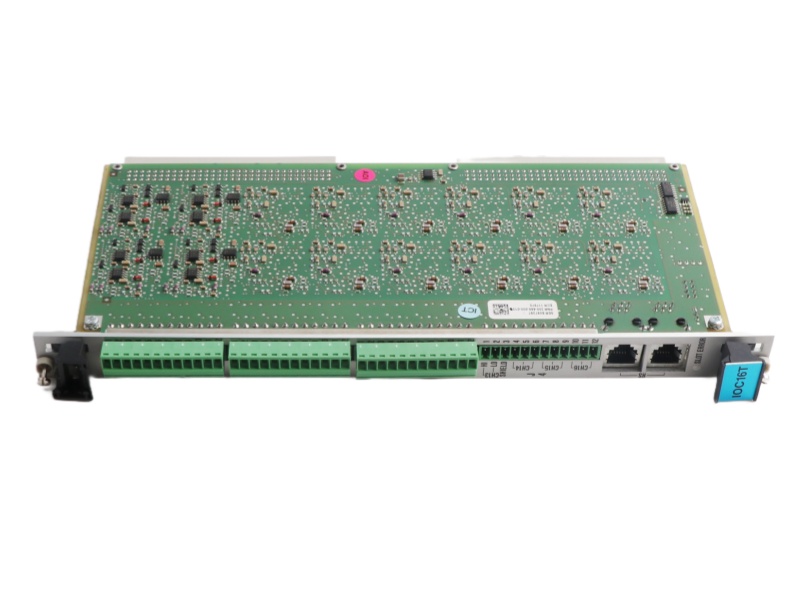

The VIBRO-METER VM600 IOC16T 200-565-000-013 Input/Output Card is a 16-channel input/output card designed to interface with the MPC4 machinery protection card. Installed in the rear of a rack, it connects directly to the rack backplane via two connectors, enabling seamless communication with the associated MPC4 card. Operating in slave mode, the Power Supply Module VIBRO-METER VM600 IOC16T 200-565-000-013 uses an Industry Pack (IP) interface through connector P2 to ensure reliable data transfer between the I/O card and the MPC4, supporting precise monitoring of critical machinery signals.

The front panel of the VM600 input card IOC16T 200-565-000-013 VIBRO-METER contains screw-terminal connectors for wiring from measurement chains, including sensors and signal conditioners. These terminals provide all input and output connections to external control systems while protecting signals against electromagnetic interference (EMI) and meeting electromagnetic compatibility (EMC) standards, ensuring reliable operation in industrial environments.

The VM600 Input/Output Card IOC16T 200-565-000-013 processes raw dynamic vibration and speed signals from sensors, converting them through four on-board digital-to-analog converters (DACs) to 0–10 V outputs. Additionally, four voltage-to-current converters allow jumper-selectable 4–20 mA outputs, providing flexible signal integration for downstream systems.

This module includes four local relays for software-controlled alarm signaling and supports 32 digital alarm signals transmitted to the rack backplane. Optional RLC16 or IRC4 relay cards can further process these alarms, making the VIBRO-METER VM600 IOC16T 200-565-000-013 a comprehensive solution for robust machinery condition monitoring and alarm management.
