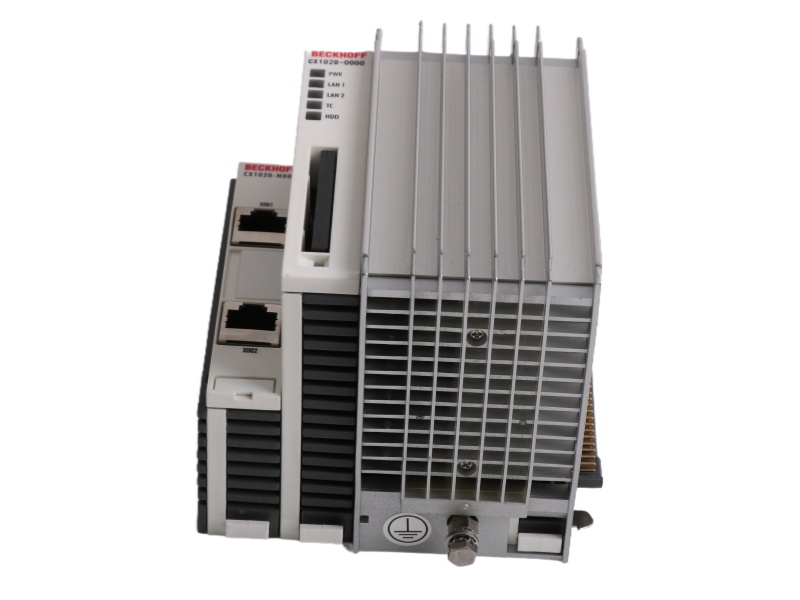

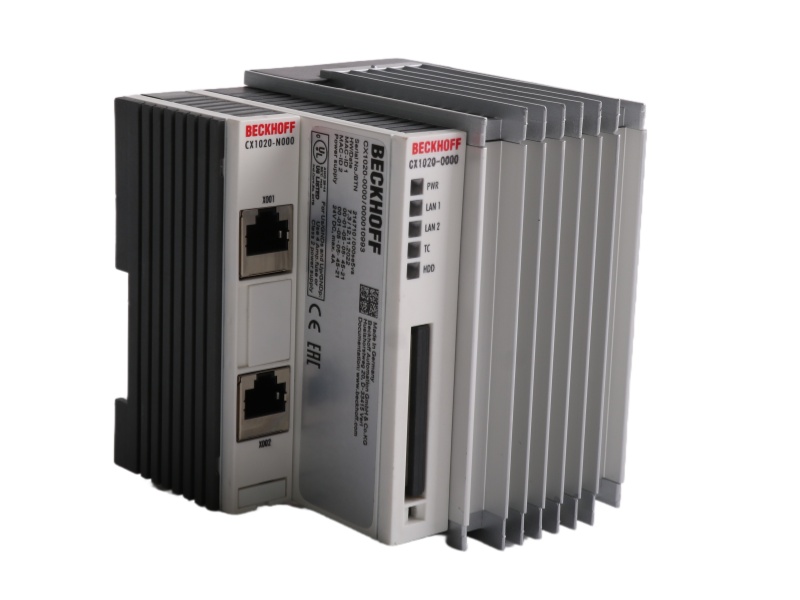

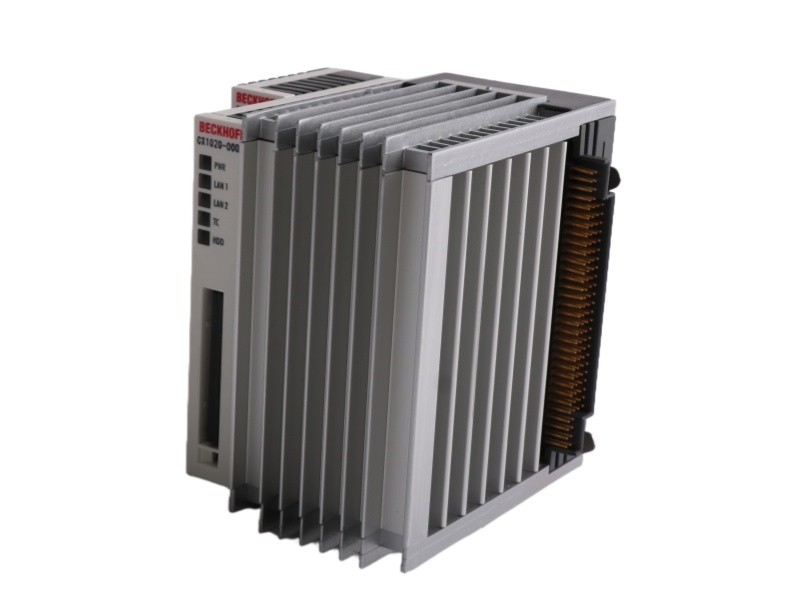

The CPU Base Unit CX1020-0000 BECKHOFF is an embedded PC controller featuring a robust 1 GHz Intel® CPU that operates without a fan or other rotating components, ensuring high reliability and minimal maintenance. This compact unit integrates the processor, chipset, and main memory, booting from its included 128 MB Compact Flash card. The design of the CX1020-0000 CPU Board BECKHOFF emphasizes passive cooling and energy efficiency, consuming approximately 8 W while operating effectively within a temperature range of 0 to +50°C.

A key feature of the BECKHOFF CX1020-0000 CPU Base Unit is its dual Ethernet RJ45 ports connected via an internal switch, enabling efficient line topology without additional network hardware. The device offers expansion through PC/104 interfaces on both sides, allowing connection to various CX series modules including fieldbus controllers and power supplies. The unit is provided without pre-installed operating system or TwinCAT software, offering flexibility for customized automation solutions.

While the BASIC CPU MODULE CX1020-0000 serves as a capable standalone controller, it can be transformed into a powerful PLC and motion control system when equipped with TwinCAT 2 automation software. The device supports Windows Embedded CE 6 or Windows Embedded Standard 2009, providing options for different application requirements. Its IP20 rating makes it suitable for controlled industrial environments where compactness and reliability are essential.

The CX1020-0000 Control Board  BECKHOFF represents a cost-effective solution for basic automation tasks while maintaining the quality and compatibility standards of the CX series. For applications requiring interpolating axis movements with TwinCAT 2 NC I, this controller provides adequate processing capability and expansion possibilities, making it a versatile choice for various industrial automation scenarios.
