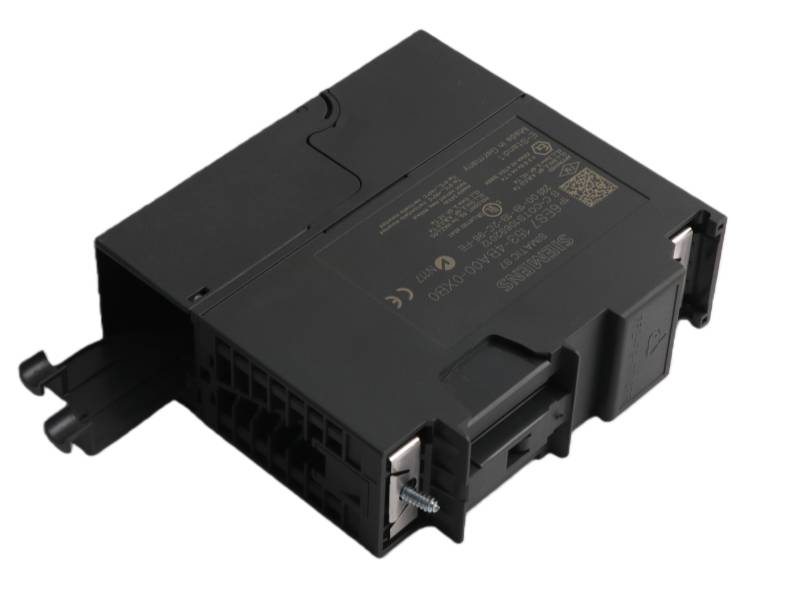

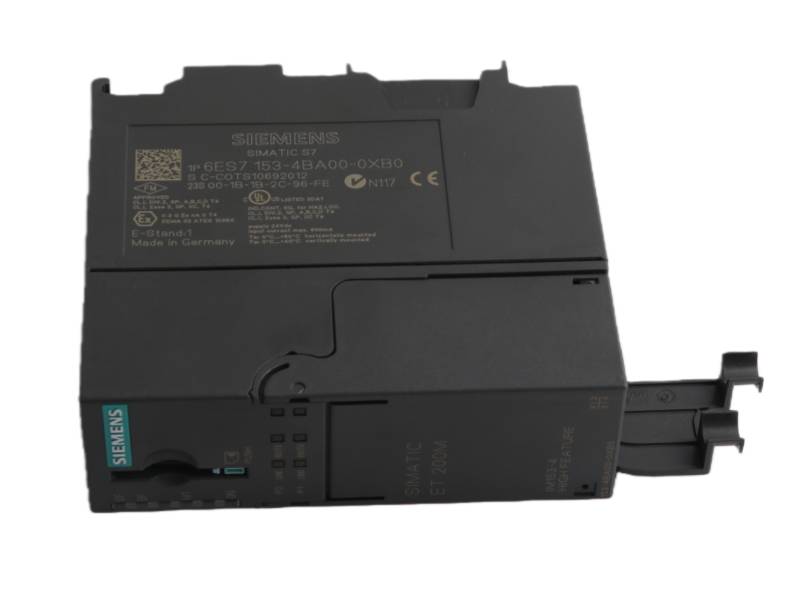

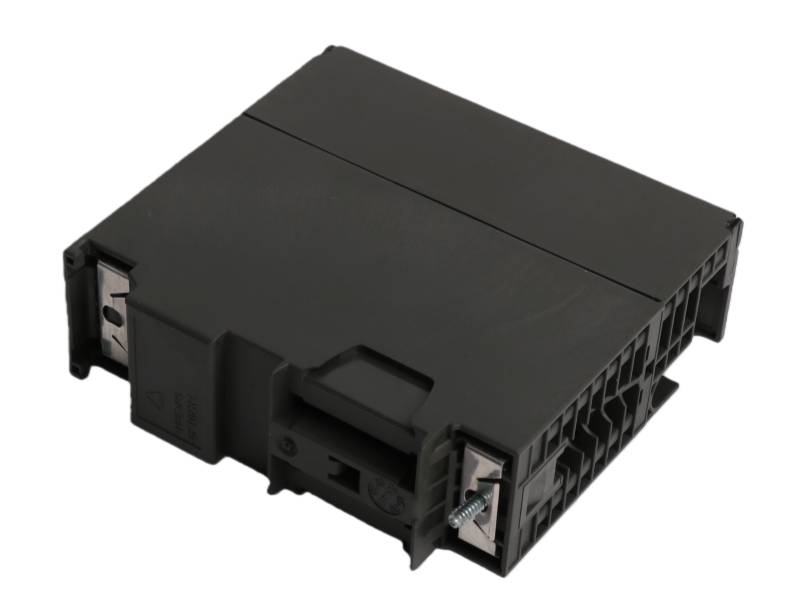

6ES7153-4BA00-0XB0 Overview

The ET 200S 6ES7 153-4BA00-0XB0 Siemens is an IM 153-4 PN IO Interface Module (High Feature) for ET 200M distributed I/O. It connects up to 12 S7-300 modules via PROFINET, supporting critical functions like fail-safe and HART modules, shared device, and media redundancy for reliable industrial communication.

Technical Data Summary

Product Model: Siemens IM 153-4 PN IO Interface Module, model 6ES7153-4BA00-0XB0.

Primary Function: High Feature communication interface for the ET 200M distributed I/O station.

Module Capacity: Connects and manages a maximum of 12 S7-300 I/O modules on its rack.

Advanced Protocols: Supports PROFINET IO, medium redundancy protocol, and functions as a shared device.

Special Module Support: Compatible with critical system components including fail-safe modules and HART modules.

Physical Data: Compact and lightweight, with a net weight of 0.258 kg and package dimensions of 15.2 x 12.8 x 5.2 cm.

FAQ

Q1: What is the function of the Siemens 6ES7153-4BA00-0XB0 module?

A1: It is a high-performance IM 153-4 PN IO interface module for the ET 200M distributed I/O station, enabling PROFINET connectivity.

Q2: How many S7-300 modules can be connected to this interface?

A2: It supports the connection of a maximum of 12 S7-300 I/O modules.

Q3: What advanced communication features does it support?

A3: It supports the medium redundancy protocol (MRP) for network reliability and can operate as a shared device.

Q4: Is it compatible with safety and smart instrument applications?

A4: Yes, it supports the integration of fail-safe modules and HART modules for safety and advanced process variable communication.

Q5: What is the product's lifecycle status?

A5: This is a spare part with a product lifecycle status of "Cancelled," but it remains a standard stocked item (Class A) for replacement.
