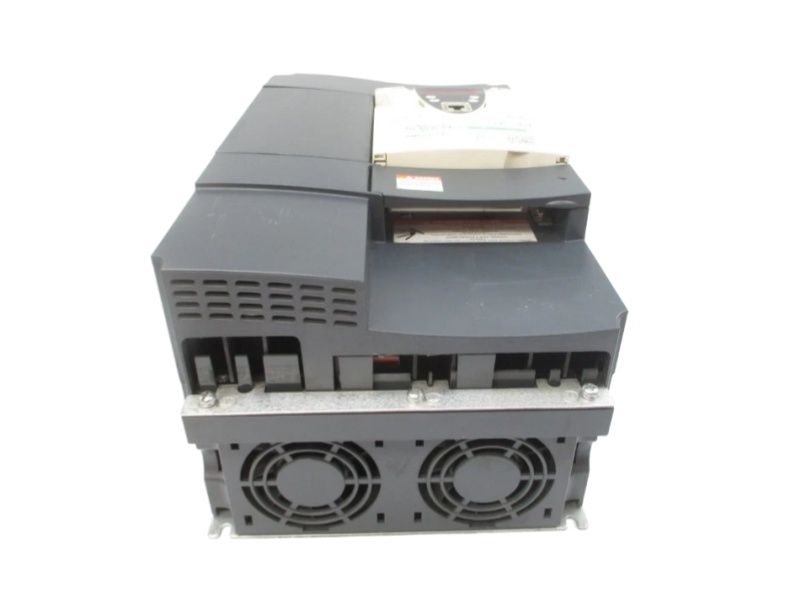

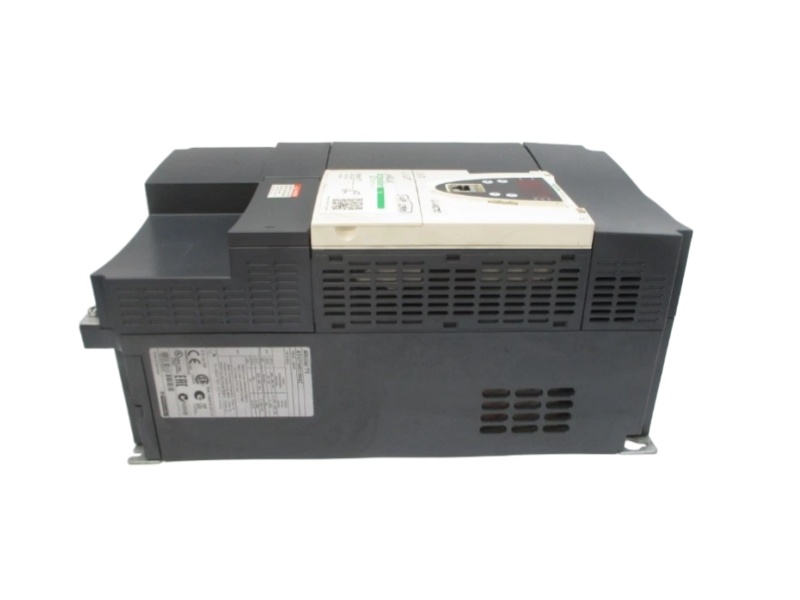

The Schneider Variable Speed Drive ATV71HD15N4Z is a 15 kW (20 hp) variable speed drive belonging to the robust Altivar 71 series, designed specifically for complex and high-power machinery. It operates on a standard three-phase power supply ranging from 380V to 480V, accommodating common industrial electrical systems with a tolerance of -15% to +10%. This makes the drive highly adaptable to various factory environments and voltage conditions, ensuring stable performance for demanding applications.

Electrical characteristics of the ATV71HD15N4Z Schneider IN STOCK include a line current of 39A at 480V, which increases to 48A when operating at 380V. A notable feature is its flexibility in installation, supporting motor cable lengths of up to 50 meters with shielded cable or 100 meters with unshielded cable. This provides significant design freedom for system integrators when planning machine layouts without compromising signal integrity or drive performance.

The unit comes equipped with an integrated EMC filter but is specified without a graphic terminal, indicating it is typically configured and monitored via external software or a centralized control system. With a sound power level of 60.2 dB, the Variable Speed Drive ATV71HD15N4Z is engineered for industrial acoustic environments. Weighing 3.2 kg, it represents a compact yet powerful solution for controlling motors in applications that require dynamic response and high torque capabilities.

In application, the primary role of the Drive ATV71HD15N4Z Schneider is to provide precise speed and torque control for three-phase motors, enhancing the efficiency and performance of sophisticated machinery. The design philosophy behind the SCHNEIDER ATV71HD15N4Z focuses on reliability and integration into automated systems, helping to reduce energy consumption and mechanical stress on driven equipment, thereby extending the operational lifespan of the entire machine.
