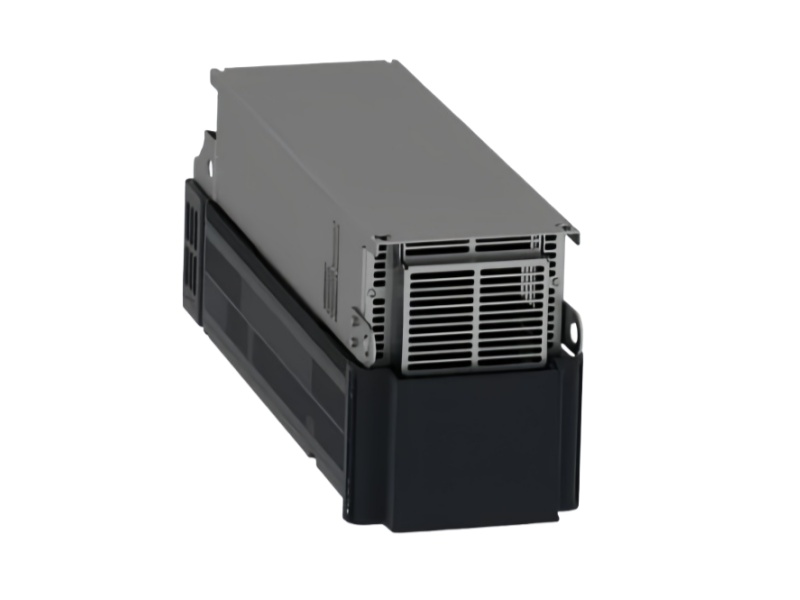

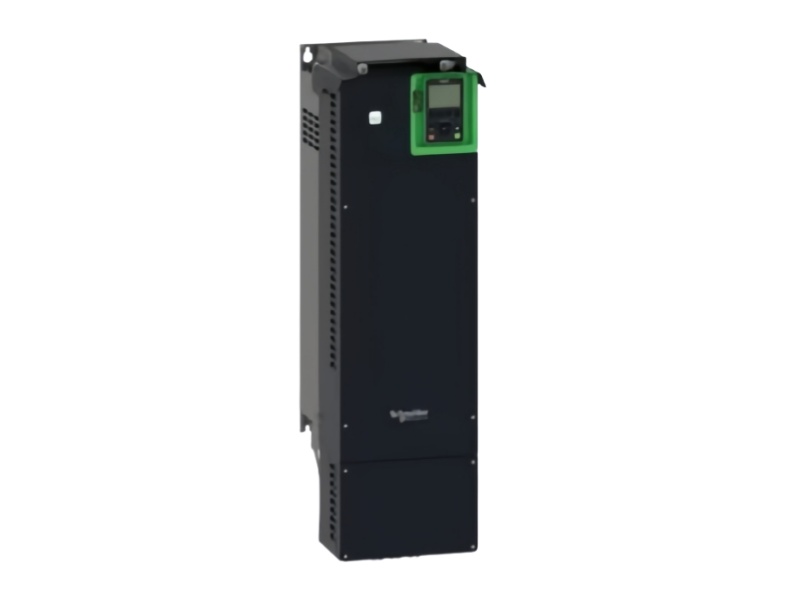

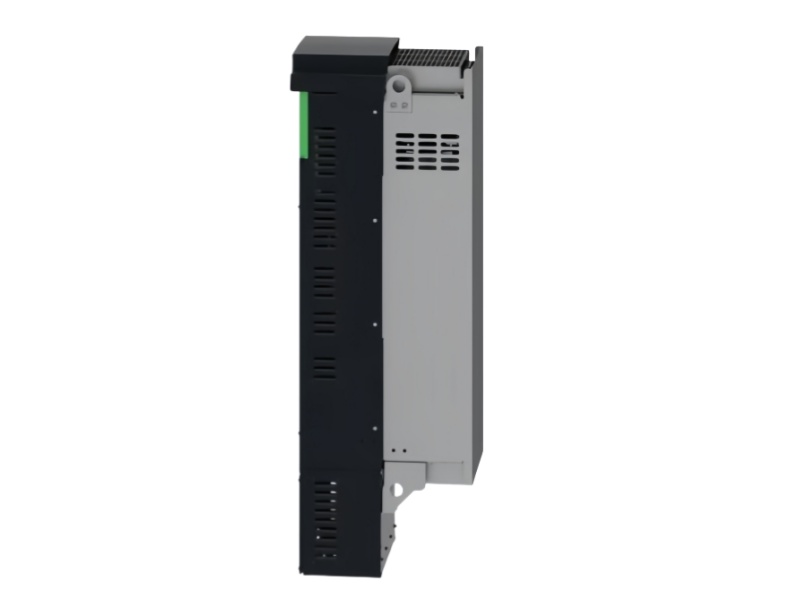

The Variable Speed Drive Schneider ATV630D75N4 is a robust variable speed drive from the Altivar Process ATV600 series, designed for heavy-duty industrial applications requiring precise motor control and energy efficiency. This drive delivers 75kW (100hp) output power with a voltage range of 380-480V AC, making it suitable for controlling both synchronous and asynchronous three-phase motors. The ATV630D75N4 Schneider Electric Inverter Drive features an IP21 protection rating and UL Type 1 enclosure, providing enhanced protection against dust and water ingress while ensuring compliance with North American safety standards. Its substantial weight of 58kg and dimensions of 290x922x323mm reflect its industrial-grade construction.

Engineered for process applications, the Schneider ATV630D75N4 Variable Speed Drive incorporates innovative "Stop and Go" technology that delivers up to 30% energy savings during standby operations without additional costs. The drive supports moderate overloads up to 120% for 75kW applications and higher overloads up to 150% for 55kW applications, providing flexibility for different process requirements. It includes comprehensive communication capabilities with three built-in RJ45 ports, one Ethernet port, and two serial ports, enabling seamless integration into industrial networks.

The technical architecture of the ATV630D75N4 AC Drive Schneider focuses on fluids management processing and energy conservation, making it ideal for water treatment, wastewater management, mining, and oil and gas applications. The drive supports various accessories including fan kits, graphic display terminals, I/O expansion modules, and EMC input filters, allowing customization based on specific application needs. It is designed for vertical wall mounting with a tolerance of ±10 degrees, ensuring proper installation in industrial environments.

Implementation of the Schneider ATV630D75N4 enhances process efficiency and reduces total cost of ownership through advanced energy management and asset protection features. The drive's robust design and advanced control capabilities make it particularly valuable in demanding industries such as food and beverage, minerals processing, and utilities where reliable motor control is essential. It represents Schneider Electric's commitment to providing sophisticated drive solutions that optimize energy usage while maintaining operational excellence in process applications.
