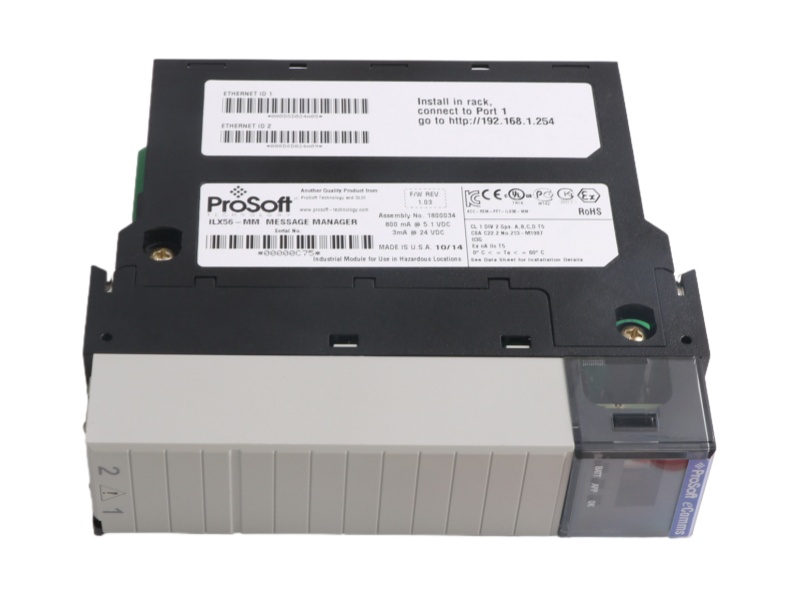

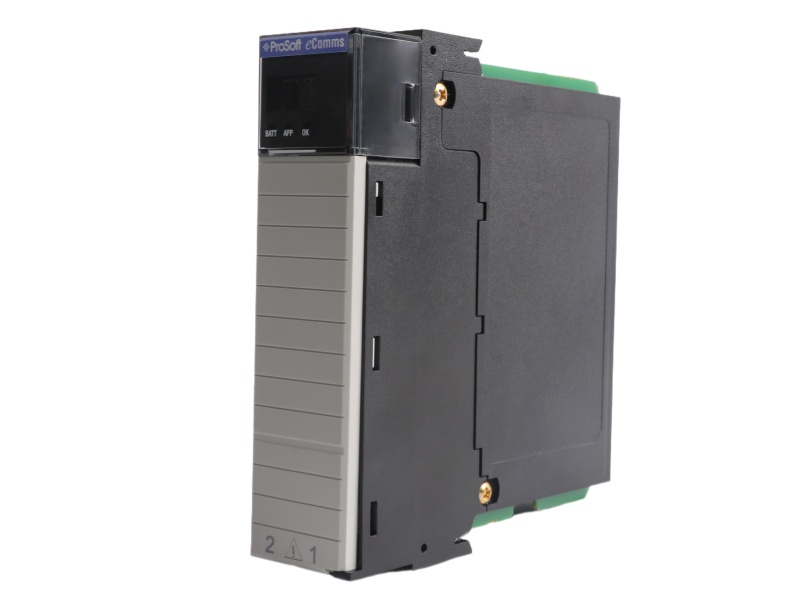

Prosoft ILX56-MM Communications Interface Module

Inquiry now

ILX56-MM Product datasheet

Model number:	ILX56-MM	Module Type：	Communications Interface Module
Manufacture:	Prosoft	Condition：	Brand New
Range of Product:	Prosoft	Lead time：	In Stock
Weight:	0.22kg	HS CODE：	8537101190
Dimension:	3.5x14x14.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

ILX56-MM Description

The Communications Interface Module ILX56-MM Prosoft is a high-performance Message Manager designed for industrial communication, specifically developed for devices supporting the Allen-Bradley ControlLogix platform. It enables efficient data exchange between ControlLogix I/O-compatible processors and other protocol-compatible modules, ensuring seamless integration across diverse industrial systems.

Operating on 5 Volts DC with a current draw of up to 1 Amp, the Prosoft ILX56-MM Module uses its two Ethernet ports to transfer messages between different systems, providing reliable connectivity between Rockwell Automation systems and devices from other manufacturers, such as Siemens or Schneider Electric.

The ILX56-MM Prosoft ControlLogix I/O compatible processors can be installed directly in the same chassis as a ControlLogix PAC, allowing data transfer across the backplane. This capability enables the ILX56-MM Prosoft communication module to bridge communications between Rockwell Automation modules and other protocols effectively, simplifying system integration and configuration.

For installation, the Prosoft ILX56-MM Communications Interface Module includes a setup jumper labeled J1, and it supports hot-swapping, allowing insertion or removal while chassis power is applied. Its compact design, weighing only 0.26 kg with an estimated shipping size of 3.5 × 14 × 14.5 cm, ensures flexible deployment in industrial environments.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Prosoft	PS69-DPS	Prosoft	MVI71-AFC	Prosoft	MVI56-HART
Prosoft	PS69-DPM	Prosoft	MVI71-ADM	Prosoft	MVI56-GSC
Prosoft	PLX32-EIP-PND	Prosoft	MVI69-MNETC	Prosoft	MVI56-AFC
Prosoft	PLX31-MBTCP-MBS	Prosoft	MVI69L-MBTCP	Prosoft	MVI56E-MNETXT
Prosoft	PLX31-EIP-PND	Prosoft	MVI69L-MBS	Prosoft	MVI56E-MNETR
Prosoft	PLX31-EIP-MBS	Prosoft	MVI69-DFNT	Prosoft	MVI56E-MNETCR
Prosoft	PC56-2K-IDE	Prosoft	MVI69-ADMNET	Prosoft	MVI56E-MNET
Prosoft	MVI94-MCM	Prosoft	MVI69-ADM	Prosoft	MVI56E-MCMXT
Prosoft	MVI94-ADM	Prosoft	MVI56-PDPMV1	Prosoft	MVI56E-MCMR
Prosoft	MVI71-MNET	Prosoft	MVI56-MDA4	Prosoft	MVI56E-MCM

Battery Life Advisory

This module uses a Lithium Vanadium Pentoxide battery to back up the date/time settings of the real-time clock and the BIOS settings in CMOS. The battery recharges whenever the module is receiving power and should not need to be replaced for the life of the module. The module must be powered for approximately twenty hours before the battery becomes fully charged.

If the module is left in an unpowered state for approximately 21 or more days, the battery will be completely drained, and the module BIOS, date, and time will revert to their default settings. Before removing a module from its power source, ensure the battery is fully charged. You can confirm the battery is fully charged when the Battery State (ERR) LED is OFF.
