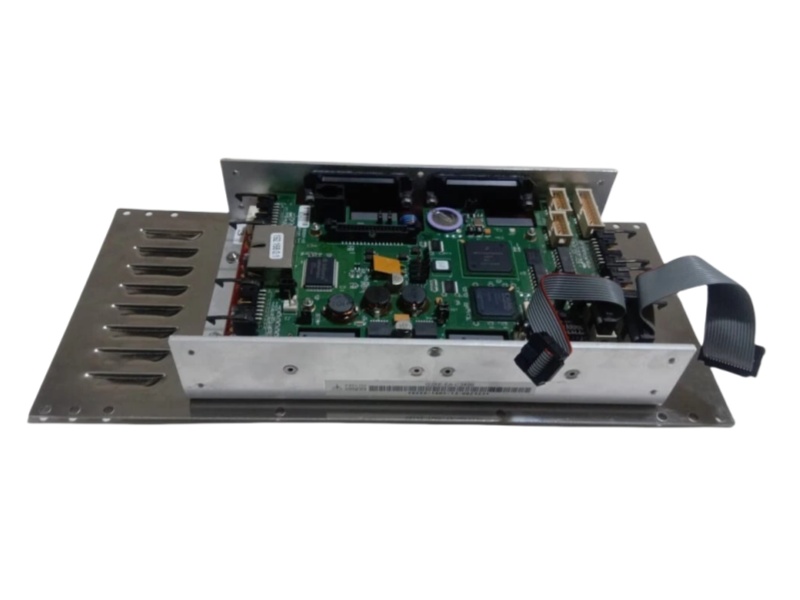

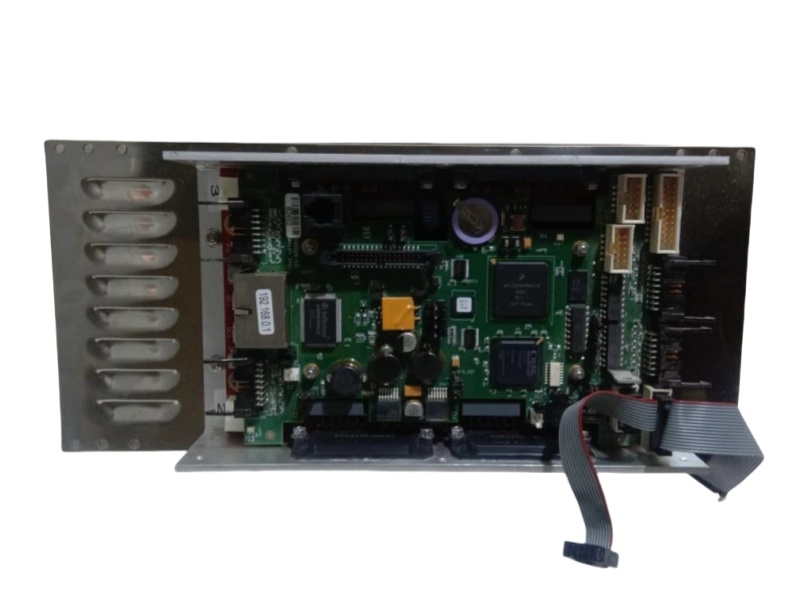

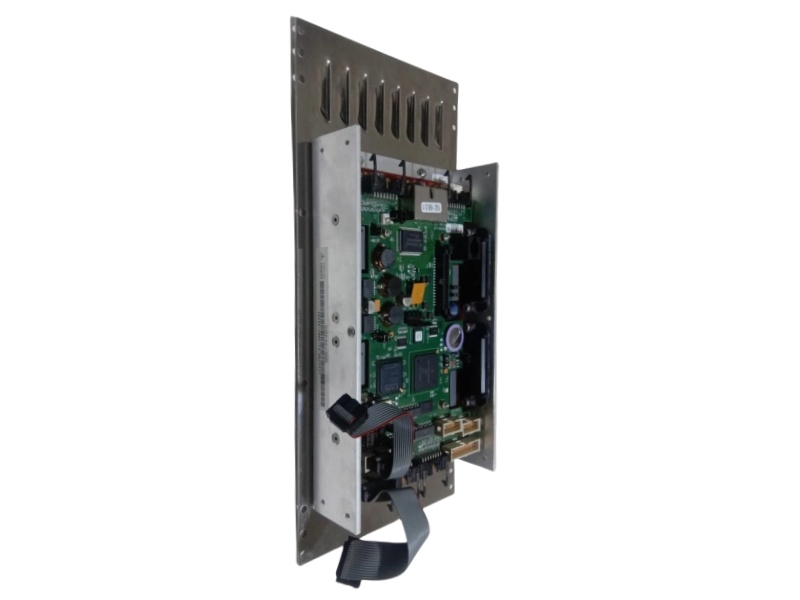

The Guidance Controllers G2XE-EA-C2420 is a high-performance motion controller designed for advanced industrial automation applications. It features an integrated PWM servo drive with a 24V DC bus voltage, capable of delivering a peak current of 20A per axis and a continuous current of 10A per axis. This makes the G2XE-EA-C2420 PRECISE AUTO MATION GUIDANCE CONTROLLERS 2000C ideal for controlling precision motion in various machinery, including SCARA robots and linear stages.

Supporting up to four axes of control, the Precise Automation Guidance System G2XE-EA-C2420 can be expanded to handle eight axes via EtherCAT connectivity. It offers 16-bit analog outputs to provide precise and smooth motion control. The controller’s advanced dual-core ARM Cortex-A9 processors combined with FPGA-based motion planning ensure a fast path update rate of 2 kHz, enhancing performance and responsiveness.

Connectivity is versatile with support for EtherCAT, Ethernet, and RS-232 protocols, allowing easy integration into existing automation networks. The controller includes 24 opto-isolated digital I/O channels, enabling reliable signal interfacing with external devices. Compact in size, the Industrial Control Components Precise Automation G2XE-EA-C2420 Guidance Controllers 200C measures 18.5 x 18.5 x 10.5 cm, making it suitable for space-constrained environments.

Designed to operate efficiently within a temperature range of 0°C to 40°C and humidity levels of 10% to 90% non-condensing, the Guidance Controllers  2000C Precise Automation G2XE-EA-C2420 ensures reliable operation under typical industrial conditions. This robust and scalable motion controller is a trusted solution for precision automation control.
