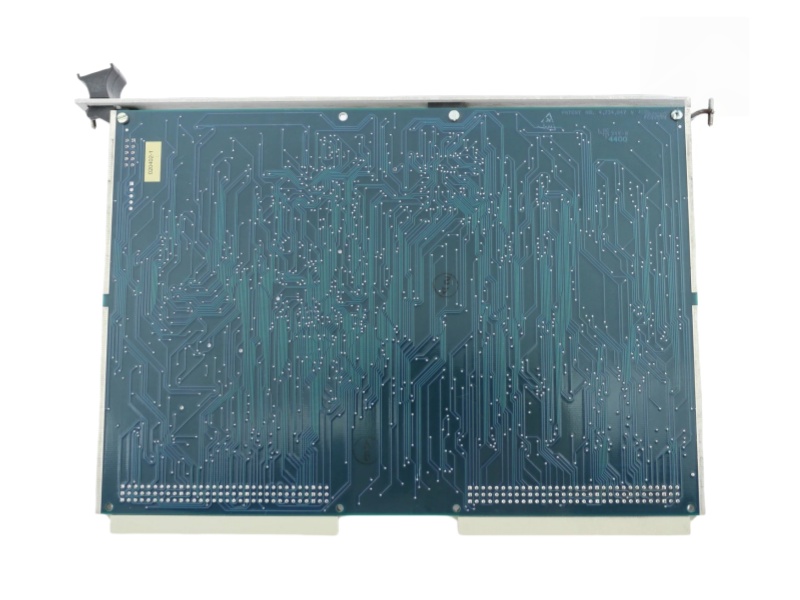

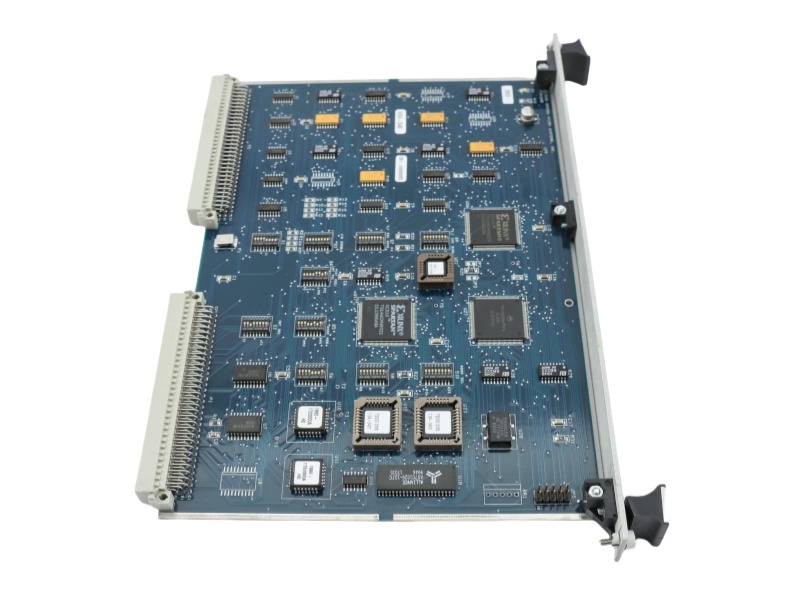

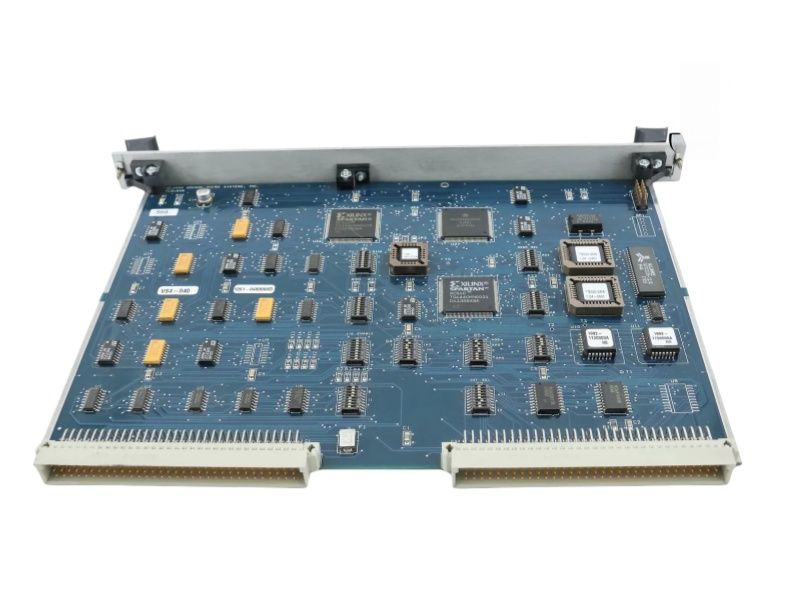

The Semiconductor Equipment suppliers AMAT 0190-03503 is a precision-engineered motion control PCB assembly designed for integration into Applied Materials semiconductor manufacturing equipment. With an input voltage of +24 VDC (±10%) and power consumption of 45W, the AMAT 0190-03503 PCB Assy Motion Control ensures reliable and consistent performance across demanding automation environments. It provides critical motion control functions necessary for wafer handling and positioning systems.

This component supports high-resolution positioning with an accuracy of ±0.1 µm and a velocity range from 0.001 to 2.5 m/s. The AMATPCB ASSY MOTION CONTROL 0190-03503 also features programmable S-curve jerk control, allowing for smooth acceleration profiles in precision tasks. Its synchronization capabilities enable multi-axis coordination with a skew as low as ±5 ns, which is vital for maintaining alignment during simultaneous movement.

Built with an isolation rating of 1500 VAC between logic elements, the Control System Spares AMAT 0190-03503 offers dependable protection against electrical noise and overcurrent. It operates effectively within a temperature range of 5°C to 55°C and withstands vibration conditions up to 2 Grms over 5–500 Hz.

Compact in size and weighing just 0.38 kg, the PCB Assy Motion Control AMAT 0190-03503 is ideal for space-limited installations. Its rugged design and performance capabilities make it a critical asset in high-precision semiconductor fabrication systems.
