MCC95-16IO1B Overview

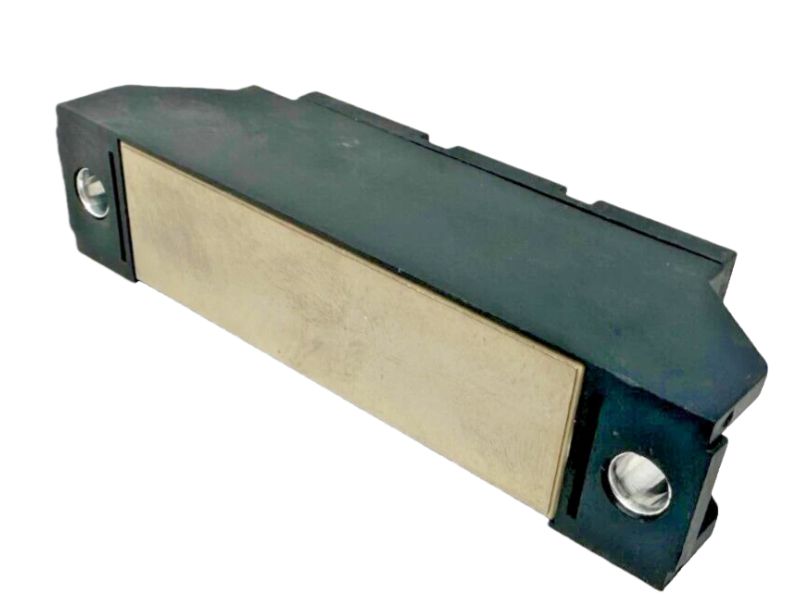

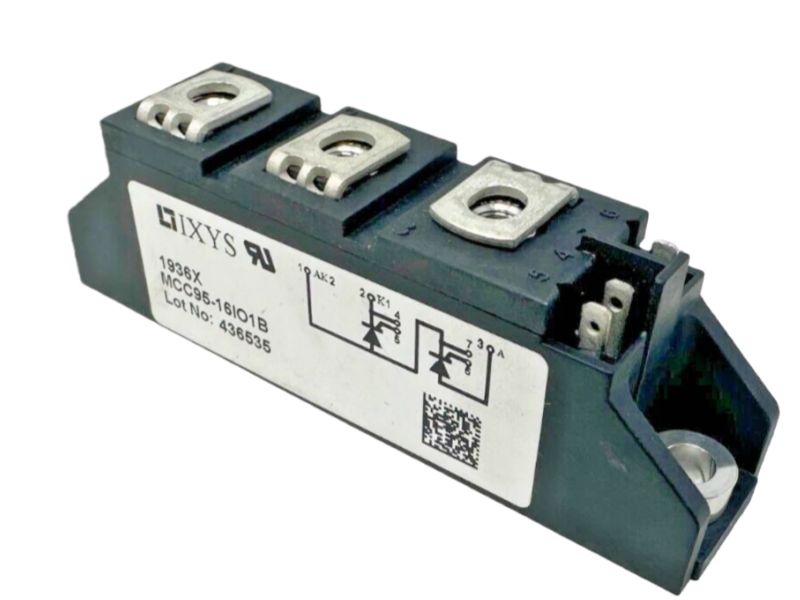

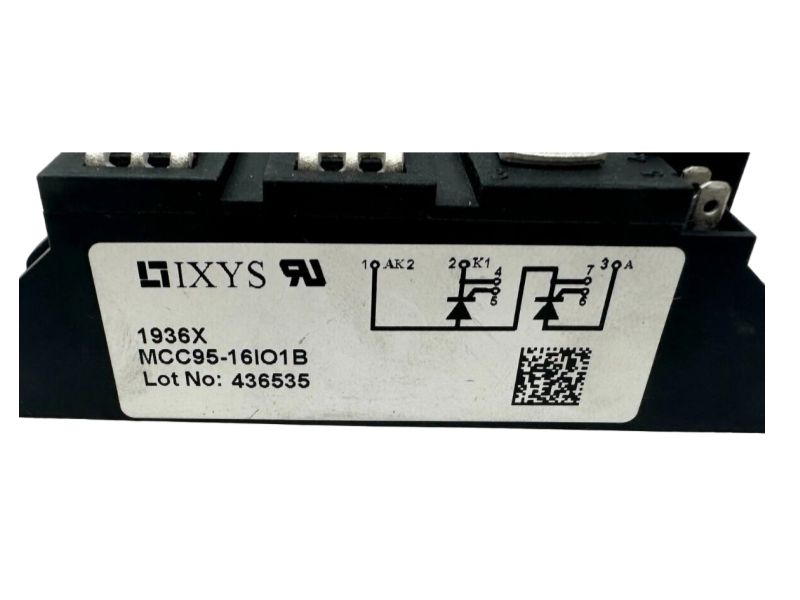

The Thyristor Module MCC95-16IO1B IXYS is a thyristor module with a planar passivated chip and DCB ceramic base, designed for AC power control, motor control, and converter applications in a TO-240AA package.

Application Scenarios of IXYS MCC95-16IO1B

Line Rectification: Used for converting standard 50/60 Hz AC mains power to DC.

Motor Control: Enables soft-start for AC motors and speed/torque control for DC motors.

Power Conversion: Serves as a core component in various power converter circuits.

AC Power Regulation: Provides controlled switching for AC power in industrial systems.

Lighting & Heating: Enables efficient dimming and temperature control in lighting and heating applications.

General Control: Applicable in power control systems requiring stable, high-current thyristor switching.

FAQ

Q1: What is the main semiconductor technology used in the MCC95-16IO1B module?

A1: It utilizes a thyristor designed for line frequency applications.

Q2: What are the key structural advantages of this module?

A2: It features a planar passivated chip and a Direct Copper Bonded (DCB) Al2O3-ceramic substrate for enhanced reliability and power cycling.

Q3: What is the package type, and is it environmentally compliant?

A3: It comes in the industry-standard TO-240AA package and is compliant with RoHS regulations.

Q4: What are the primary industrial applications for this component?

A4: It is primarily used for AC motor soft-start, DC motor control, line rectification, and AC power control.

Q5: What makes this module suitable for power control systems?

A5: Its design ensures long-term stability, effective thermal management via the ceramic base plate, and can be soldered directly to a PCB for simplified mounting.
