TC-501-02-6M5 Product datasheet

TC-501-02-6M5 Functional Description

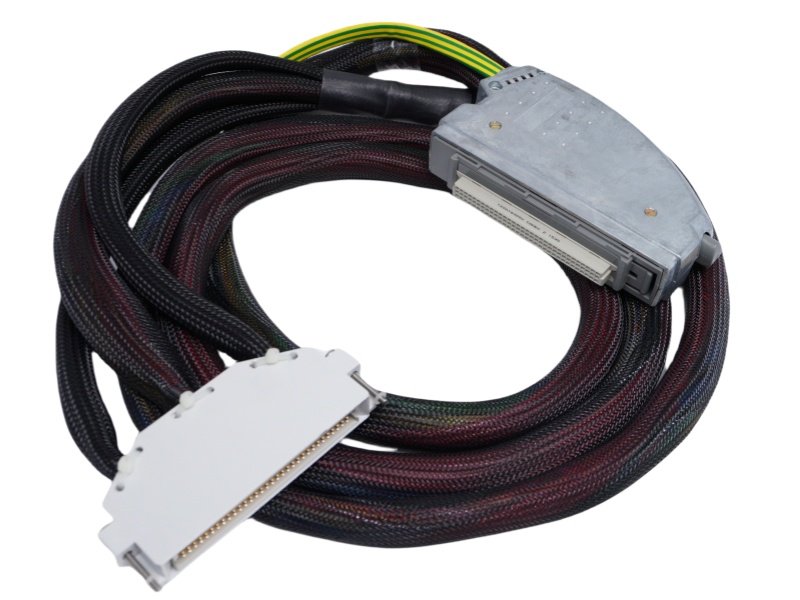

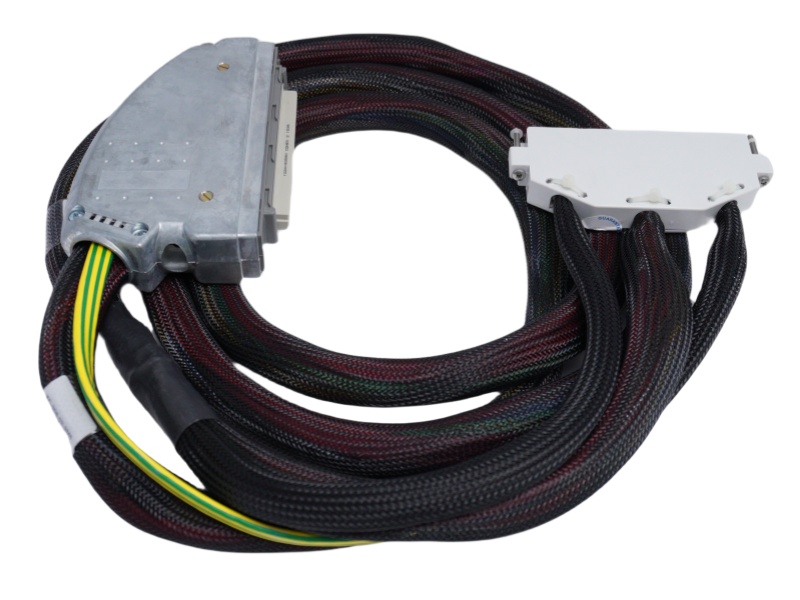

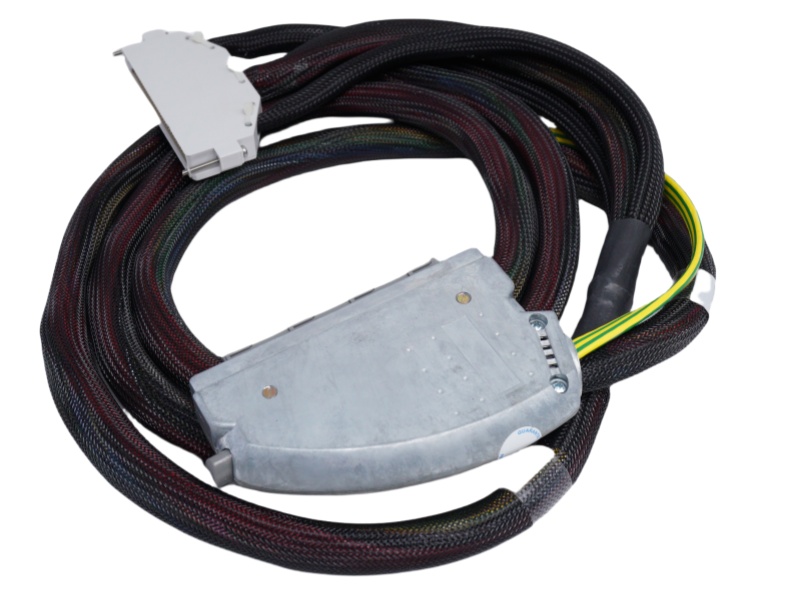

The ICS Triplex TC-501-02-6M5 Trusted I/O SmartSlot Cable is a specialized 6-meter SmartSlot cable designed for secure signal transmission between Trusted® I/O modules and Field Termination Assemblies (FTAs). This rugged TC-501-02-6M5 Analog Channel Output Module cable features a 96-way type 'C' connector at the chassis end and a matching type 'R' connector at the remote end, ensuring reliable connections in safety-critical industrial applications.

The ICS Triplex TC-501-02-6M5 supports up to 40 channels of analog or digital signals with exceptional noise immunity. Its 1.5m stripped ends are protected by durable nylon Rilgain sheathing, with heat-sealed terminations that prevent fraying - a design detail that makes the ICS Triplex TC-501-02-6M5 particularly suitable for vibration-prone environments.

The TC-501-02-6M5 ICS Triplex PDF incorporates comprehensive shielding with braided sheath connections at both ends for proper grounding. The remote end features a dedicated green wire for screen earth termination, demonstrating how the ICS Triplex TC-501-02-6M5 prioritizes signal integrity and electromagnetic compatibility in complex control systems.

As part of ICS Triplex's Trusted® platform, this cable solution is optimized for nuclear, oil & gas, and other high-reliability applications where failure is not an option. The TC-501-02-6M5 ICS Triplex in Stock delivers the robust performance expected from industry-leading safety systems.
