T8314C Product datasheet
|
Model number: |
T8314C |
|
Module Type： |
Trusted CCoat Fiber Tx Rx Unit |
|
Manufacture: |
ICS Triplex |
|
Condition： |
Brand New |
|
Range of Product: |
ICS Regent Control System |
|
Lead time： |
In Stock |
|
Weight: |
1.2 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3x30.2x26.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
T8314C Functional Description

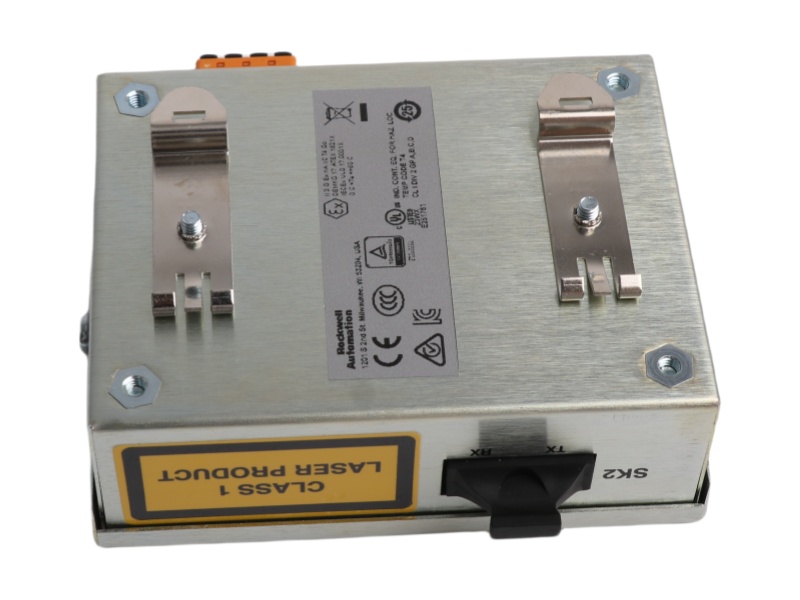

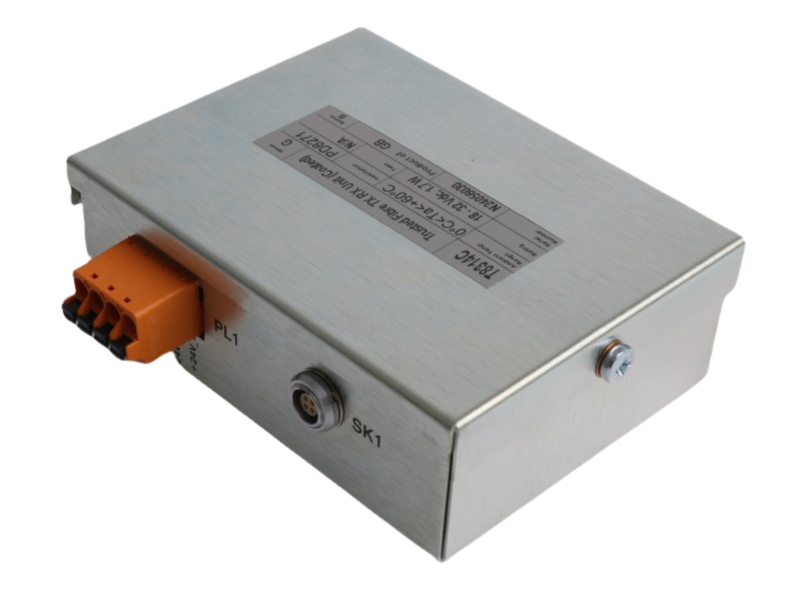

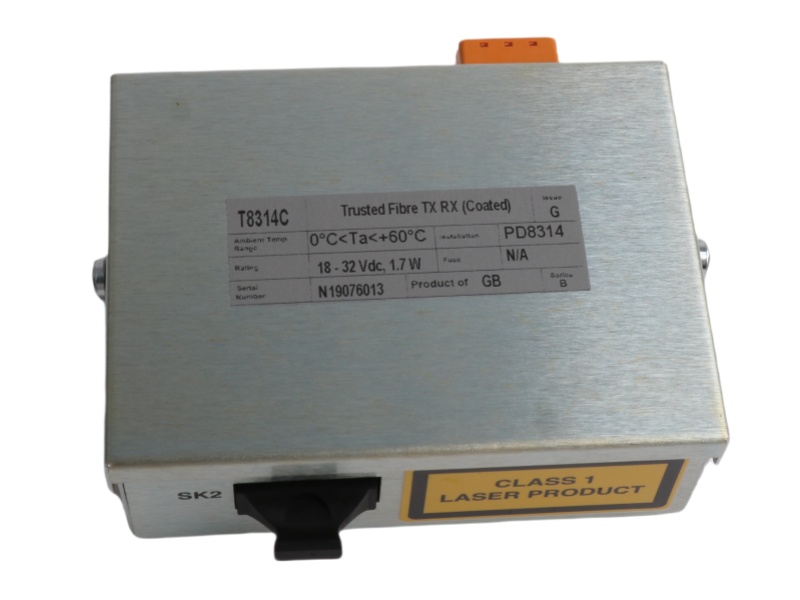

The ICS Triplex T8314C Trusted CCoat Fiber Tx Rx Unit is a DIN rail-mounted fiber optic transceiver unit designed for seamless integration with Trusted Controller Chassis T8100 systems. This robust unit converts PECL signals from Trusted Expander Interface Modules into optical signals using high-quality fiber-optic transceivers, ensuring reliable data transmission in critical industrial applications.
Engineered for mission-critical operations, the T8314C Extender Interface Adapters ICS Triplex features advanced signal processing with isolators, filters, and termination circuits. The unit supports single-mode fiber-optic cables for long-distance communication between controller and expander chassis, maintaining signal integrity through its precise PECL conversion technology.
The ICS Triplex Triple Single Controller T8314C operates on a dual 24V DC power supply for enhanced redundancy. Six units (three at each end) form a complete remote link, with each T8314C ICS Triplex PDF functioning independently to allow hot-swapping without system interruption. This design ensures continuous operation in demanding industrial environments.
With plug-and-play installation requiring no configuration, the Trusted Extender Interface Adapters ICS Triplex T8314C delivers exceptional reliability for safety-critical systems. Its fault-tolerant architecture and robust construction make it ideal for applications where uninterrupted communication is paramount.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
