T8442C Product datasheet

T8442C Functional Description

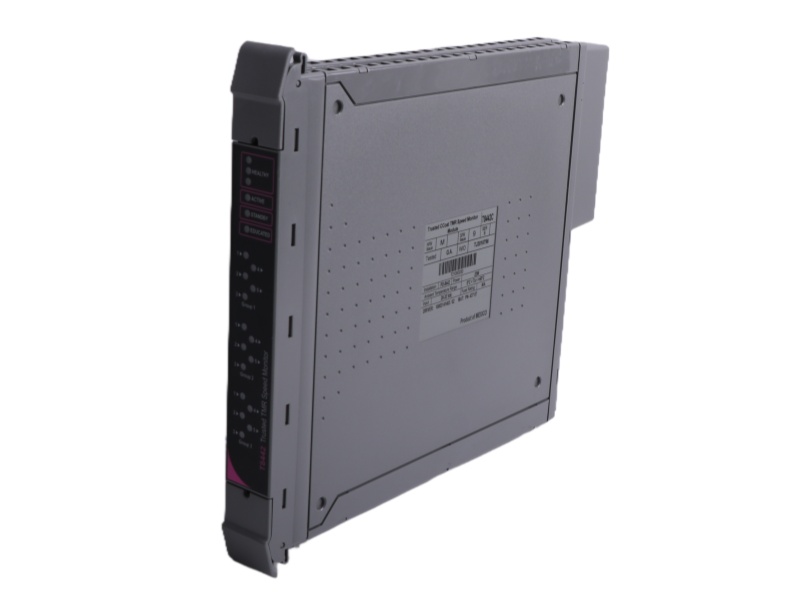

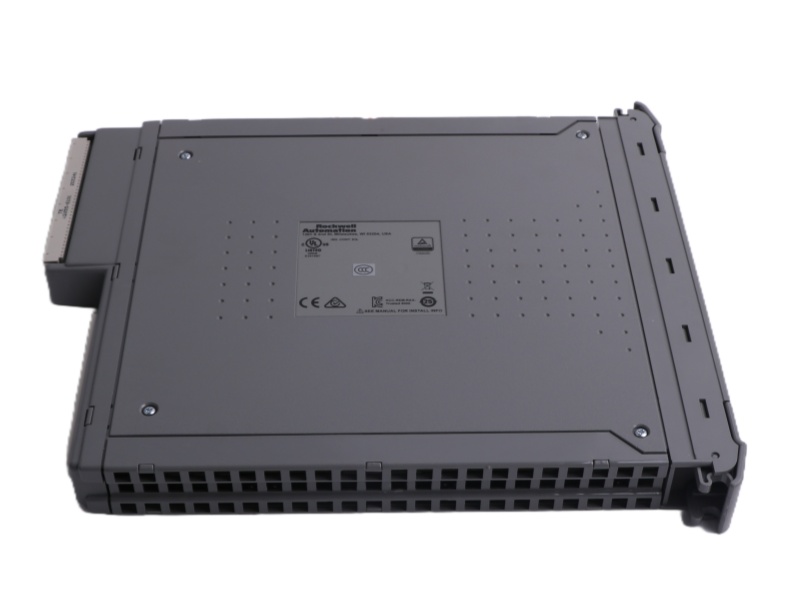

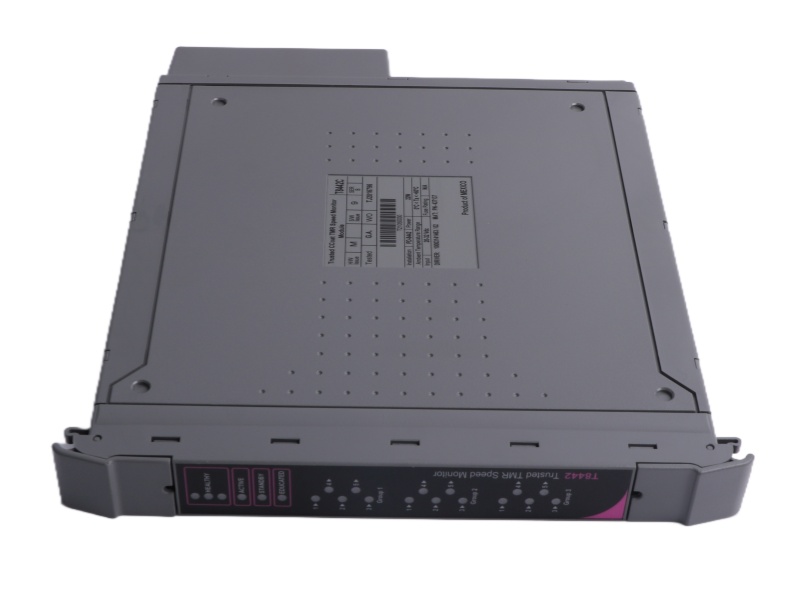

The Speed Monitor T8442C ICS Triplex is a high-density speed monitor module designed for the Trusted TMR (Triple Modular Redundant) System, providing critical safety monitoring for industrial automation applications. This robust module originates from the United States and features compact dimensions of 16x16x12cm with a weight of 0.8kg, making it suitable for space-constrained installations. The ICS Triplex triplicated speed monitor module T8442C incorporates comprehensive internal diagnostics that detect both covert and overt failures, ensuring reliable operation in safety-critical environments. Its hardware implementation enables rapid fault detection for most system elements, maintaining system integrity through advanced monitoring capabilities.

Engineered with triple modular redundancy architecture, the T8442C ICS Trusted TMR System Module offers inherent fault tolerance and comprehensive self-test facilities that provide optimum safety availability. The module's diagnostic capabilities include coordinated self-tests that can be completed even during system demand, ensuring continuous operation without compromising safety functions. It supports discrepancy and deviation monitoring features that enhance verification and fault detection capabilities, contributing to the system's overall reliability in critical process applications.

The technical design of the ICS Trusted TMR System Module T8442C incorporates line-monitoring facilities recommended for safety-related I/O applications, particularly in energize-to-trip configurations. This module operates within the Trusted System's framework, supporting both active-standby and SmartSlot configurations for flexible deployment options. It demonstrates compatibility with various architecture options, allowing engineers to evaluate and select the most suitable configuration based on specific application requirements and safety considerations.

Implementation of the ICS Trusted TMR System T8442C enhances system safety through its advanced monitoring capabilities and fault-tolerant design. The module's ability to withstand multiple faults and support online repair configurations makes it particularly valuable in high-demand safety applications where continuous operation is essential. It represents ICS Triplex's commitment to providing reliable safety solutions that meet the stringent requirements of industrial automation systems, ensuring fail-safe operation even under multiple fault conditions.
