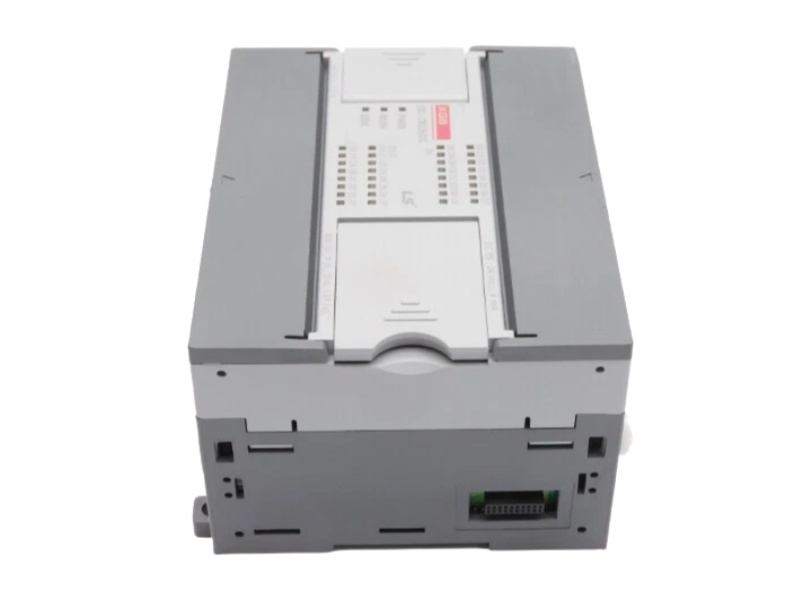

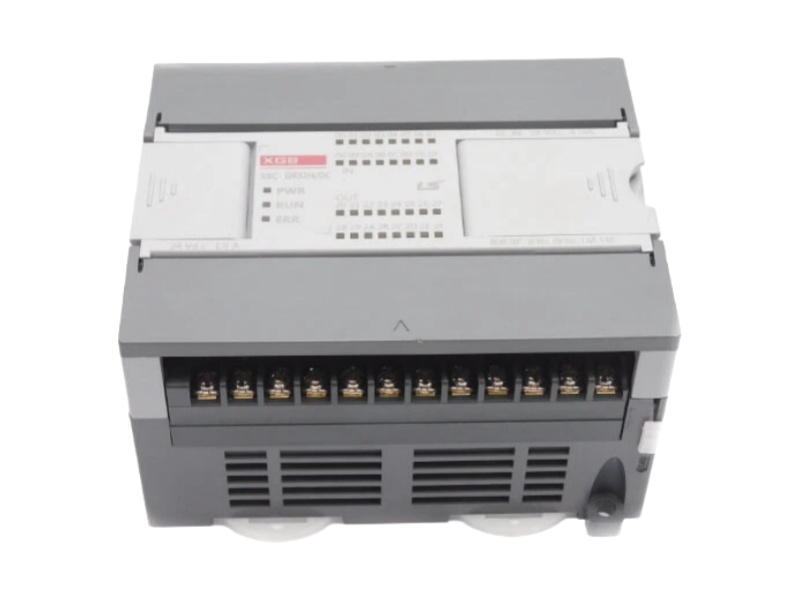

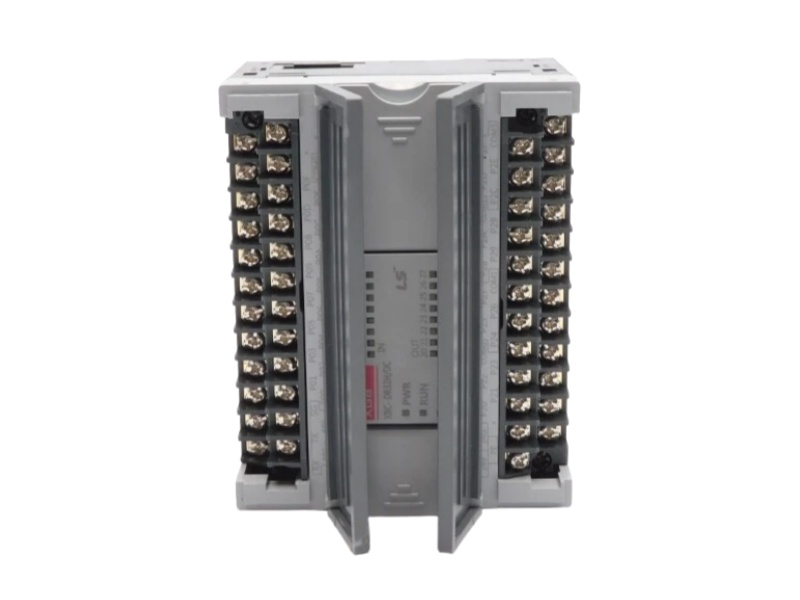

Honeywell MLC-DR64H/DC Digital Output Module

Inquiry now

MLC-DR64H/DC Product datasheet

Model number:	MLC-DR64H/DC	Module Type：	Digital Output Module
Manufacture:	HONEYWELL	Condition：	Brand New
Range of Product:	HONEYWELL	Lead time：	In Stock
Weight:	0.4kg	HS CODE：	8537101190
Dimension:	7x14x14.5cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	active	Communication Service:	Ethernet router

MLC-DR64H/DC Functional Description

The Digital Output Module Honeywell MLC-DR64H/DC is a high-density 64-point digital I/O module designed for the MasterLogic ML50 system, integrating 32 DC inputs and 32 relay outputs in a single compact unit. This versatile module operates on 24V DC power and provides comprehensive control capabilities for industrial automation applications requiring extensive I/O points. The CPU Units MLC-DR64H/DC Honeywell features relay insulation and supports rated load ratings of DC24V 2A for resistive loads or AC220V 2A with unity power factor, making it suitable for various field device connections.

The output section of the Honeywell MLC-DR64H/DC PLC Power Supply Module demonstrates impressive electrical characteristics, handling maximum load voltages of AC250V or DC125V with a 2A current capacity per point. The module maintains minimal OFF leakage current of 0.1mA at AC220V/60Hz and supports a maximum switching frequency of 3,600 operations per hour. These specifications ensure reliable performance in demanding industrial environments while providing precise control over connected equipment.

Weighing 1.32 kg, the MLC-DR64H/DC Honeywell Relay Digital Output Module incorporates 5A common terminal capacity and supports minimum load requirements as low as DC5V/1mA. The module's design emphasizes operational flexibility and durability, featuring robust construction that withstands industrial environmental challenges. The Honeywell MLC-DR64H/DC maintains consistent performance across various load conditions while ensuring electrical isolation and protection for connected control systems.

Through its combination of high point density and reliable relay output performance, the Honeywell MLC-DR64H/DC Digital Output Module provides an efficient solution for space-constrained control panels requiring extensive I/O capabilities. This module exemplifies Honeywell's commitment to manufacturing industrial control components that meet the evolving needs of modern automation systems, offering engineers a dependable solution for machine control, process automation, and other applications where high-density digital I/O control is essential for operational efficiency and system reliability.
