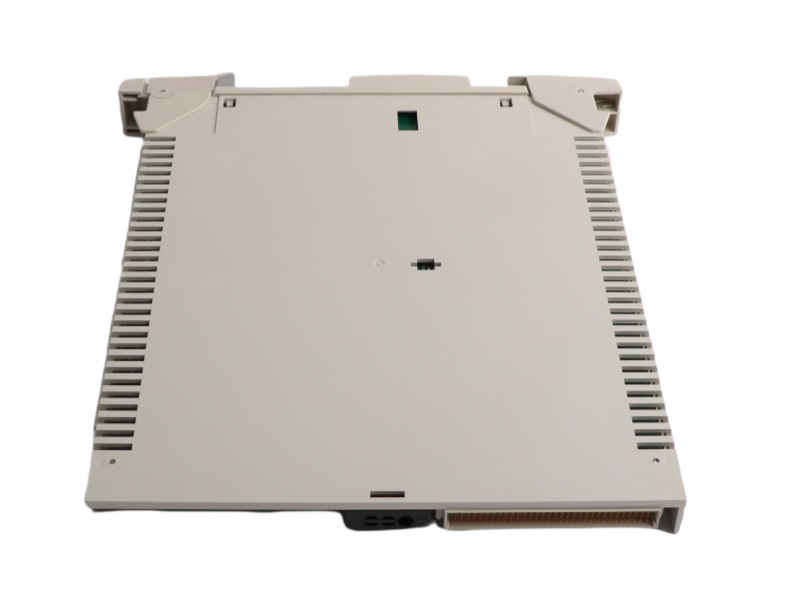

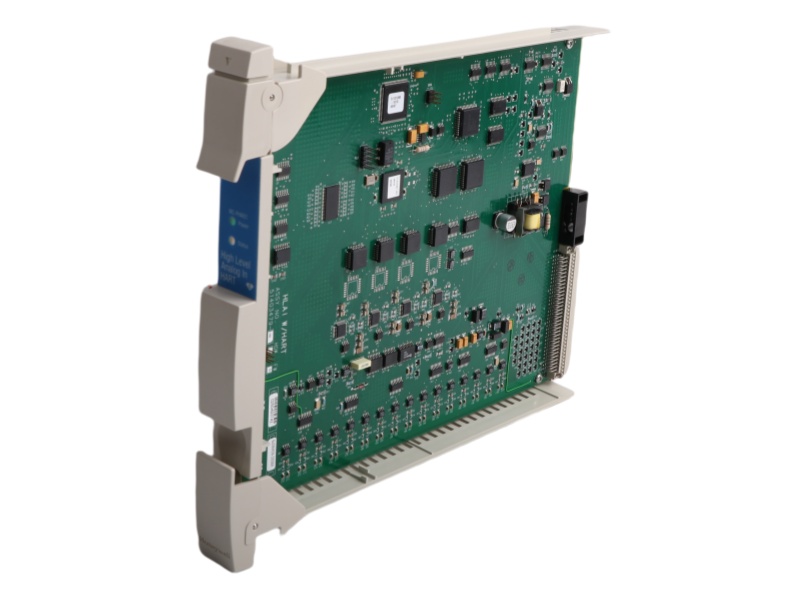

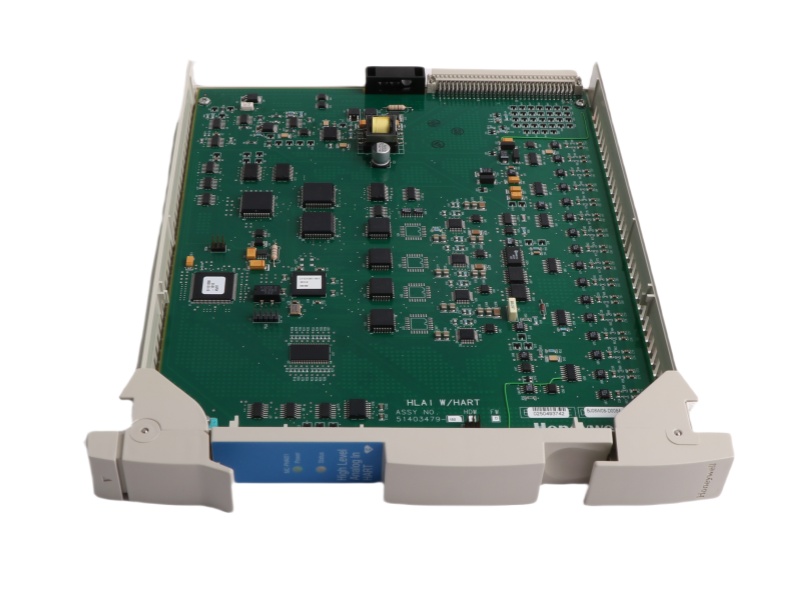

MC-PHAI01 51403479-150 Product datasheet
|
Model number: |
MC-PHAI01 51403479-150 |
|
Module Type： |
C300 Analog Input Module |
|
Manufacture: |
Honeywell |
|
Condition： |
Brand New |
|
Range of Product: |
Honeywell |
|
Lead time： |
In Stock |
|
Weight: |
0.42kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3cm x 31.8cm x 27.7 cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
MC-PHAI01 51403479-150 Functional Description
The MC-PHAI01 51403479-150 HONEYWELL DCS MODULE is a C300 series AI module designed for advanced process control applications, featuring dual I/O link support at configurable speeds of 375 Kbaud (PM) or 750 Kbaud (C Series). This Honeywell MC-PHAI01 51403479-150 module operates with a 50ms base execution period and supports redundant configurations, making it ideal for critical industrial automation systems requiring high reliability. Its compact 3×31.8×27.7cm design (0.42kg weight) enables flexible installation while maintaining robust performance in demanding environments.
As part of Honeywell's distributed control solutions, the Honeywell MC-PHAI01 51403479-150 C300 Analog Input Module offers unique device index configuration capability (1-510 range) and supports remote I/O operations through FTE networks with mandatory control firewall connections. The Honeywell MC-PHAI01 51403479-150 demonstrates exceptional measurement precision with IEEE C37.118 compliance, delivering synchrophasor data with <1% TVE accuracy and ±1μs time synchronization for power grid stability monitoring applications. Its 150VA current transformer rating ensures reliable performance in energy measurement scenarios.
The Analog Input Module MC-PHAI01 51403479-150 Honeywell provides versatile integration options, working seamlessly with both -PM and A-series I/O modules during its 50ms execution cycles. This module's 6-foot IOTA size and dual-speed I/O link support (375/750 Kbaud) enable optimized communication in complex control architectures. The Honeywell C300 Analog Input Module Honeywell MC-PHAI01 51403479-150 is particularly valuable for smart grid applications where synchronized phasor measurement and precise equipment monitoring are essential for system stability.
Engineered for industrial durability, the MC-PHAI01 51403479-150 Honeywell combines compact packaging with high-performance capabilities, serving as a critical component in modern distributed control systems. Its redundant configuration support and remote I/O capabilities make it suitable for power generation, oil & gas, and other process industries requiring uninterrupted operation and precise real-time data acquisition for optimal control system performance.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
