1LS1-4PG Product datasheet
|
Model number: |
1LS1-4PG |
|
Module Type： |
Limit Switches |
|
Manufacture: |
Honeywell |
|
Condition： |
Brand New |
|
Range of Product: |
Honeywell |
|
Lead time： |
In Stock |
|
Weight: |
0.26kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
12.5x4x5.8cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
1LS1-4PG Functional Description

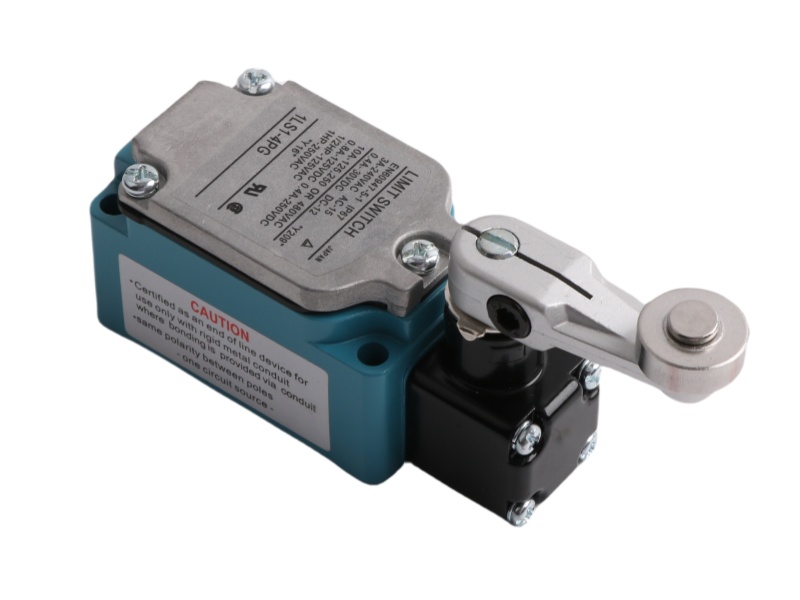

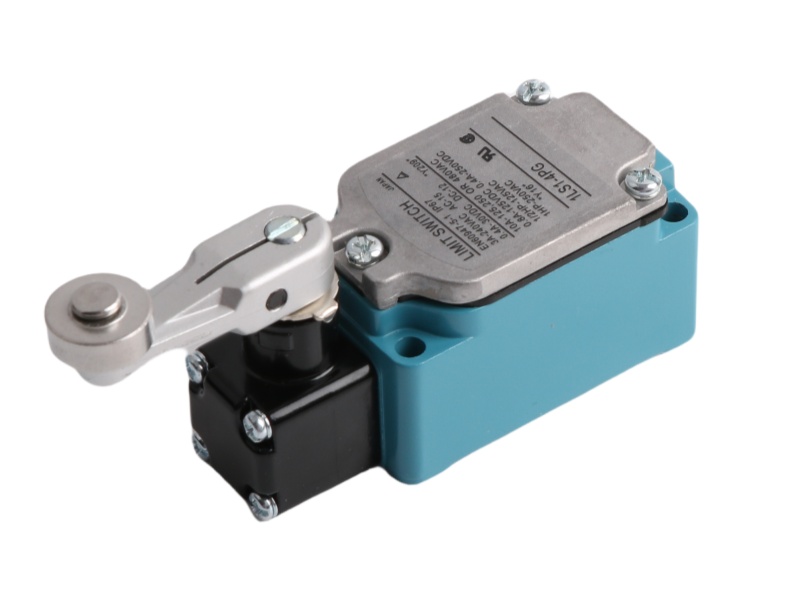

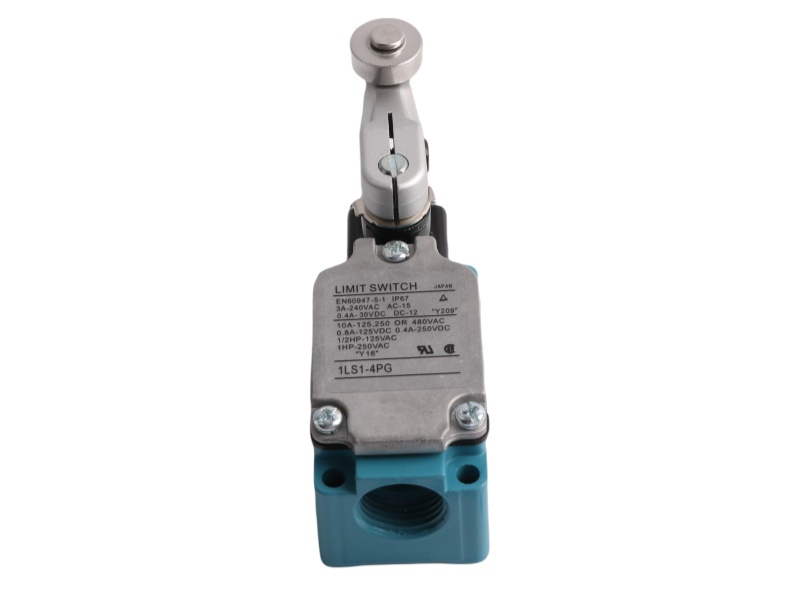

The HONEYWELL DCS MODULE 1LS1-4PG is a heavy-duty roller lever limit switch designed for precision position control in industrial automation systems. This rugged switch features a die-cast zinc housing with IP67 protection, making the Roller Lever Limit Switch Honeywell 1LS1-4PG resistant to dust, moisture, and mechanical impacts in demanding factory environments. Its SPDT contact configuration (1NC/1NO) provides flexible switching options while handling up to 480V AC and 10A current loads, suitable for diverse machinery applications.
Engineered for reliability, the 1LS1-4PG Roller Lever Limit Switch Honeywell operates across a wide temperature range from -20°C to 70°C (-2°F to 158°F), ensuring consistent performance in varying climatic conditions. The 1LS1-4PG Switches Honeywell offers field-adjustable operation modes and meets multiple NEMA standards (1, 3, 3R, 4, 6, 12, and 13), making it ideal for retrofitting imported machine tools or equipping new production lines. Its robust construction and simple maintenance requirements make it a preferred choice for conveyor systems, CNC equipment, and automated production cells.
The modular design of the Honeywell 1LS1-4PG allows for easy customization with optional indicator covers (identified by "E" or "EC" suffixes in catalog listings), enhancing operational visibility without compromising its compact footprint. As part of Honeywell's proven LS Series, the Honeywell 1LS1-4PG delivers precise mechanical actuation with its roller lever mechanism, providing accurate position feedback for valves, gates, and safety interlocks.
Widely used in manufacturing and process industries, the Limit Switches Honeywell 1LS1-4PG combines durability with functional versatility, offering plant engineers a reliable solution for machine control and safety applications. Its zinc alloy construction and sealed design ensure long service life even in metalworking, material handling, and packaging equipment where exposure to chips, coolants, and vibration is common, maintaining operational safety and reducing downtime in critical production environments.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
