F6214 Product datasheet

F6214 Functional Description

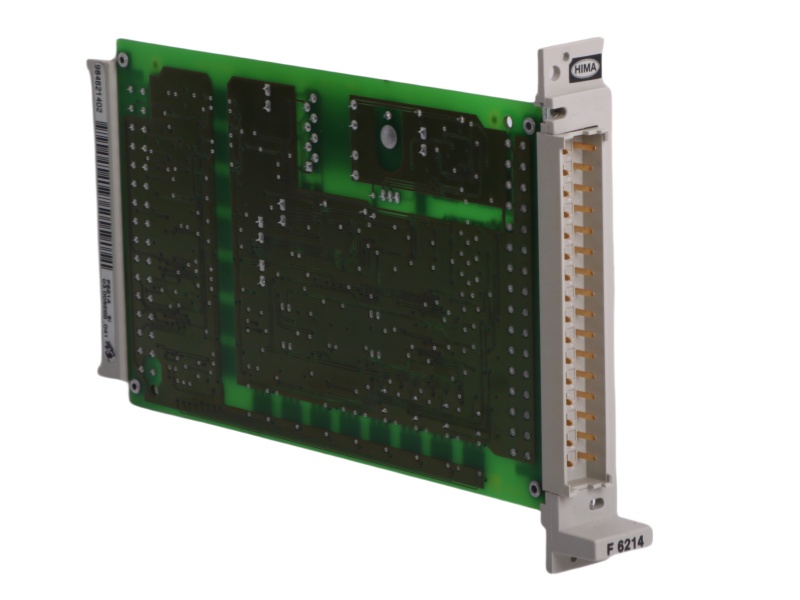

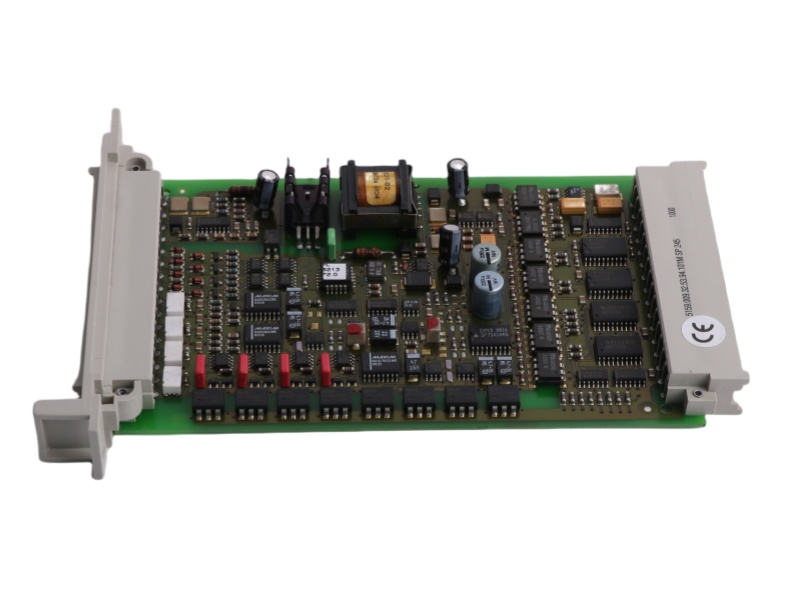

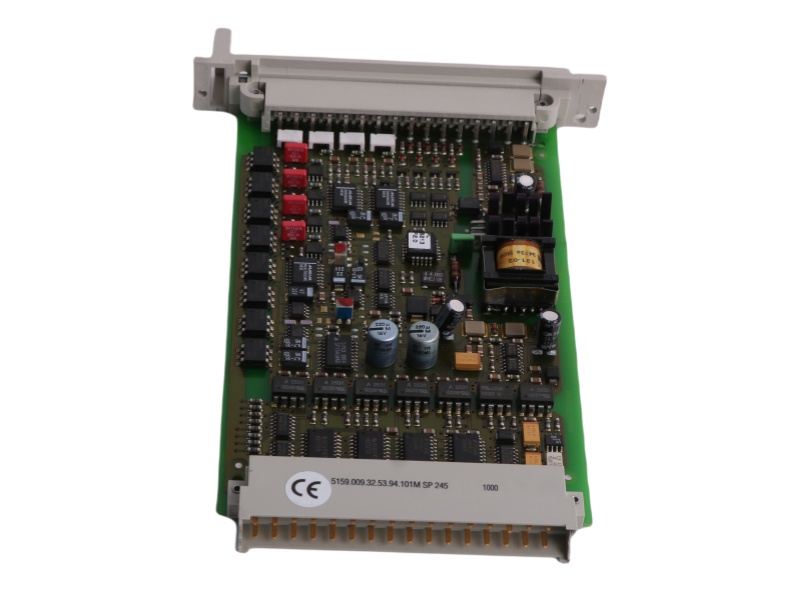

The Heat Shrink Tubing HIMA F6214 epresents a cutting-edge safety controller designed for mission-critical industrial applications, featuring comprehensive input capabilities including 4...20 mA two-wire transmitters, 0...1/5/10 V voltage inputs, and 0...20 mA current inputs with safety isolation. This versatile device delivers 12-bit resolution for precise signal processing while meeting stringent requirement classes AK 1 through 6, ensuring compliance with the most demanding safety standards. The HIMA analog input module F6214 maintains exceptional accuracy with its 1 MOhm input resistance and stable 10 ms input filter time constant, making it ideal for sensitive measurement applications.

Engineered for reliability, the F6214 HIMA moduleandconlroller provides robust transmitter supply ranging from 25 V to 20 V with 0...22 mA current capacity, including short-circuit protection up to 25 mA. Its precision components include a high-accuracy 50 Ohm shunt resistor (0.05% tolerance, 0.125 W) and ultra-stable current inputs with minimal temperature drift (<10 ppm/K). The device converts analog signals with remarkable consistency, translating 0 mV to 1 V inputs into digital values ranging from 0 to 3840 for precise process monitoring.

The HIMA F6214 Analog Input Module demonstrates German engineering excellence, manufactured by HIMA with global availability through strategic locations like Xiamen, China. Despite its compact dimensions (2.5×12.7×20.3 cm) and lightweight design (0.1 kg), this safety controller delivers industrial-grade performance with 100 ms test cycle times for rapid system responses. Its isolated inputs and redundant architecture align with SIL 3 certification requirements, providing failsafe operation in hazardous environments.

As a cornerstone of industrial safety systems, the HIMA F6214 combines precision measurement capabilities with robust protection features. The device's ability to handle diverse signal types while maintaining electrical isolation makes it indispensable for process automation, emergency shutdown systems, and critical infrastructure protection. With its proven track record in demanding applications, the DIGITAL INPUT MODULE F6214 HIMA continues to set the benchmark for reliable safety control technology worldwide.
