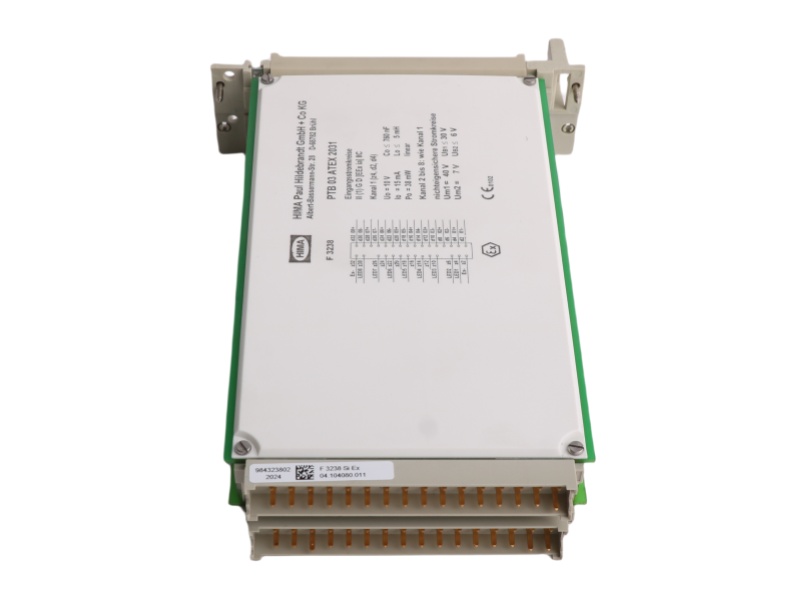

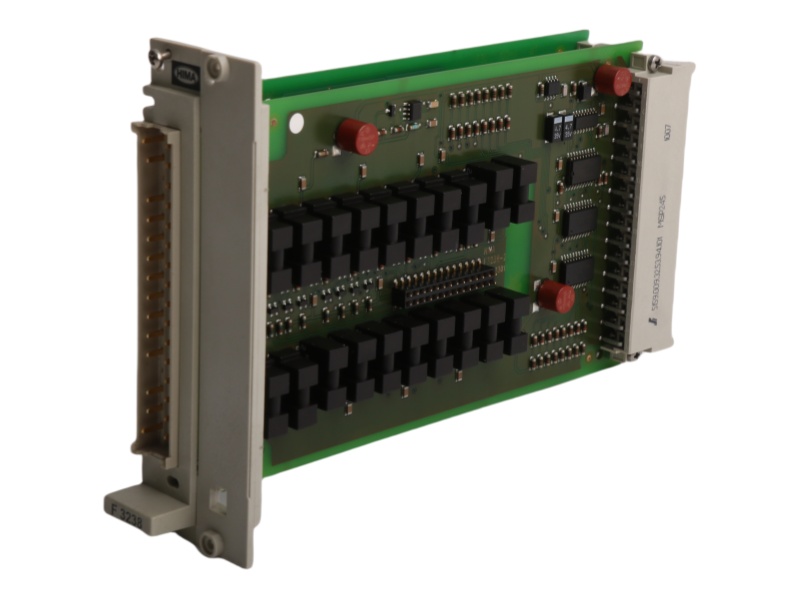

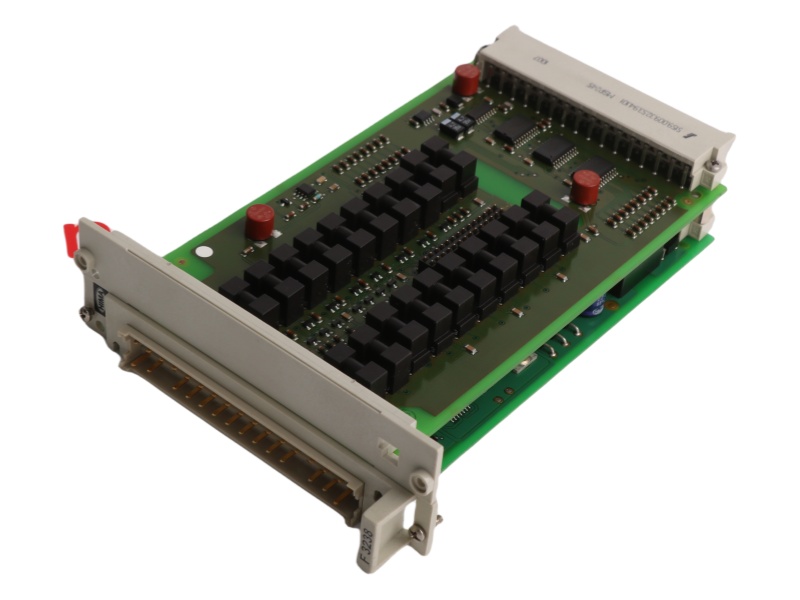

F3238 Product datasheet
|
Model number: |
F3238 |
|
Module Type： |
8 Channel Safety-Related Input Module |
|
Manufacture: |
HIMA |
|
Condition： |
Brand New |
|
Range of Product: |
HIMA |
|
Lead time： |
In Stock |
|
Weight: |
0.3 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x19x12.8cm |
|
MOQ: |
1 |
|
Product Origin: |
GERMANY |
|
System： |
DCS |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
F3238 Functional Description
The HIMA F3238 8 Channel Safety-Related Input Module is a high-integrity digital input module designed for critical safety applications, featuring 8 channels with galvanic isolation. This F3238 HIMA 8 Channel Safety System module supports various sensor types including proximity switches (P+F), NAMUR, and limit switches (LS/LB), making it versatile for industrial safety systems. With SIL 3 certification, the HIMA F3238 ensures reliable performance in safety-related functions.
Operating within an ambient temperature range of 0°C to +60°C, the Digital Input Module HIMA F3238 is built for demanding environments. It accepts 24VDC power input (-15%/+20% tolerance, max 30V) with an isolation voltage (Um) of 40V, while the internal 5VDC supply (±10% tolerance, max 6V) ensures stable sensor operation.
The 8 Channel Safety-Related Input Module F3238 HIMA is particularly suitable for hazardous areas (Ex)i applications, providing robust protection against electrical interference. Its compact design and comprehensive diagnostic capabilities make it ideal for integration into HIMatrix safety systems where space and reliability are critical factors.
As part of HIMA's safety solution portfolio, the HIMA F3238 PDF delivers fail-safe performance for process automation and machinery protection applications. The module's advanced features support redundant configurations, further enhancing system availability in critical safety loops.
