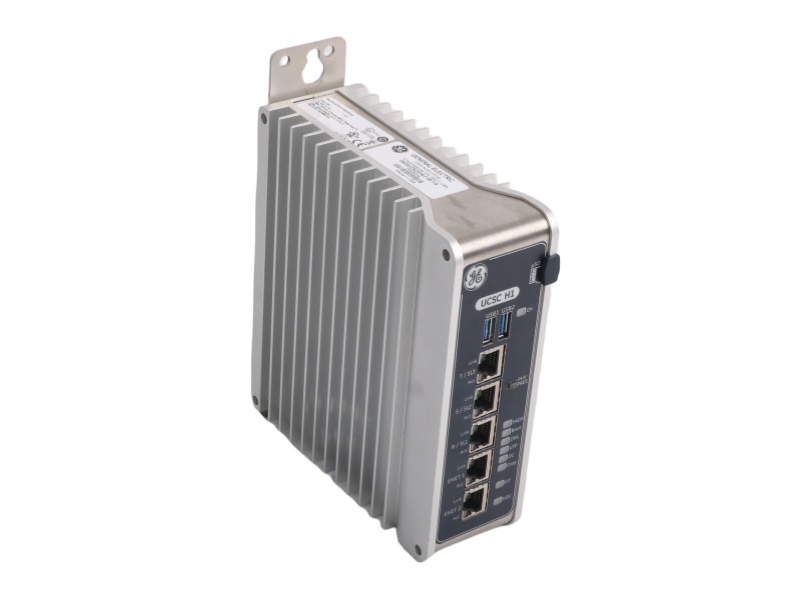

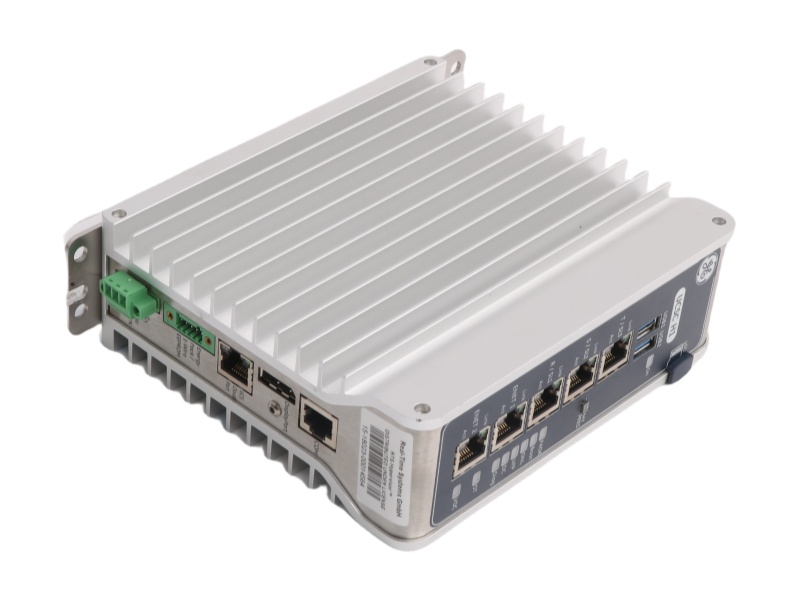

General Electric IS420UCSCH2A Dual Core Mark VIe Controller

Inquiry now

IS420UCSCH2A Product datasheet

Model number:	IS420UCSCH2A	Module Type：	Dual Core Mark VIe Controller
Manufacture:	General Electric	Condition：	Brand New
Range of Product:	Mark VIe	Lead time：	In Stock
Weight:	0.32 kg	HS CODE：	8537101190
Dimension:	2x18x26cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

IS420UCSCH2A Functional Description

General Electric IS420UCSCH2A Dual Core Mark VIe Controller is a unique Controller Assembly within the Mark VIe/Mark VIeS Turbine Control System Series. Unlike typical printed circuit boards (PCBs), it functions as a modular assembly designed for turbine automation in wind, gas, and steam applications. As part of GE’s later Mark Series, it incorporates the patented Speedtronic control technology, tracing back to the 1960s Mark I systems.

The Mark VIe IS420UCSCH2A General Electric features a specialized hardware design, including two mounting screws for secure installation. Its non-VME rack-compatible modular assembly suggests a distinct form factor, differing from standard Mark VIe components. The "A" revision denotes its common and updated status compared to the earlier IS420UCSCH2 model.

A key feature of the General Electric Controller Board IS420UCSCH2A is its conformal PCB coating, which safeguards internal circuitry from environmental damage. This protective layer, chemically applied, enhances durability in industrial settings. The product’s naming convention (e.g., "IS420" prefix) encodes details like series and revision.

Widely used in turbine control, the GE Controller Module IS420UCSCH2A balances advanced functionality with legacy Speedtronic compatibility. Its design reflects GE’s focus on robust, application-specific solutions for automated drive systems. The IS420UCSCH2A General Electric PDF remains a sought-after component for modern turbine management.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IS200WETBH1A	GE	IS210WETAH1A	GE	IS200VAICH1DAA
GE	IS215WETAH1A	GE	IS215WEMAH1A	GE	IS200MVRBH1ACC
GE	IS420UCSCH2A	GE	IS215WEMAH1B	GE	IS220PAOCH1BE
GE	IS200TVIBH2B	GE	IS200SRTDH2ACB	GE	IS420ESWBH2A
GE	IS200TRLYH1B	GE	IS200SRLYH2AAA	GE	IS220PDIAH1A
GE	IS200TRPGH1B	GE	IS220PRTDH1A	GE	IS220PAOCH1A
GE	IS200TREGH1B	GE	IS220YDIAS1AK	GE	IS215VPROH1BE
GE	IS200TRTDH1B	GE	IS200TBAIS1CED	GE	IS215VPROH1BH
GE	IS200TTSAG1A	GE	IS200TH0H1B	GE	IS200VAICH1DBC
GE	IS200TBCIH1B	GE	IS200TSV0H1B	GE	IS200VAICH1DAB

MARK VIe* UCSE Outcome optimizing control for power plants

The UCSE Mark VIe controller is designed for high-speed, high-reliability industrial applications. It is loaded with software specific to its application. As a turbine or balance of plant (BoP) controller, it runs the Mark VIe firmware and blockware applications and utilizes Mark VIe IONet interfaces. IONet is a private special-purpose Ethernet that only supports Mark controls I/O packs and controllers. IEEE 1588 protocol is used through the IONet interfaces to synchronize the clock of the I/O modules and controllers to within ±100 microseconds. External data is transferred to and from the IO Packs the controller over the IONet Ethernet interfaces. This includes process inputs/outputs to the I/O modules. Unlike traditional controllers where I/O is on a backplane, the UCSE controller does not host any application I/O. In a redundant set, all I/O networks are attached to each controller, providing them with all input data. This hardware and software architecture guarantees that no single point of application input is lost if a controller is powered down for maintenance or repair.
