IS220PDOAH1A Product datasheet
|
Model number: |
IS220PDOAH1A |
|
Module Type： |
Backup Turbine Protection I/O pack Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
0.32 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2x18x26cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PDOAH1A Functional Description

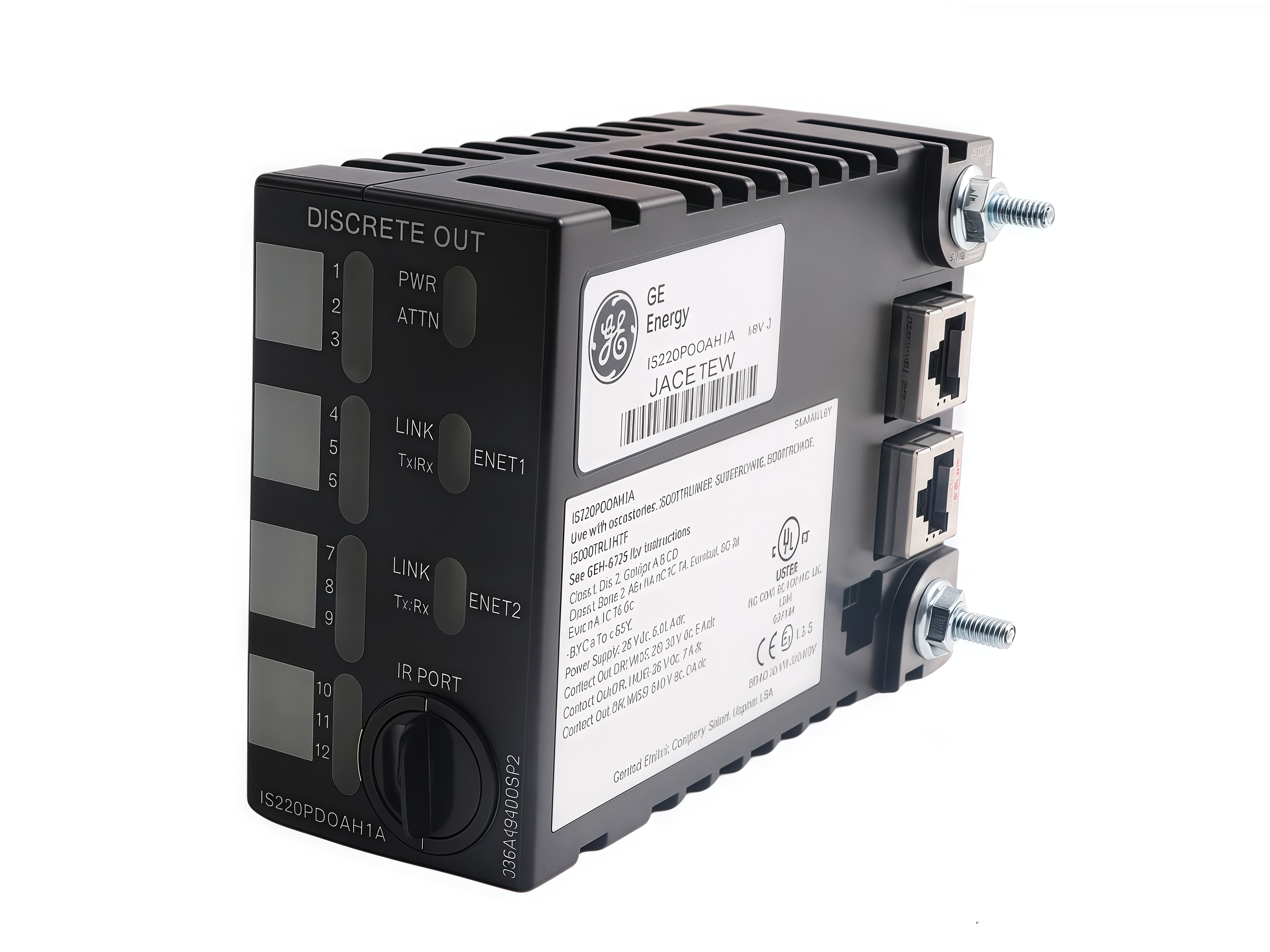

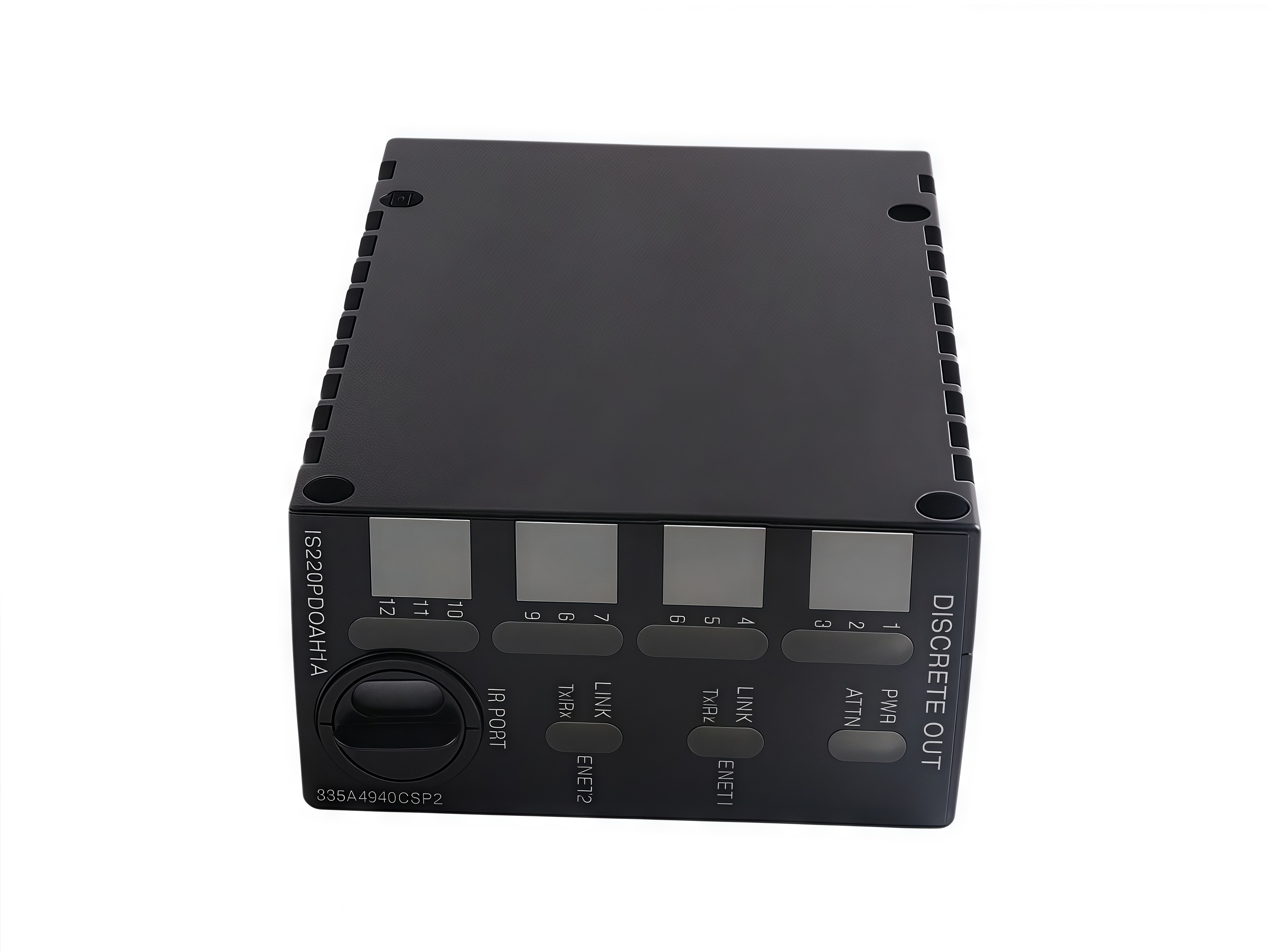

The Proportional Digital Output Module IS220PDOAH1A General Electric is a proportional digital output module from GE's Mark VIe series, designed for distributed gas turbine control systems. This critical component interfaces between I/O Ethernet networks and discrete output terminal boards, featuring a processor board for universal Mark VIe compatibility and a dedicated acquisition board for output functions. The General Electric Controller Board IS220PDOAH1A supports control of up to 12 relays while accepting terminal board feedback, accommodating both electromagnetic (TRLYH1B/C/D/F) and solid-state relays (TRLYH1E).
As part of GE's advanced turbine control solutions, the IS220PDOAH1A Proportional Digital Output Module represents a significant upgrade from legacy Mark V systems. Its dual RJ45 Ethernet inputs and 3-pin power connection ensure reliable operation, while the DC-37 pin output connector provides direct terminal board integration. The module includes comprehensive diagnostics through status LEDs and an infrared serial port. It is designed for flexible deployment in simplex (1-pack) or TMR (3-pack) configurations.
Installation of the GE Gas Turbine Control System IS220PDOAH1A requires mechanical securing via threaded studs near the Ethernet ports, with careful alignment to prevent DC37 connector strain. The module features intelligent power management with soft-start capability, eliminating the need for power-off connections. During initialization, its output enable function keeps all relays de-energized until completing critical self-tests, ensuring safe startup.
The General Electric Discrete Output Pack IS220PDOAH1A architecture includes multiple processors with flash/RAM memory, local power monitoring, and sequencing capabilities. . This robust module demonstrates GE's commitment to reliable turbine control, combining network flexibility with fail-safe operation for demanding power generation environments.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
