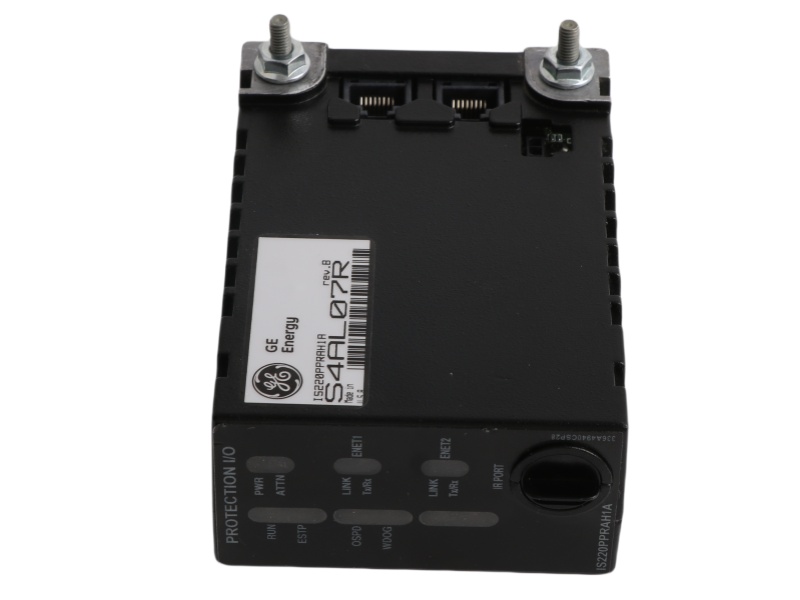

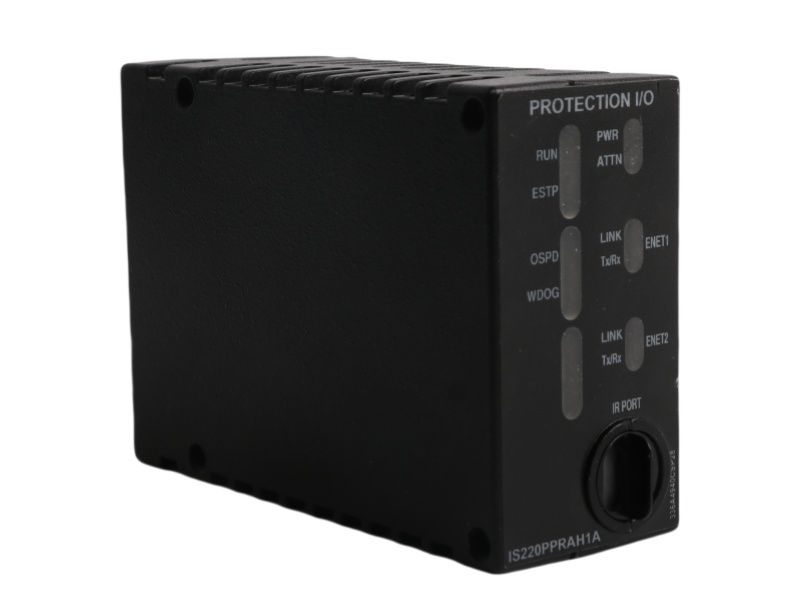

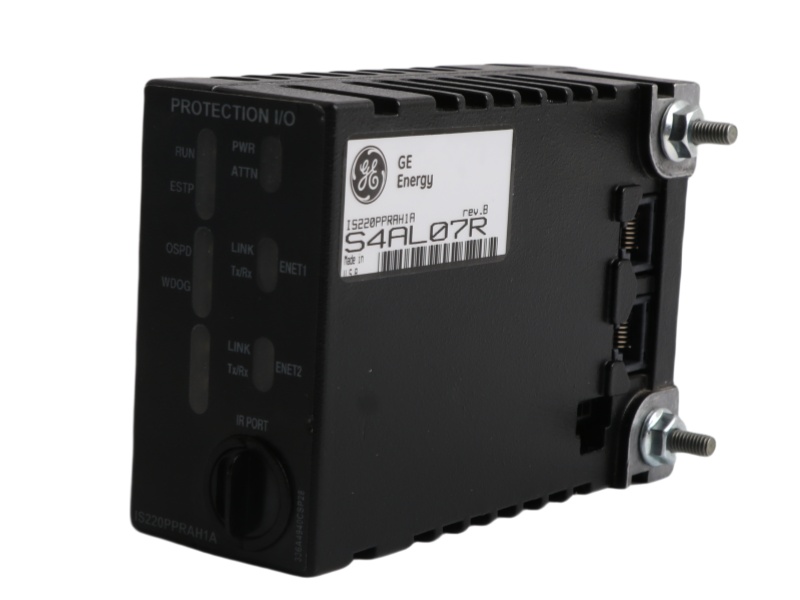

IS220PPROS1B Product datasheet
|
Model number: |
IS220PPROS1B |
|
Module Type： |
Emergency Turbine Protection I/O Pack |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIE |
|
Lead time： |
In Stock |
|
Weight: |
0.38 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x12.8x8.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PPROS1B Functional Description
The General Electric IS220PPROS1B Emergency Turbine Protection I/O Pack is a critical safety component within GE's Mark VIe distributed control system, designed to provide independent backup protection for gas and steam turbines. This robust I/O pack operates on 24V DC power and functions within a -30°C to 65°C temperature range, monitoring primary control systems while executing emergency trips through dedicated terminal boards (TREG/TREL/TRES/TREA). The Backup Turbine Protection Modules GE IS220PPROS1B implements triple modular redundant (TMR) architecture when configured with three packs, offering hardware-based overspeed, acceleration, and deceleration protection.
Measuring 14.3×23.1cm and weighing 0.45kg, the module supports two installation modes: direct mounting on SPRO/TREA boards or cable-connected configurations. Its DC-37 pin interfaces enable communication with emergency trip boards, while Ethernet IONet ports facilitate control network integration. The IS220PPROS1B General Electric I/O Pack features autonomous fault detection, capable of initiating trips independently of primary controls when abnormalities are detected in speed signals or controller performance.
Key functionalities include dual-network port operation for simplex or dual-main control setups, with the ability to monitor both R and S controllers simultaneously. The GE Printed Circuit Board Mark VI IS220PPROS1B threaded-post mounting system ensures secure mechanical attachment, while its soft-start power circuitry prevents inrush current spikes during activation. Configuration is performed via GE's ToolboxST® software, allowing customization for specific turbine protection scenarios.
As part of GE's Speedtronic™ series, the IS220PPROS1B Backup Turbine Protection Modules enhances turbine safety through redundant, fault-tolerant design. Its compliance with GEH-6721L specifications and USA-manufactured quality make it a reliable solution for power generation facilities requiring failsafe overspeed protection and generator synchronization monitoring.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IS200TRLYH1BHH |
GE |
IS220YDOAS1AJ |
GE |
IS200VAICH1DAA |
|
GE |
IS420UCSBH3A |
GE |
IS200JPDMG1ADC |
GE |
IS200MVRBH1ACC |
|
GE |
IS200TRLYH1BED |
GE |
IS200SRLYH2AAA |
GE |
IS220PAOCH1BE |
|
GE |
IS200TRLYH1BGG |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IS200TRLYH1BGE |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IS200TRLYH1BGF |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IS200TRLYH1BEC |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IS200EXAMG1A |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IS200TREGH1BDB |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS200TREGH1B |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
Mark VIe I/O Module – Intelligent Network-Connected Control
The GE Mark VIe I/O module integrates advanced processing and network capabilities for industrial turbine control systems. Its processor board executes a structured startup sequence: activating a soft-start circuit to ramp up power, running self-tests, then loading application-specific code from flash memory that validates compatibility with connected acquisition and terminal boards via electronic ID verification. The module features dual 10/100 Ethernet ports operating simultaneously in full/half-duplex mode, providing active redundancy—if one network fails, the other maintains uninterrupted communication without traditional hot-backup switching delays.
The processor board contains a high-speed CPU with RAM/flash memory, watchdog timer, and embedded temperature sensor for reliability monitoring. Power management includes current-limited input with soft-start protection and local voltage regulation. Status LEDs provide real-time operational feedback, while electronic board ID reading ensures proper system configuration. Designed for Mark VIe distributed control systems, these I/O modules deliver superior fault tolerance through their dual-active Ethernet architecture and comprehensive self-diagnostics, making them ideal for critical turbine protection and process automation applications.
