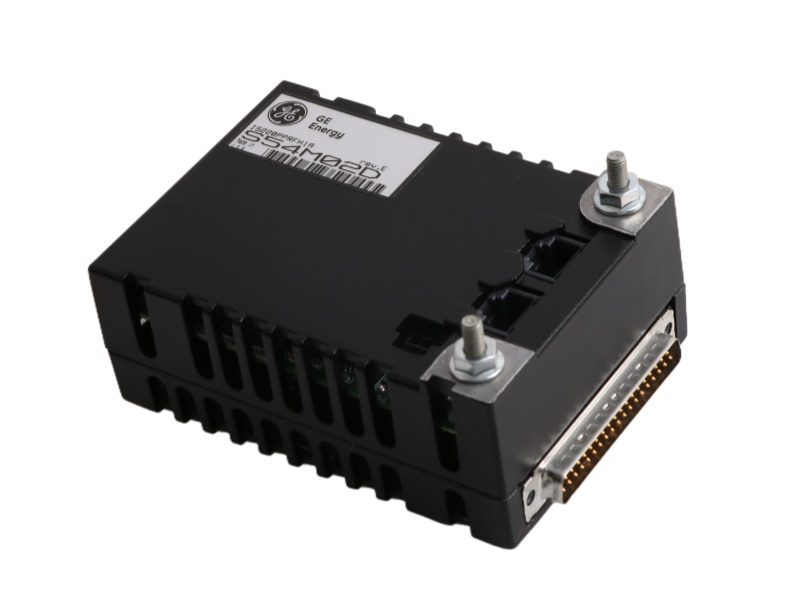

IS220PPRFH1A Product datasheet
|
Model number: |
IS220PPRFH1A |
|
Module Type： |
Input Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PPRFH1A Functional Description
The PROFIBUS Master Gateway Pack IS220PPRFH1A is a sophisticated PROFIBUS Master Gateway pack engineered for integration within the Mark VIe turbine control system. This advanced component functions as a PROFIBUS DPV0, Class 1 master, effectively bridging communication between PROFIBUS slave devices and Mark VIe controllers via I/O Ethernet. The architecture of the IS220PPRFH1A I/O Pack General Electric incorporates a shared processor board common to all Mark VIe distributed I/O modules, along with a specialized acquisition carrier board featuring a Hilscher GmbH COM-C PROFIBUS communication module.

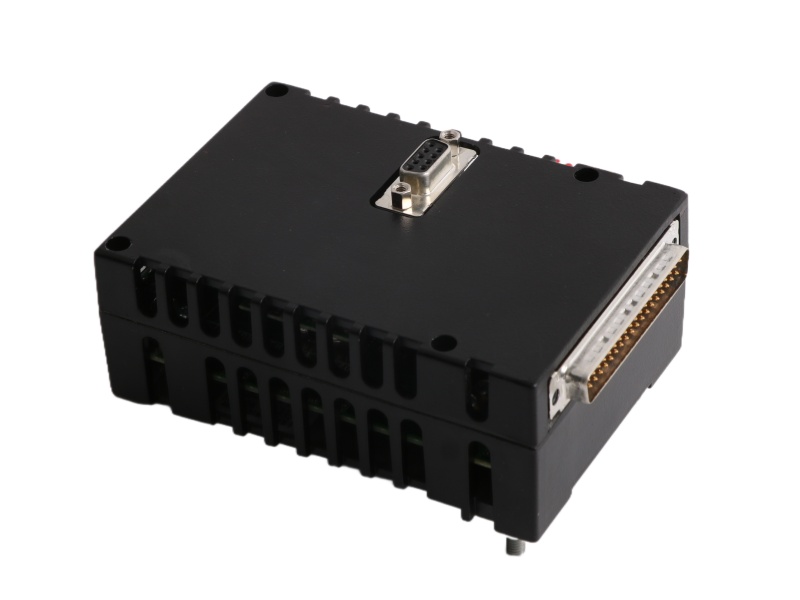

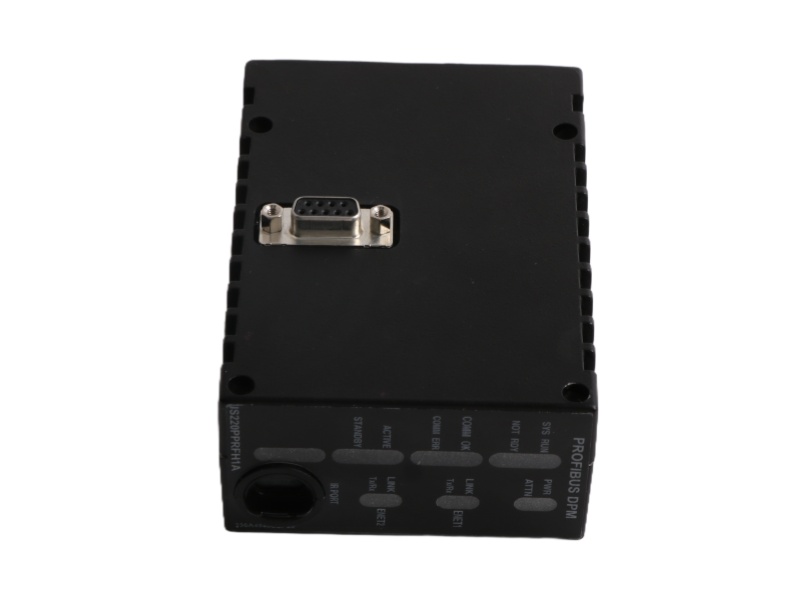

Through its DE-9 D-sub receptacle connector providing RS-485 interface, the Profibus Master Gateway Analog I/O Pack GE IS220PPRFH1A operates as a PROFIBUS DP master supporting transmission rates from 9.6 KBaud to 12 MBaud. This versatile gateway can manage up to 125 slaves, each configured with 244 bytes of inputs and outputs. It offers multiple redundancy configurations including single pack operation, dual Ethernet connections on a single pack, and hot-backup mode utilizing two packs where one serves as active master while the other remains in standby readiness.
Installation of the GE IS220PPRFH1A Speedtronic Turbine Controller requires mounting onto the PROFIBUS Master Gateway Terminal board (SPIDG1A) which provides electronic identification. The mechanical installation process emphasizes proper alignment to prevent stress on the DC-37 pin connector, with threaded inserts near Ethernet ports ensuring secure mounting. The design incorporates a soft-start capability that regulates inrush current during power application, enhancing system reliability and longevity.
Configuration of the IS220PPRFH1A General Electric is performed using the ToolboxST application, enabling customized setup of I/O pack parameters and PROFIBUS network specifications. The unit's intelligent design includes visual diagnostic LEDs and supports flexible Ethernet connectivity where either port can negotiate proper operation automatically. This comprehensive approach to industrial communication makes it an essential component for robust and reliable turbine control systems requiring high-speed data exchange and fault-tolerant operation.
