IS200SCSAS1AEB Product datasheet
|
Model number: |
IS200SCSAS1AEB |
|
Module Type： |
I/O Expansion Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
MARK VLE SERIES |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200SCSAS1AEB Functional Description

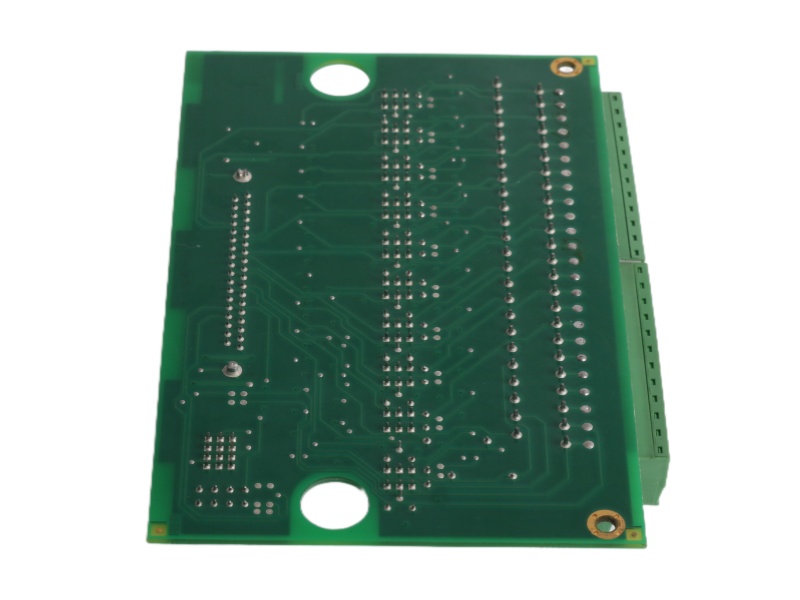

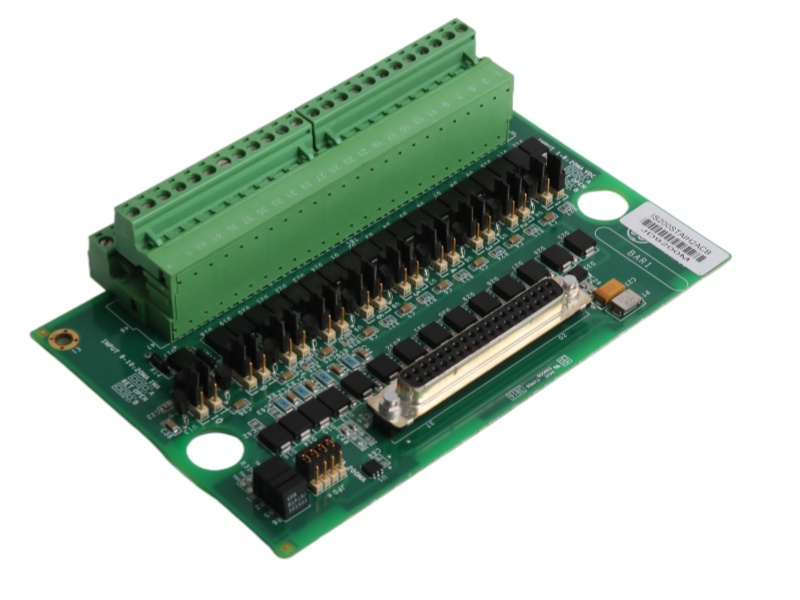

The General Electric MARK VLE SERIES IS200SCSAS1AEB is a Simplex Serial Communication Input/Output (SSCA) terminal board designed for the Mark VIe control system. It manages up to six serial communication channels, supporting RS-232C, RS-485, and RS-422 signaling protocols. Compact in size at 15.9 cm high by 10.2 cm wide, the GE Simplex Serial Communication Input/Output terminal board IS200SCSAS1AEB optimizes space within system enclosures while providing reliable connectivity for a variety of devices and peripherals.
Engineered for versatility, the I/O Expansion Board IS200SCSAS1AEB General Electric features high-density Euro-style box terminal blocks, ensuring secure wiring and stable signal transmission. An integrated on-board ID chip facilitates seamless identification with the PSCA I/O pack, enabling efficient system diagnostics, monitoring, and troubleshooting, enhancing overall operational reliability.
Installation of the IS200SCSAS1AEB Serial Communication I/O Board can be accomplished using DIN-rail mounting with a sheet metal carrier and plastic insulator or direct cabinet bolting, providing flexibility based on system layout. Proper alignment and cable management are crucial to maintain secure and organized connections, reducing the risk of interference or damage.
Two terminal block options are available for the IS200SCSAS1AEB General Electric I/O Expansion Board: SSCAH1 with permanently mounted terminals and SSCAH2 with a right-angle header for pluggable blocks. Both configurations ensure secure connections, enabling adaptability to evolving system requirements while maintaining consistent performance across industrial applications.
