IC695CPU315 Product datasheet
|
Model number: |
IC695CPU315 |
|
Module Type： |
CPU Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
MARK VLE SERIES |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

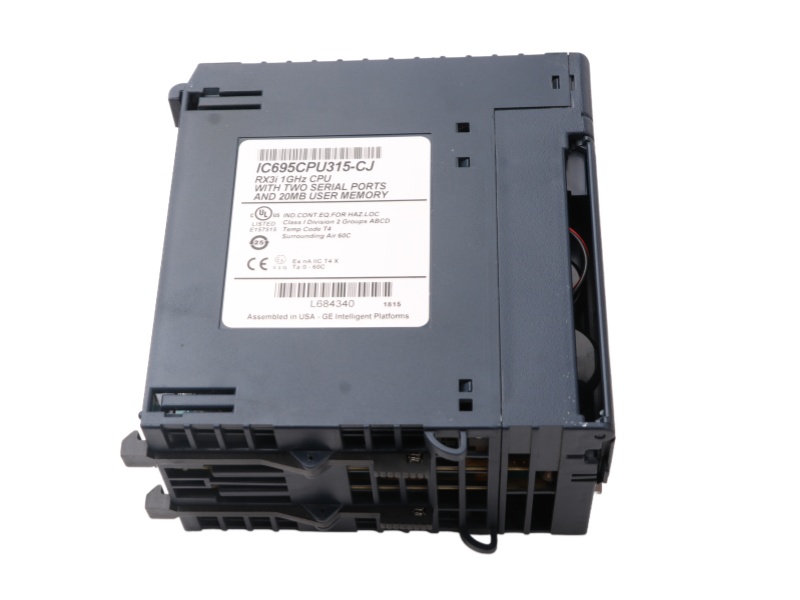

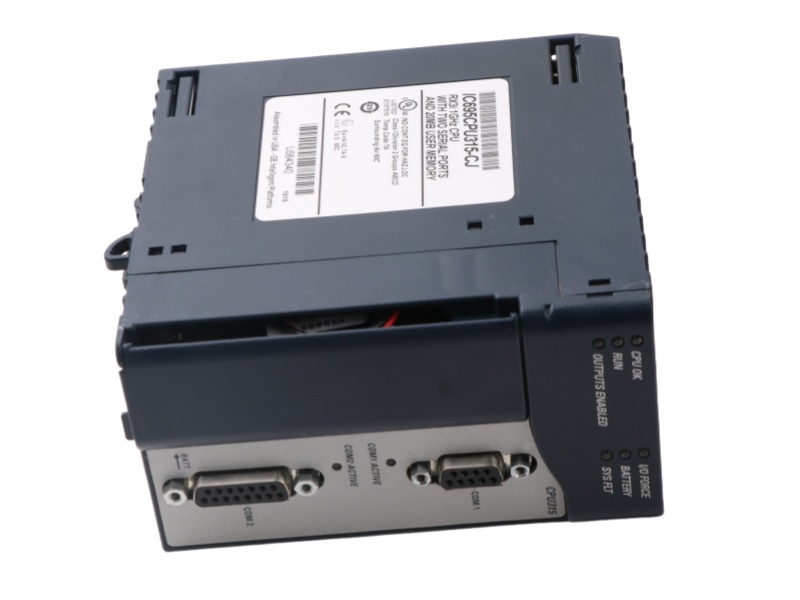

IC695CPU315 Functional Description
The General Electric PAC Systems Rx3i Controller CPU IC695CPU315 serves as the central processing unit for RX3i PAC System platforms, utilizing a 1.0 GHz Celeron M microprocessor with 20 MB of user memory. This powerful CPU supports up to 512 program blocks at 128 KB each while reserving 32 kilobits for discrete I/O and 32 kilowords for analog I/O configuration. The module incorporates both battery-backed RAM and 20 MB of NVRAM for reliable data retention, requiring GEIP-approved auxiliary battery packs such as the IC695ACC302 for proper operation.
The IC695CPU315 MODULE General Electric features two integrated serial ports supporting RS-232 and RS-485 communication with protocols including serial I/O, Modbus RTU slave, and SNP. The module complies with PCI standards version 2.2 and consumes 1.2A at 5V DC and 1A at 3.3V DC during operation. With a working temperature range of 32 to 140°F, the CPU Module IC695CPU315 General Electric maintains timing accuracy within 0.01% and exhibits minimal clock drift of approximately 2 seconds per day.
This CPU supports auto-located symbolic variables that can utilize any amount of user memory and maintains compatibility with most GE Series 90-30 modules and expansion racks. The field-upgradable firmware ensures long-term adaptability, while the module's design complies with EU RoHS directive 2002/95/EC with relevant exemptions. The IC695CPU315 Fanuc RX3i Controller Module CPU General Electric provides robust processing capabilities for real-time control applications in industrial automation environments.
Through its combination of processing power, memory capacity, and communication capabilities, the General Electric IC695CPU315 CPU Module delivers reliable performance for machine control and process automation applications. The CPU's architecture ensures efficient handling of complex control tasks while maintaining compatibility with existing system components, making it a versatile solution for modern industrial automation requirements.
