IC693CPU374 Product datasheet
|
Model number: |
IC693CPU374 |
|
Module Type： |
Processor Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

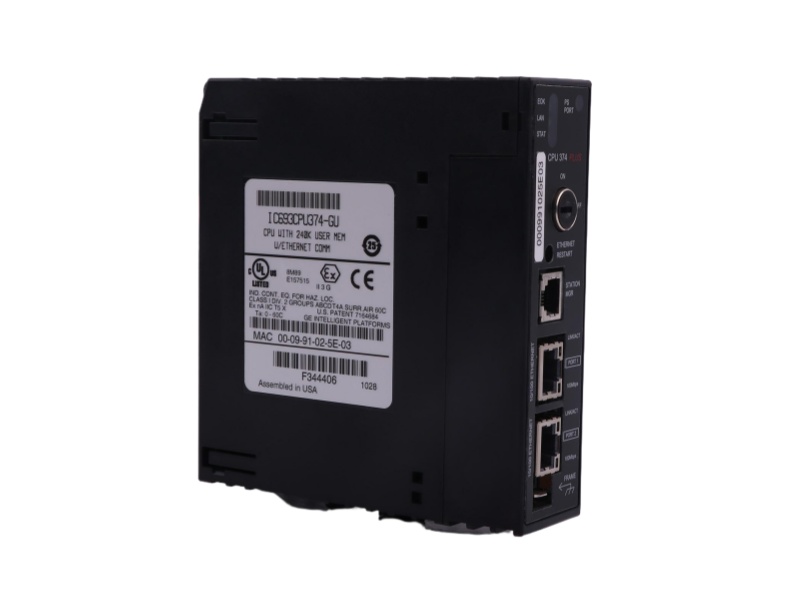

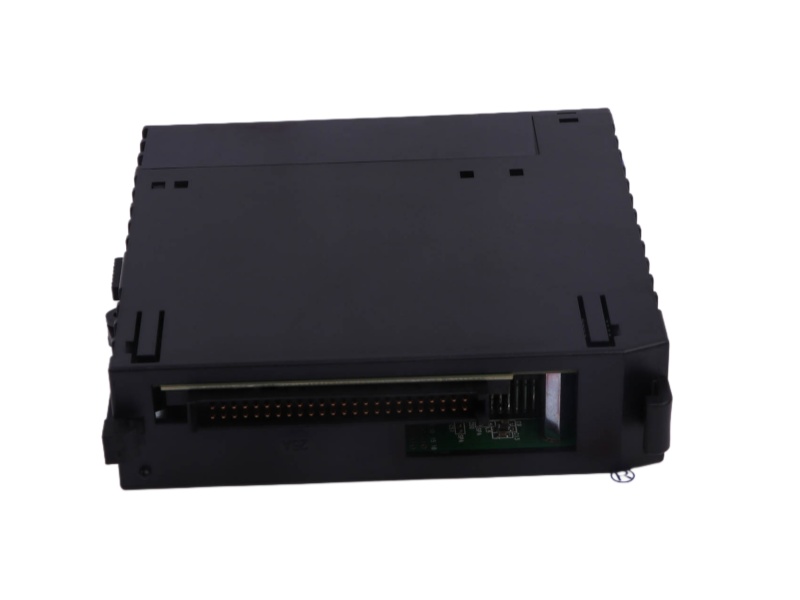

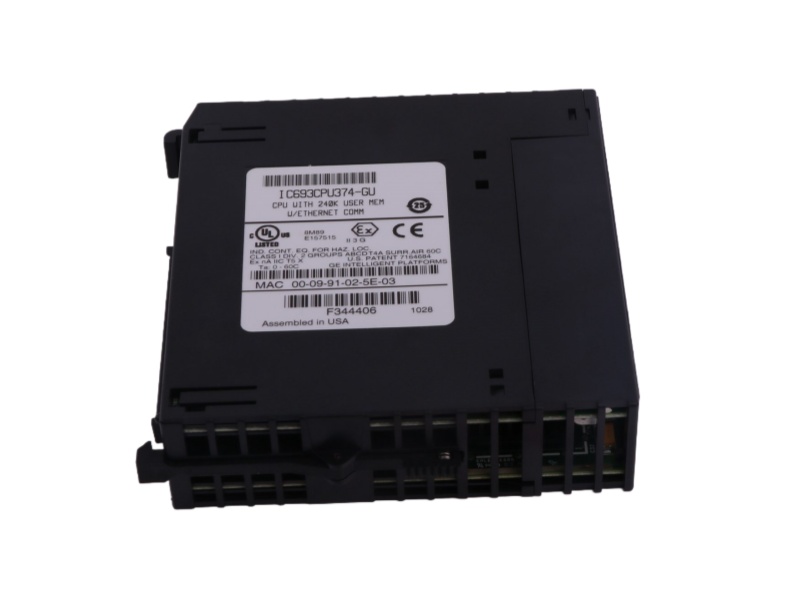

IC693CPU374 Functional Description
The IC693CPU374 CPU module General Electric is a central component within the Series 90-30 PLC system, functioning as the main processor module that executes control logic and manages all data exchanges. This powerful controller is built around an embedded 586 microprocessor, operating at 133 MHz to deliver rapid processing capabilities with a typical scan rate of 0.15 milliseconds per 1K of Boolean logic. The efficient design of the Single Slot CPU Module with Embedded Ethernet Interface IC693CPU374 ensures it can handle complex automation tasks while occupying only a single slot in the PLC rack.
A key feature of the Processor Module IC693CPU374 General Electric is its substantial 240KB user memory, which provides ample space for sophisticated control programs. The memory architecture is highly configurable, supporting register memory from 128 to 32,640 words and dedicated space for analog inputs and outputs. This flexibility allows it to be tailored to specific application requirements, supporting up to 2000 timers and counters for comprehensive process control.
Communication capabilities are a standout aspect of the General Electric IC693CPU374 Processor Module, which incorporates two built-in Ethernet ports supporting 10/100 Mbps auto-sensing transmission. These RJ-45 connectors enable seamless integration with programming workstations, HMI systems, and SCADA networks, while an additional RS-485 interface through the power supply facilitates communication using SNP and SNPX protocols. This robust connectivity framework ensures it can serve as the communication hub in diverse industrial environments.
Programming and maintenance of the IC693CPU374 General Electric Single Slot CPU Module are supported by industry-standard software platforms including VersaPro 2.03 or later and CIMPLICITY Machine Edition Logic Developer 2.60 or later. When performing online edits to an existing user program, it is crucial to use the same software version or higher to maintain system integrity. The combination of processing power, substantial memory, and versatile communication options makes this processor a reliable choice for demanding industrial automation applications.
