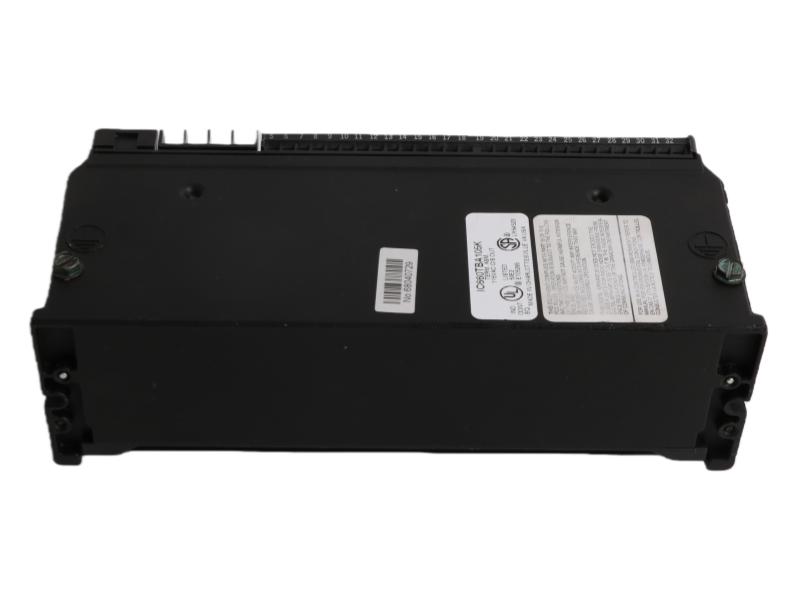

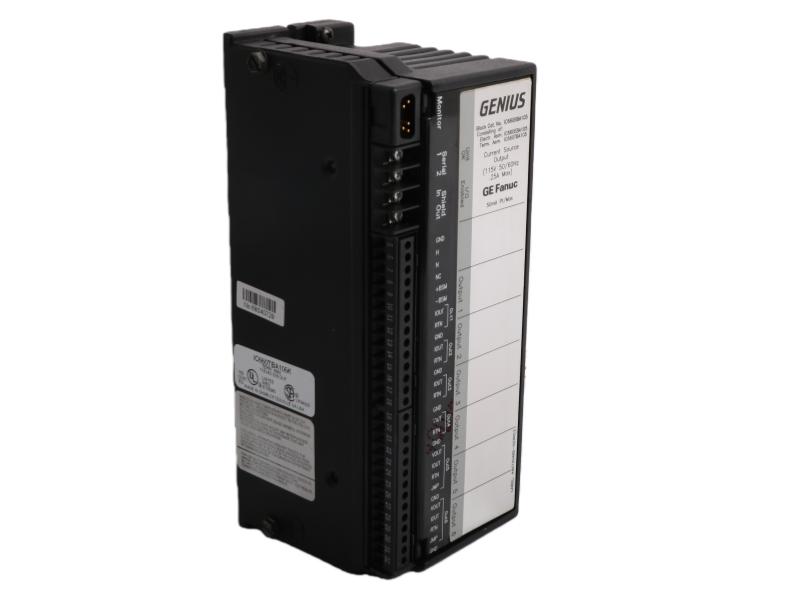

IC660BBA100 Overview

The Electronic Circuits IC660BBA100 General Electric is a 115VAC analog I/O block featuring 4 inputs and 2 outputs. It provides 12-bit resolution with a 4ms update time, dissipating 7 watts of power and weighing approximately 4 pounds.

Technical Data Summary

• I/O Channels: 4 analog inputs and 2 analog outputs.

• Signal Ranges: Supports five ranges, including 0-10V, ±10V, ±5V, 0-5V, and 4-20mA.

• Resolution: 12-bit A/D and D/A converters.

• Compatibility: Backwards compatible and works with GE Series IC697, IC600, and IC550 PLCs.

• Power & Weight: Requires 115VAC input and weighs 4 pounds.

Application

√ Signal Processing: Interfacing with sensors and actuators for continuous analog voltage (0-10V, ±10V, ±5V) or current (4-20mA) signals.

√ Process Control: Ideal for systems requiring stable output states during communication loss, with last-state or default value retention.

√ System Integration: Enables backward-compatible upgrades and replacements in GE PLC families (IC697/600/550) without rewiring.

√ Monitoring & Diagnostics: Provides real-time data access via hand-held monitor and status indication through front-panel LEDs.
