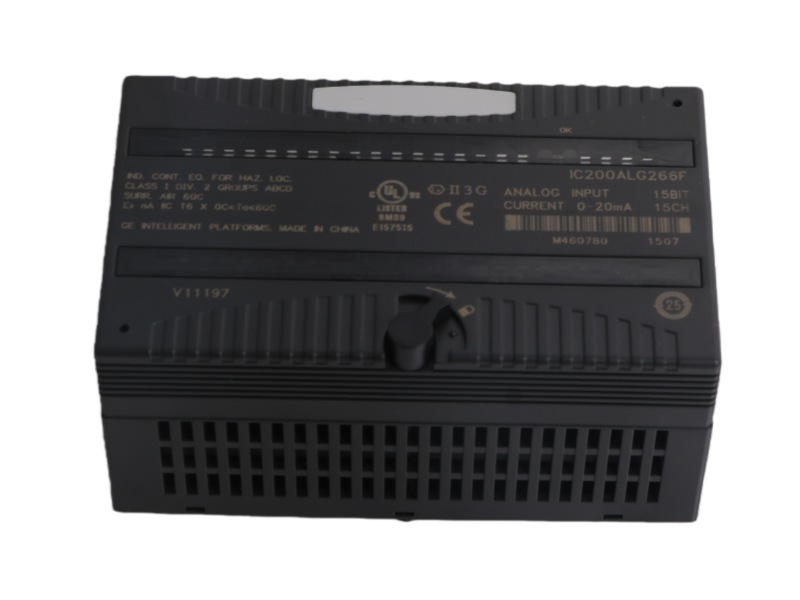

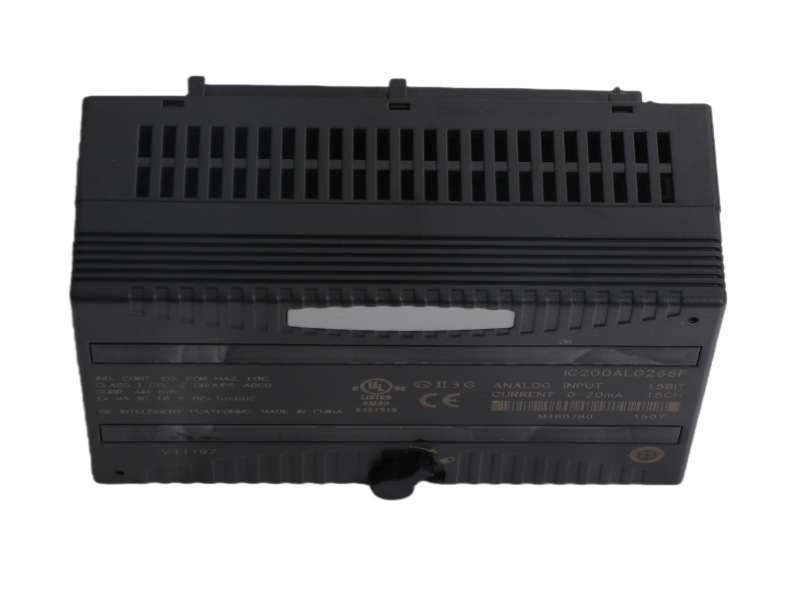

IC200ALG266FProduct datasheet
|
Model number: |
IC200ALG266F |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.9 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
20x11.5x5.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC200ALG266F Functional Description
The General Electric IC200ALG266F VERSAMAX INPUT MODULE represents a significant advancement in analog input technology, delivering exceptional performance for industrial automation systems.
This 15-channel current input module features 15-bit resolution and supports both 4-20mA and 0-20mA signal ranges through simple jumper configuration. The enhanced protection capabilities of the GENERAL ELECTRIC I/O MODULE IC200ALG266F ensure reliable operation with overvoltage protection up to 30VDC and independent channel isolation.
Engineers will appreciate the sophisticated diagnostic features integrated into the GE Versamax series IC200ALG266F, including open wire detection and internal hardware monitoring that triggers alerts for conversion errors exceeding ±6%. The module's TUV certification for safety applications makes the General Electric VERSAMAX INPUT MODULE IC200ALG266F particularly valuable for critical control systems requiring high reliability. Unlike some competing products, this module operates without external power while maintaining comprehensive fault reporting capabilities.
The robust design of the Analog Input Module General Electric IC200ALG266F includes active current-limiting circuitry that protects input sense resistors from accidental 24V connections, limiting current to 40mA maximum. This safety-focused approach, combined with the module's ability to maintain operation of unaffected channels during individual channel faults, demonstrates why it serves as an upgrade from previous versions. These characteristics make it an ideal choice for demanding industrial environments where signal integrity and system reliability are paramount.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IS200VCRCH1BBC |
GE |
IS200TSVCH2AJE |
GE |
IS200TPROH1BCB |
|
GE |
IS200VCRCH1BBB |
GE |
IS200TSVCH1AEC |
GE |
IS200TGENH1A |
|
GE |
IS200VAICH1DBC |
GE |
IS200TSVCH1ACB |
GE |
IS200TDBSH2A |
|
GE |
IS200VAICH1DAB |
GE |
IS200TRTDH1CC |
GE |
IS200TBTCH1CBB |
|
GE |
IS200VAICH1DAA |
GE |
IS200TRPGH1BDE |
GE |
IS200TBCIH1BCE |
|
GE |
IS200VAICH1CBA |
GE |
IS200TRLYH1BHH |
GE |
IS200TBCIH1BBC |
|
GE |
IS200TVIBH2BCC |
GE |
IS200TRLYH1BGG |
GE |
IS200TBAIH1CDD |
|
GE |
IS200TVIBH2BBB |
GE |
IS200TRLYH1BGE |
GE |
IS200TBACIH1B |
|
GE |
IS200TTURH1BED |
GE |
IS200TRLYH1BED |
GE |
IS200TAMBH1ACB |
|
GE |
IS200TSVOH1BDC |
GE |
IS200TREGH1BDC |
GE |
IS200STAOH2AAA |
Enhanced Input Protection for Analog Modules
The IC200ALG265 and IC200ALG266 modules provide robust overvoltage protection up to 30VDC, significantly improving upon previous versions' 15VDC capability. Crucially, this protection operates independently per channel, ensuring that an overvoltage condition on one channel doesn't affect the other 14 channels' operation. The IC200ALG266 current input module incorporates additional safeguards including active current-limiting circuitry that restricts input current to 40mA maximum when accidentally connected to 24V field power. Furthermore, the module automatically opens input loops when powered off, though designers must consider this may trigger open wire detection in connected systems.
