DS200TBCBG1AAA Overview

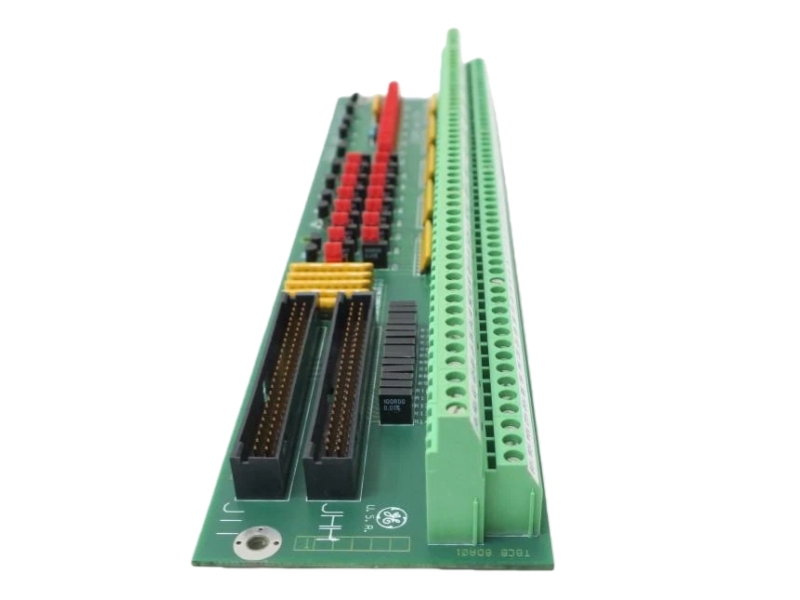

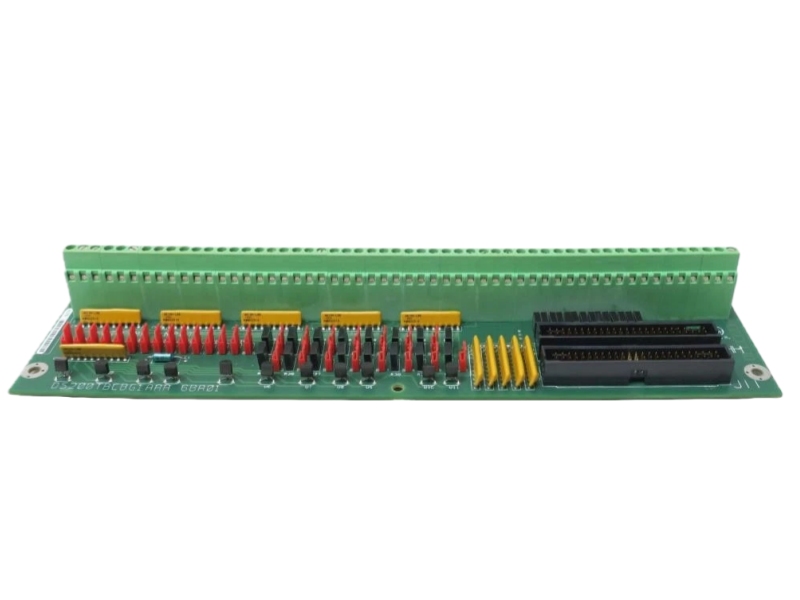

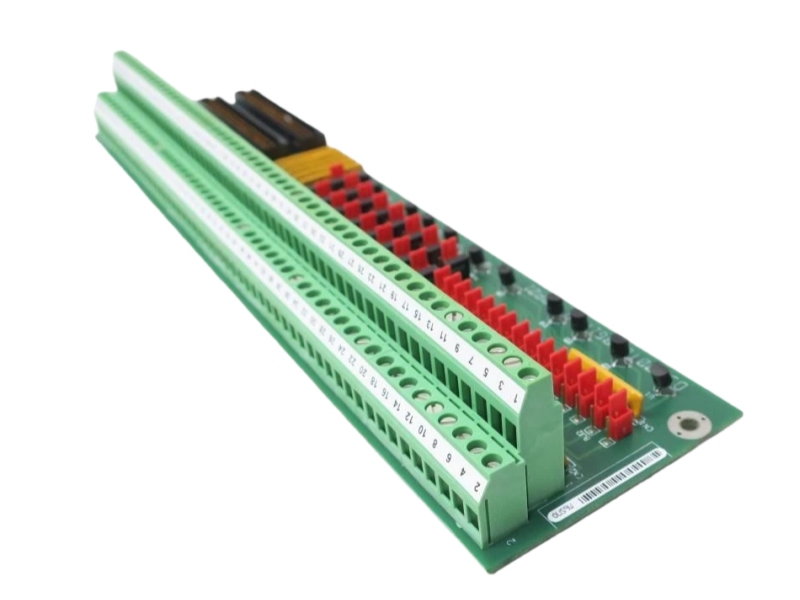

The General Electric Termination Analog Card DS200TBCBG1AAA is a 4-20 mA RTD Input Termination Module for the Mark V Speedtronic system. It interfaces with RTD sensors to accurately measure and transmit temperature signals within industrial control applications.

Features and benefits

Standard Interface: Tailored for 4-20 mA RTD sensors, supporting common types like PT100/PT1000.

Flexible Configuration: Eight inputs can be reconfigured via jumpers from 4-20 mA to 0-1 mA signals.

Integrated Design: Serves as the dedicated termination board in the Mark V Speedtronic control system.

Reliable Performance: Ensures accurate signal conditioning and impedance matching for stable data.

Simplified Integration: Features standardized terminals for secure sensor wiring and system connection.

Proven Compatibility: Designed for seamless operation with the TCCB board within the control core.

FAQ

Q1: What is the primary function of the DS200TBCBG1AAA module?

A1: It is a 4-20 mA RTD Input Termination Module designed to interface with RTD temperature sensors within GE's Mark V Speedtronic control system.

Q2: What types of input signals does it support?

A2: It accepts standard 4-20 mA input signals, with eight channels configurable to 0-1 mA via hardware jumpers, and is compatible with common RTD types like PT100 and PT1000.

Q3: How is the module integrated into the control system?

A3: It is installed in location seven of the system core as the TBCB terminal board, where it lands and conditions signals before relaying them to the TCCB board.

Q4: What are the module's key features for reliable operation?

A4: It provides proper signal termination, impedance matching, and conditioning to ensure accurate and stable readings from connected RTD sensors.

Q5: Is the module readily available for maintenance and replacement?

A5: Yes, it is kept in stock and can typically be repaired or replaced within 3-7 days to minimize system downtime.
