DS200SLCCG1ADC Product datasheet
|
Model number: |
DS200SLCCG1ADC |
|
Module Type： |
Communications Card |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark Vle |
|
Lead time： |
In Stock |
|
Weight: |
0.38kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
24.5x18.5x8cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
DS200SLCCG1ADC Functional Description

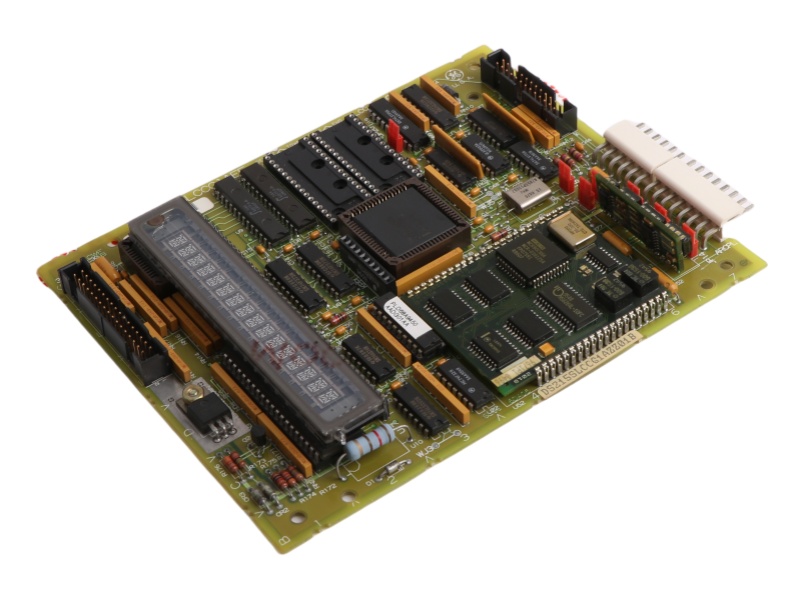

The GE DS200SLCCG1ADC in stock is a LAN communications drive board developed for the Mark V Turbine Control System series. It enables reliable network communication for a range of GE drives and exciters, supporting both wind, steam, and gas turbine applications. Although the Mark V Series is now considered a legacy product, the General Electric DS200SLCCG1ADC Communications Card remains in demand due to its integration with the patented Speedtronic control system and its role in maintaining operational continuity for older turbine installations. This board is recognized as one of the final-developed Mark V Series LAN modules, incorporating three significant product revisions for enhanced functionality.
The Drive Board General Electric DS200SLCCG1ADC provides full interfacing for both DLAN and ARCNET network connections. It includes a LAN control processor (LCP) that filters signals sent to the drive and dual-ported RAM to facilitate communication between the LCP and the drive’s wired control board. Two removable EPROM memory compartments store the program code for the LCP, while an attachable alphanumeric keypad programmer allows access to diagnostics and system settings.
Voltage suppression and operational stability of the DS200SLCCG1ADC GE Speedtronic Turbine Controller rely on specific hardware components, including capacitors, resistors, transistors, diodes, and integrated circuits. The card is carefully packaged in static-resistant wrapping to prevent damage during shipment, and installation should only be performed by qualified personnel following the manufacturer’s instructions.
Despite its functional discontinuation, the Communication Interface Card GE DS200SLCCG1ADC remains a valuable module for legacy turbine systems. Its product number encodes key details about the board, including its series, coating style, and primary, secondary, and artwork revisions. This detailed coding ensures accurate identification and compatibility within Mark V Series assemblies, maintaining the reliability of turbine control operations.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
