DS200SDCCG1AGD Product datasheet
|
Model number: |
DS200SDCCG1AGD |
|
Module Type： |
Drive CPU Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark Vle |
|
Lead time： |
In Stock |
|
Weight: |
0.54kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
28x4.2x21.4cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
DS200SDCCG1AGD Functional Description

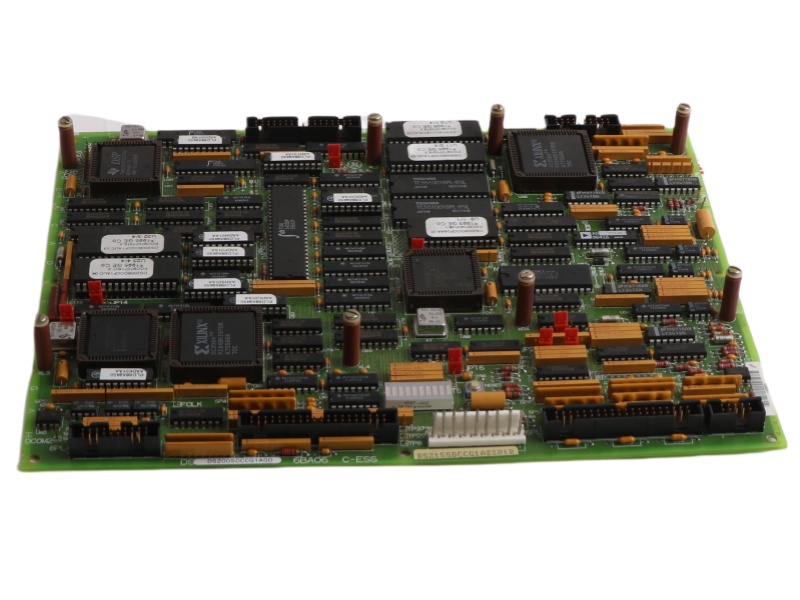

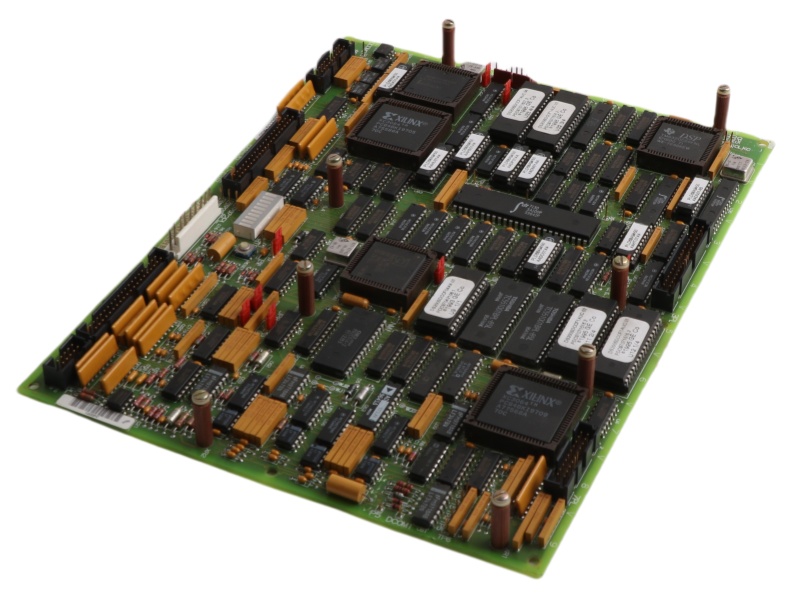

The DS200SDCCG1AGD General Electric Module is a key component in the Mark V Turbine Control System, serving as a drive control board for the management and control of gas, steam, and wind turbines. As a primary drive controller, it incorporates three microprocessors and RAM, allowing multiple processors to access the memory simultaneously.
This Speedtronic Turbine Controller GE DS200SDCCG1AGD also includes ten LEDs arranged in a sequence that indicate fault codes in case of an error, or a standard operational pattern when the board is functioning normally. These LEDs provide an immediate visual indication of the system’s status, which can be easily checked by opening the board cabinet, ensuring safe operation.
The DS200SDCCG1AGD GENERAL ELECTRIC printed circuit board hardware is designed to integrate with several auxiliary boards for enhanced functionality. The Drive CPU Board GENERAL ELECTRIC DS200SDCCG1AGD is compatible with various optional daughterboards such as the DS215SLCC LAN Communications Card and the 531X309SPC Signal Processor Card, all contributing to the system’s efficiency. These additional modules support enhanced processing power and communication capabilities, expanding the board’s performance in the control system.
Configuration parameters for the Mark V Control Board GE DS200SDCCG1AGD are critical for determining how the board processes information and interacts with other system components. Software tools allow for easy configuration adjustments, and the setup can be duplicated across multiple units, streamlining the deployment of the control system.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
750-P5-G5-S5-HI-A20-R-E-H |
GE |
531X128HMSADG1 |
GE |
8020-CE-RH |
|
GE |
750-P5-G5-S5-HI-A20-R-E |
GE |
EPSCPE100-ABAE |
GE |
8104-AO-IP |
|
GE |
750-P5-G5-S5-HI-A20-R |
GE |
EPSCPE100-ABAA |
GE |
8601-FT-NI |
|
GE |
745-W3-P511-G51-HI-R-E |
GE |
EPSCPE115-AAAB |
GE |
8611-FT-FU |
|
GE |
745-W2-P5-G5-HI-R-E-H |
GE |
IC693MDL741C |
GE |
8709-CA-08 |
|
GE |
6234BP10920 IC660EBD120 |
GE |
GS9208/IR2 |
GE |
8810-HI-TX-01 |
|
GE |
6232BP10820 IC660EBA023 |
GE |
IC200CHS022 |
GE |
A02B-0303-C074 |
|
GE |
531X309SPCAJG1 |
GE |
IS200AEPAH1BMF-P IS210BPPCH1AD |
GE |
A03B-0815-C003 |
|
GE |
531X135PRGAAM3 |
GE |
IS200AEPAH1BGB IS215WEPAH2BA |
GE |
A06B-0104-B111#7000 |
E Drive CPU Board
The GE Drive CPU Board is a crucial component in General Electric's turbine control systems, particularly within the Mark V Series. Serving as the central processing unit for the drive system, the CPU board is responsible for executing all control and processing tasks required to manage the turbine’s performance. It integrates various hardware components, including microprocessors and memory, allowing for seamless data processing and communication within the system.
The CPU board plays a pivotal role in ensuring the turbine operates efficiently and safely, by processing input signals from sensors and other control units. It also handles fault detection and diagnosis, providing visual feedback through LED indicators that display the system’s status. These LEDs help operators quickly identify potential issues, making troubleshooting more efficient.
Additionally, the GE Drive CPU Board can be integrated with various auxiliary boards and modules, such as signal processors and communication interfaces, allowing for customization based on system needs. This flexibility ensures that the board can adapt to different configurations and meet specific operational requirements.
