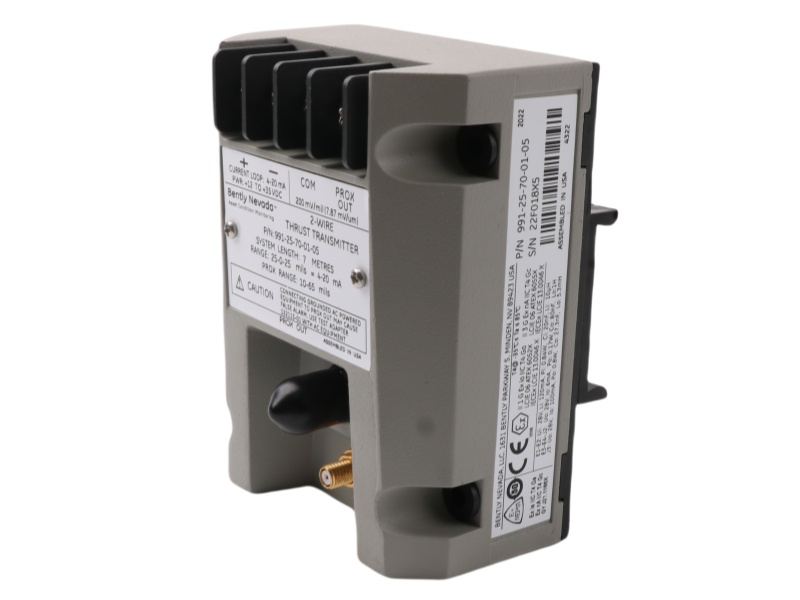

The Bently Nevada 991-25-70-03-05 Thrust Transmitter is a specialized thrust transmitter primarily designed for OEMs of centrifugal air compressors, small pumps, motors, and fans.The Plc Monitor Connector Cable 991-25-70-03-05 delivers a straightforward 4 to 20 mA output signal proportional to axial displacement (thrust), enabling easy integration into machinery control systems for effective protection and monitoring.

This compact, loop-powered, two-wire device interfaces directly with the 3300 NSv proximity probe and matching extension cable, with a system length of 7.0 meters (23.0 feet). The Bently Nevada Thrust Transmitter 991-25-70-03-05 conditions the probe input, providing an accurate 4 to 20 mA signal that represents the shaft’s axial position, ideal for triggering alarms or control logic.

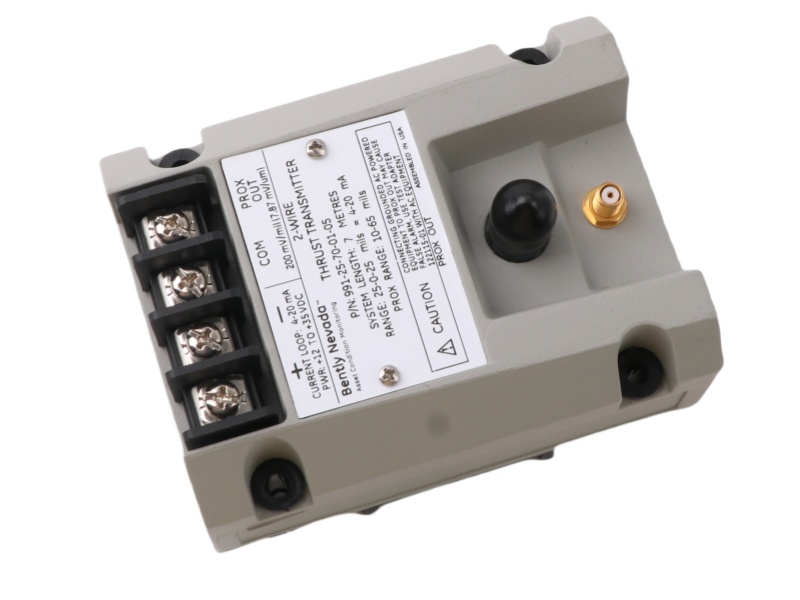

Engineered with convenience and diagnostics in mind, the 991 Vibration Transmitter Bently Nevada features non-interacting zero and span potentiometers under its label for quick loop calibration. Its non-isolated "PROX OUT" and "COM" terminals, plus a coaxial connector, supply a dynamic vibration and gap voltage signal for advanced diagnostics. Additional functions like a Test Input pin for loop verification and a Power-up Inhibit circuit help prevent signal errors due to voltage transients.

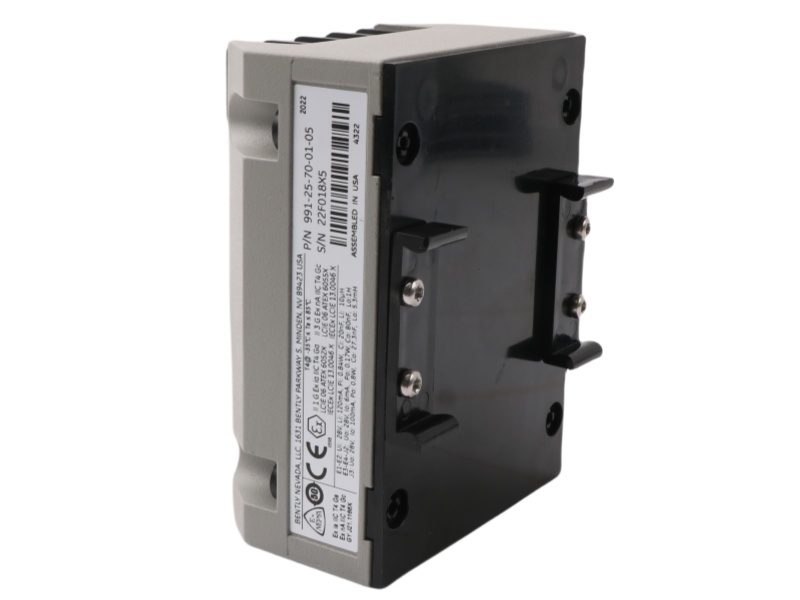

The Sensor Proximity Bently Nevada 991-25-70-03-05 supports flexible installation with standard DIN clips and screws, and its potted construction withstands up to 100% condensing humidity. Certified with CSA Division 2, ATEX Zone 0 and Zone 2, and ABS maritime approvals, it’s perfectly suited for harsh environments. With a full-scale range of 25-0-25 mils, it ensures reliable thrust measurements even in compact compressor installations where space is limited.
