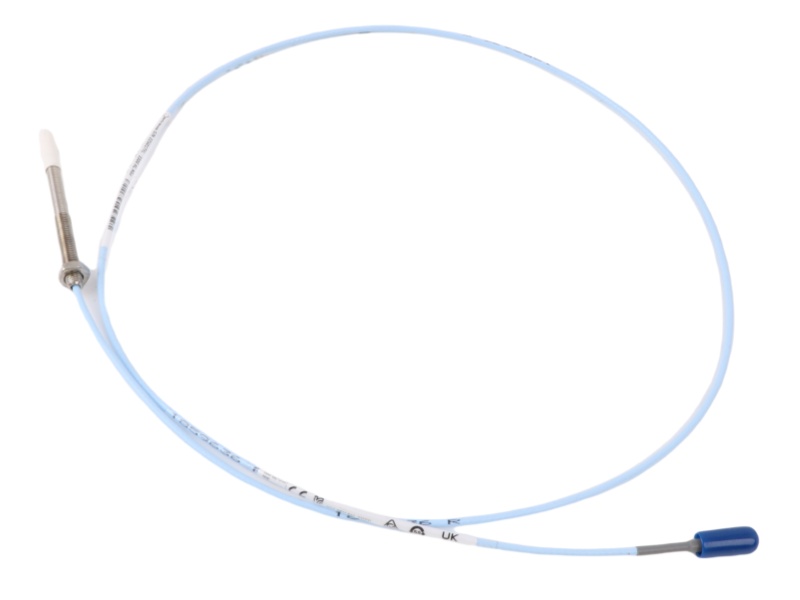

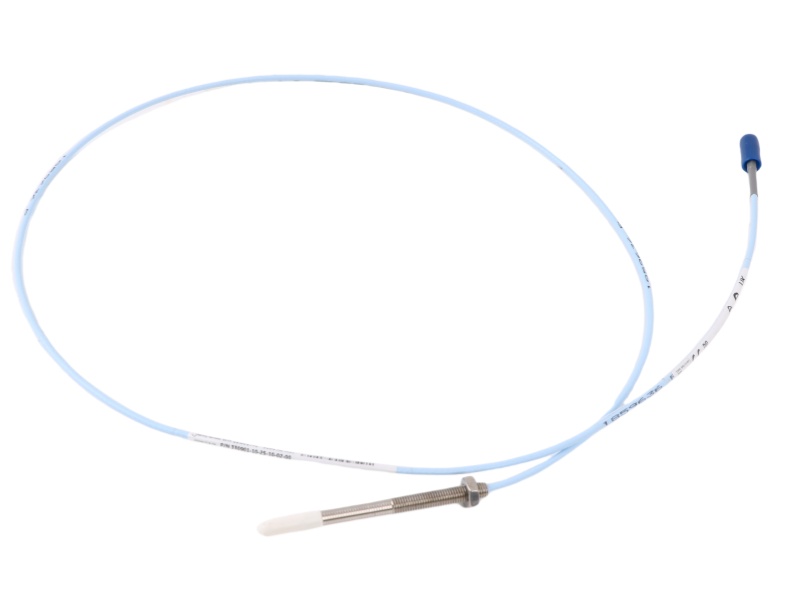

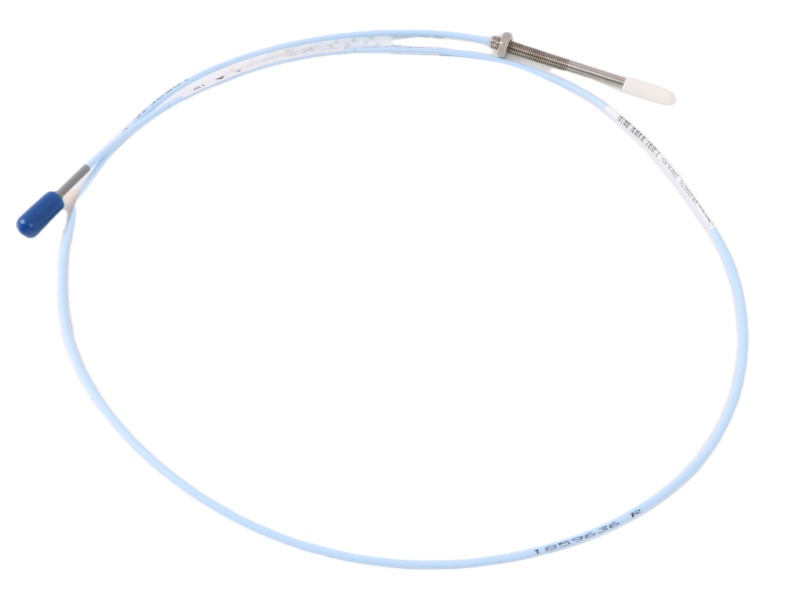

The Senser Probe 330901-16-24-10-02-05 Cable is a high-quality extension cable engineered to work seamlessly with the 3300 XL NSv Proximitor Sensor system. This cable supports input from a non-contacting 3300 RAM or 3300 NSv proximity probe, ensuring stable and accurate signal transmission in vibration monitoring applications. Bently Nevada 330901-16-24-10-02-05 is designed for use in environments where reliable performance and minimal signal distortion are critical for machine protection and diagnostics.

Operating within a voltage range of -17.5 Vdc to -26 Vdc, the Bently Nevada 330901-16-24-10-02-05 3300 XL 8mm Proximity Sensor maintains low power consumption at just 12 mA. When used with barriers, a more specific operating range of -23 Vdc to -26 Vdc is required. The cable's sensitivity is optimized for precision, offering less than a 2 mV change in output voltage per volt change in input, with an output resistance of 50 ohms.

The 3300 XL 8mm Proximity Sensor Bently Nevada 330901-16-24-10-02-05 offers robust electrical properties, including low dc resistance in the center conductor (0.220 Ω/m) and shield (0.066 Ω/m), and a typical capacitance of 69.9 pF/m. These features ensure minimal signal degradation over extended distances, making it suitable for installations up to 305 meters from sensor to monitor.

With its durable construction and excellent electrical characteristics, the 330901-16-24-10-02-05  Proximity Sensor BENTLY NEVADA provides outstanding reliability in demanding industrial environments. It ensures the accurate transfer of vibration data, playing a critical role in the performance of the 3300 XL NSv monitoring system.
