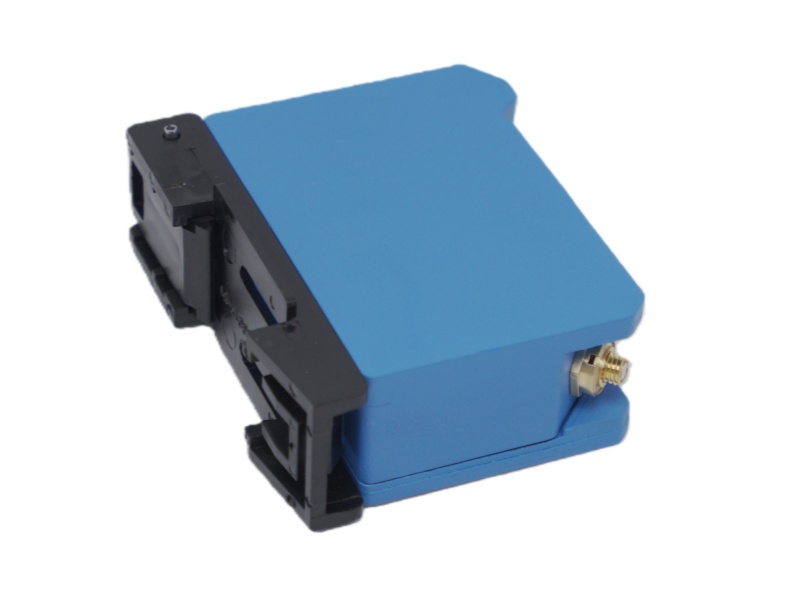

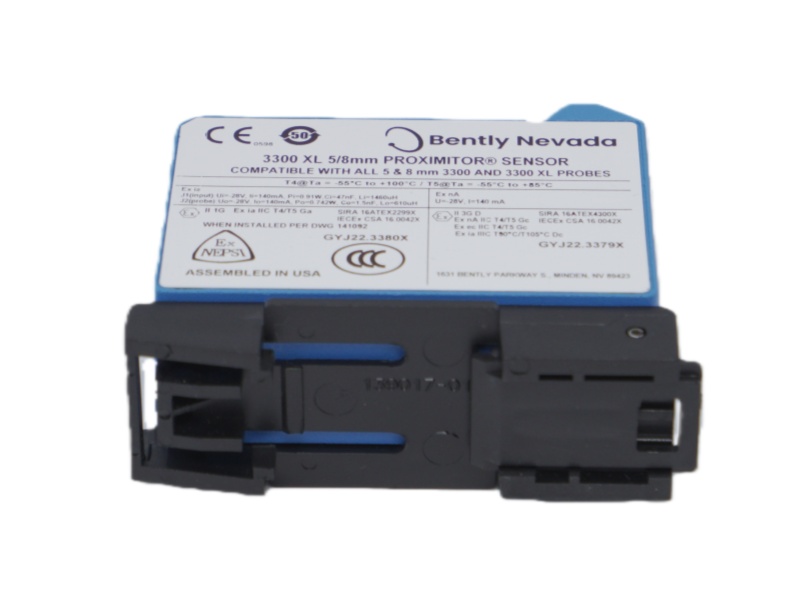

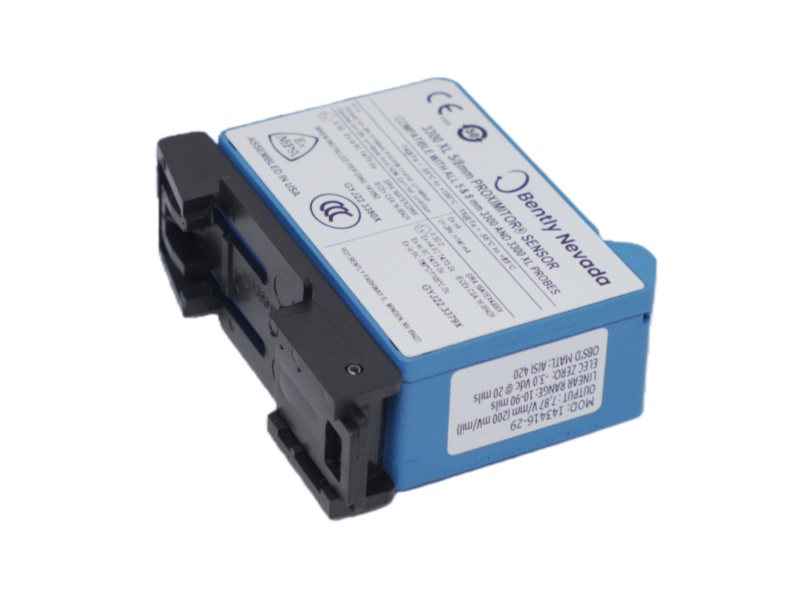

The 330180-X1-CN MOD 1450004-82 Bently Nevada 3300 XL Proximitor Sensor represents a sophisticated implementation of the 3300 XL 8 mm Proximity Transducer System, comprising three integral components: an 8 mm proximity probe, specialized extension cable, and a high-performance Proximitor sensor. This system generates precise voltage outputs that maintain direct proportionality to the gap distance between the probe tip and target surface, enabling simultaneous measurement of both static positional data and dynamic vibration characteristics. The engineering design of it ensures exceptional performance in critical monitoring applications across fluid-film bearing machinery, while also supporting essential Keyphasor reference and rotational speed measurements with industry-leading accuracy.

Manufactured in the United States with global distribution through authorized channels, the Proximity Transducer System330180-X1-CN MOD 1450004-82 Bently Nevada demonstrates full compliance with API 670 standards regarding mechanical configuration, linear range specifications, measurement accuracy, and thermal stability performance. The compact physical dimensions of 8.8×3.5×7 cm and lightweight construction at 0.25 kg facilitate straightforward installation in space-constrained environments, while multiple cable length options from 1.0 to 9.0 meters provide installation flexibility for various industrial configurations. These technical attributes make it particularly suitable for permanent installation in critical rotating equipment where reliable long-term monitoring is essential.

The electrical characteristics of the Bently Nevada 330180-X1-CN MOD 1450004-82 8 mm probe include a 50-ohm output resistance and premium connector materials utilizing gold-plated brass or beryllium copper contacts, ensuring stable signal transmission in electrically noisy industrial environments. The Proximitor sensor housing, constructed from A308 aluminum alloy, provides robust protection against environmental factors while maintaining optimal electromagnetic performance. This careful attention to material selection and electrical design in the Bently Nevada 330180-X1-CN MOD 1450004-82 guarantees consistent data accuracy essential for predictive maintenance programs and machinery protection strategies.

A distinctive advantage of this monitoring solution lies in its complete component interchangeability and backward compatibility with non-XL 3300 series transducers, including 5 mm and 8 mm systems. This interoperability eliminates the need for component matching or bench calibration, significantly reducing maintenance complexity and inventory requirements. The versatile design allows the extension cable Bently Nevada 330180-X1-CN MOD 1450004-82 to accommodate 5 mm probes in applications where spatial constraints preclude 8 mm probe installation, providing additional flexibility for retrofit projects and system upgrades across diverse industrial rotating equipment applications.
